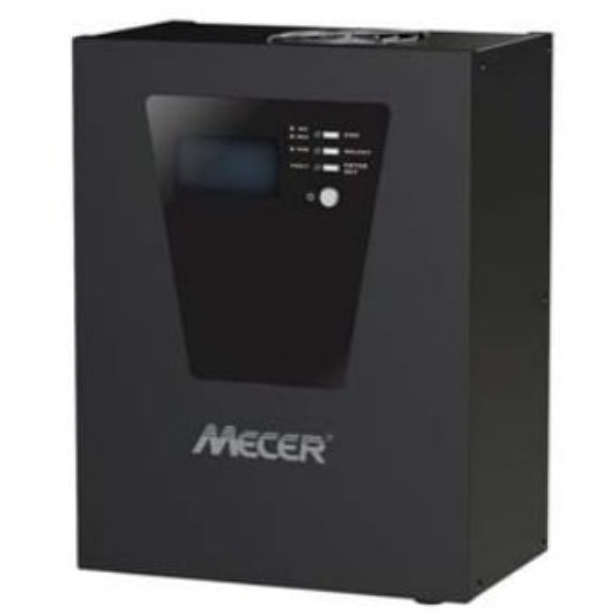

Mecer IVR-2400MPPT Solar Power Inverter
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Mecer IVR-2400MPPT 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 2x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery
Battery not included
Protection Full Protection: Overload, short circuit, polarity reserve protection
Nominal Capacity 2.4 kVA / 1800W
Nominal Voltage 230VAC
Input Voltage Range 90-280VAC
Input Frequency Range 50Hz / 60Hz (Auto Sensing)
Output Voltage Range 230VAC +- 10%
Output Frequency 50Hz
Output Waveform Modified Sine Wave
Rated Output Power Factor 0.75
Nominal DC Voltage 24 VDC
Maximum Charge Current 55
Battery Charge Voltage (VDC) 24
Efficiency to Battery Mode 85%
LCD Display Yes with information
Transfer Time 20ms typical
Environment Operating Temperature 0-40 Degrees Celcius
Environment Operating Humidity 0-90% Non-Condensing
