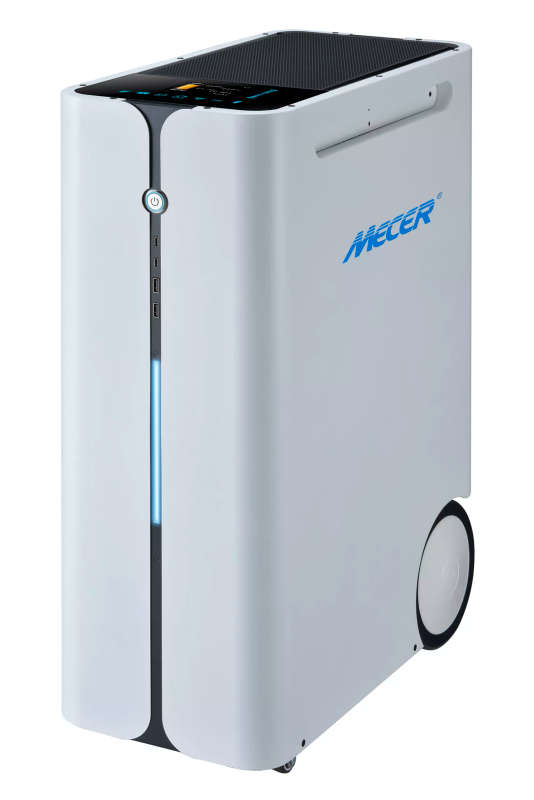

Mecer PEB 3kVA Mobile Power Bank with 2.5kWh LiPo Lithium Battery

Mecer PEB 3kVA Mobile Power Bank with 2.5kWh LiPo Lithium Battery ME-3000-PEB

Technical Specification

Rated Inverter Power: 3000VA / 3000W
Phase: Single phase

Input
Voltage: 220VAC/230 VAC/240VAC
Selectable Voltage Range: 170VAC~280VAC (Utility) ; 90VAC ~280VAC (Generator)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Max. Current and Protection: 20A, Circuit breaker build-in

Output
AC Voltage Regulation (Batt. Mode): 220VAC/230VAC/240VAC ± 5%
Surge Power: 6000VA
Efficiency (Peak): 93%
Transfer Time: 15ms ~ 20ms
Waveform: Pure Sine Wave
AC output socket: 3x RSA 3Pins Socket
Parallel port: 1x ( excluding Parallel cable)

USB Charger
DC Output ports: 2x Type A, 2x USB Type-C (comply with PD 3.0)
USB-A: 2x 18W (5V/3A,9V/2A)
USB-C: 2x 65W (5V/3A,9V/2A,20V/3.25A)

Solar & AC Charger
Solar Charger type: MPPT
Maximum PV Array Power: 3000W
Maximum PV Array Current: 13A
MPPT Range @ Operating Voltage: 60VDC ~ 400VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
Maximun AC charge current: 100A

Battery Module
Capacity: 2560Wh (LiFePO4)
Nominal Voltage: 25.6 VDC
Full Charge Voltage: 28.2 VDC
Full Discharge Voltage: 20.0 VDC
Max continuous Discharging Current: 120A
Max. Discharging Current: 200A
Protection: BMS with Over Voltage, over temperature,Over Current , Breaker
Lifecycle: 3500 cycles, 0.5C charging / discharging 80% @EOL 100% DoD

Interface
Function Keys: Touch PAD
Display: True Colour LCD + RGB LED
Communication: Wi-Fi
APP: i.Solar App free download from Google store

Physical
Dimension (D x W x H): 450 x 600 x 222 mm
Net Weight: 42kgs

Included Accessory

• 1x User Manual
• 1x AC input Power Cord - C19
• 2x Cable Gland
• 2x Caster Stopper
