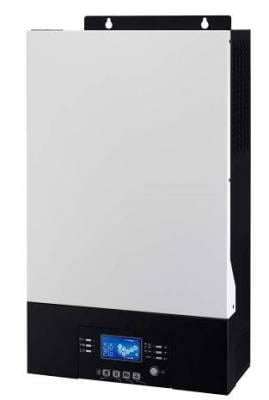

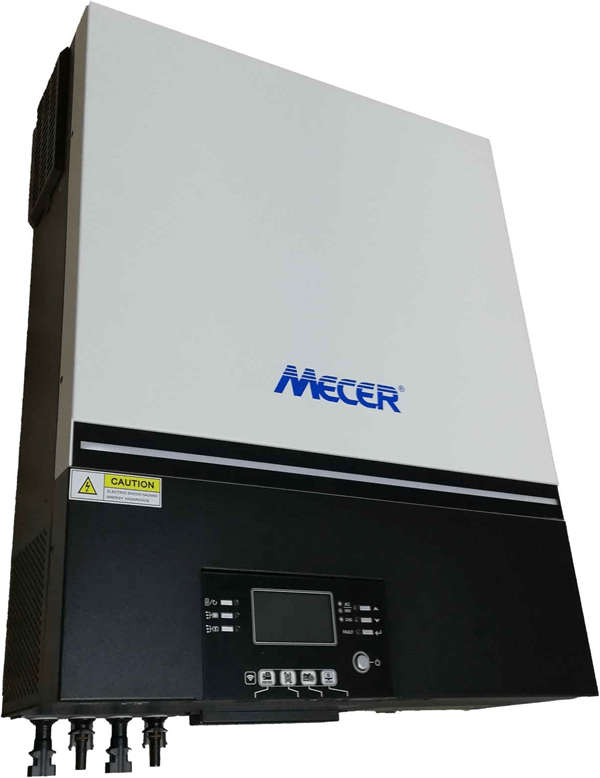

MECER 8kW Axpert MAX is a high performance off-grid inverter with 120A MPPT solar charger and customizable status bar LED bar with RGB lights.
If the 8000W is not enough for you, then the MAX can parallel up to 6 units in a single or 3-phase configuration for a total of 48000kW.
Features
Customizable status LED bar with RGB breathing lights.
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
Supports USB On-the-Go function.
Reserved communication port for BMS (RS485, CAN-BUS or RS232).
Replaceable fan design for ease of maintenance.
Battery independent function.
Enhanced AC/Solar charger to 120A.
Built-in anti-dust kit.
Parallel operation up to 6 units.
Specifications
Model: SOL-I-AXMAX-8K48V.
Rated Power: 8000VA/8000W.
Parallel Capability: Yes, 6 units.
Input
Voltage: 230 VAC.
Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
Frequency Range: 50 Hz/60 Hz (Auto sensing).
Output
AC Voltage Regulation (Batt. Mode): 230VAC 5%.
Efficiency (Peak): 90% ~ 93%.
Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
Waveform: Pure sine wave.
No Load Power Consumption: <70W.
Efficiency
Battery Voltage: 48 VDC.
Floating Charge Voltage: 54 VDC.
Overcharge Protection: 66 VDC.
Solar Charger & AC Charger
Solar Charger Type: MPPT.
Maximum PV Array Power: 8000W (4000W x 2).
MPP Range @ Operating Voltage: 90 ~ 450 VDC.
Maximum PV Array Open Circuit Voltage: 500 VDC.
Number of MPP Trackers: 2.
Maximum Solar Charge Current: 120 A.
Maximum AC Charge Current: 120 A.
Maximum Charge Current: 120 A.
Physical
Dimension, D x W x H (mm): 147.4 x 432.5 x 553.6.
Net Weight (kgs): 18.4.
Communication Interface: USB/RS232/RS485/Wifi/Dry contact.
IP Rating: IP21.
Environment
Altitude: 1000m and de-rate by 1% for every 100m above 1000m.
Humidity 5% to 95% Relative Humidity (Non-condensing).
Operating Temperature: -10C to 50C (with over-temp protection in case inner component temperature reaches protection level.).
Storage Temperature: -15C to 60C.
