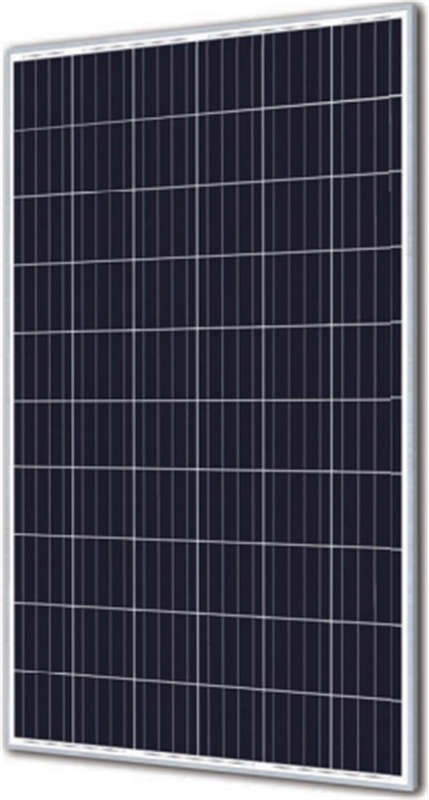

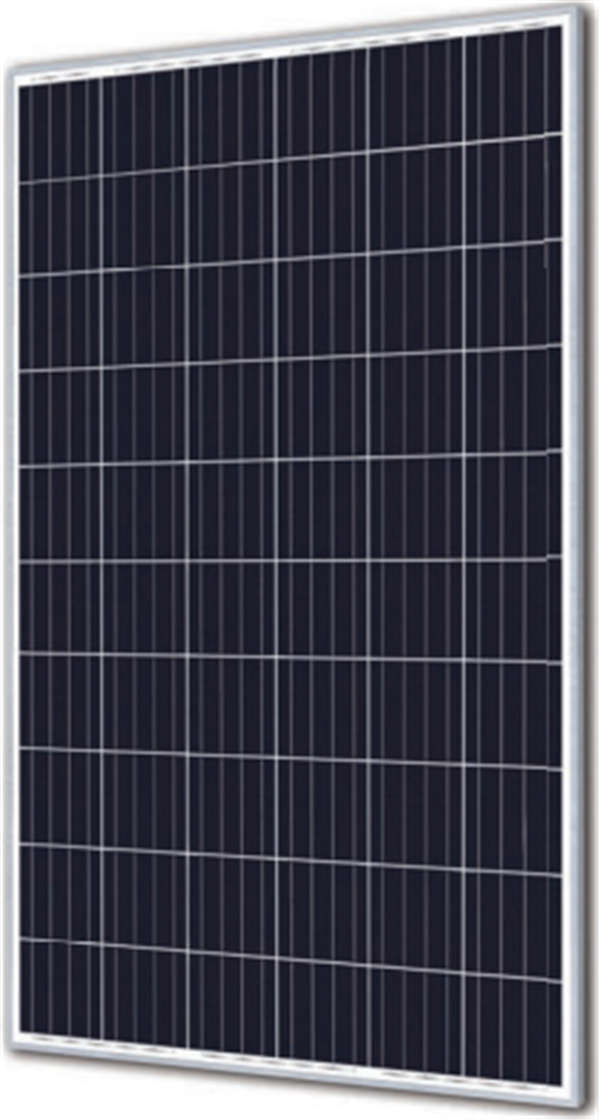

Mecer - Solar 275W PV Module

Mecer - Solar 275W PV ModuleProduct Characteristics:- Widely using of the most popular and mature type of modules for on-grid system.- Leading manufacturing technology in PV industry, strictly controlling the quality of raw materials and the process of producing.- 100% EL inspection, ensures modules are defects free.- Cells binned by current to improve module performance.- Outstanding performance in low-light irradiance environments.- Excellent mechanical load resistance: Certified to withstand high wind loads (2400pa) and snow loads (5400pa)- High salt and ammonia resistance.- Positive power tolerance: 0-+5w Mechanical Parameters:Type of cells (mm): mono156.75 x 156.75No. of cells and connections: 6 x 10 = 60Dimensions (mm): 1640 x 992 x 35 (L x W x H)Weight (kg): 17.9 / 18.2Glass: 3.2mm Tempered GlassEncapsulation: EVABacksheet: Multilayer compositeAluminium frame: Silvery/Black Anodized aluminium alloyJunction-box: IP65/IP67Cable: 4mm² , 900mmConnector: MC4 and MC4 compatiblePackage configuration: 30pcs/pallet40GP: 840pcs (30/pallet) 728pcs (26/pallet)40HQ: 896pcs (30/pallet) 784pcs (26/pallet) Performance Parameters:Maximum system voltage: 1000vOperating temperature: -45~+80CMaximum series fuse: 10AMaximum static load, front side (ex. Snow, Wind): 5400PaMaximum static load, back side (ex. Wind) 2400PaApplication Grade: Class AElectrical Parameters (Standard Test Condition):Rated maximum power (Mp): 275WPower tolerance: 0- +5WModule Efficiency: 16.90%Open Circuit Voltage (Voc): 38.5VMaximum power current (Imp): 8.81ATemperature coefficient of Isc: +0.06%Temperature coefficient of Voc: -0.32%Temperature coefficient of Pmp: -0.45%Standard test condition: Irradiance: 1000W/M2, Cell Temperature: 25C, Spectrum AM: 1.5 NOTE: A qualified electrician must install the unit
