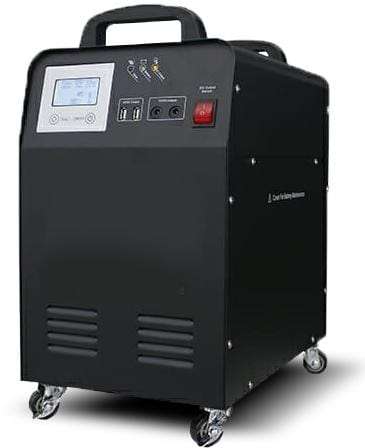

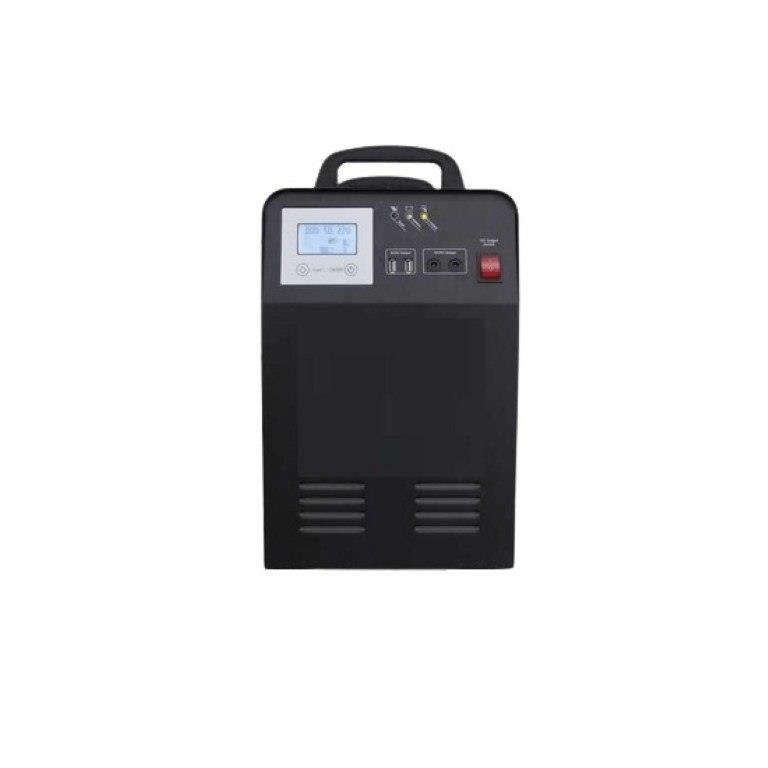

Mecer Solar Home System 1000W 100A Battery Charge Controller SOL-I-CN-1

Mecer Solar Home System 1000W 100A Battery Charge Controller SOL-I-CN-1

Features

• Excellent performance because of double CPU intelligent control technology
• A wide range of applicable loads because of pure sine wave AC output
• The mains supply mode/energy-saving mode/battery mode can be set for flexible
• Convenient and practical 5VDC-USB output port and 12VDC output port
• Digital LCD and LEDs for visualization of operation status of the equipment
• Overcharge protection and over discharge protection for a longer battery life
• Safe and reliable with intelligent exhaust fan control
• Overall automatic protection and alarms including AC output overload protection, short circuit protection, etc.

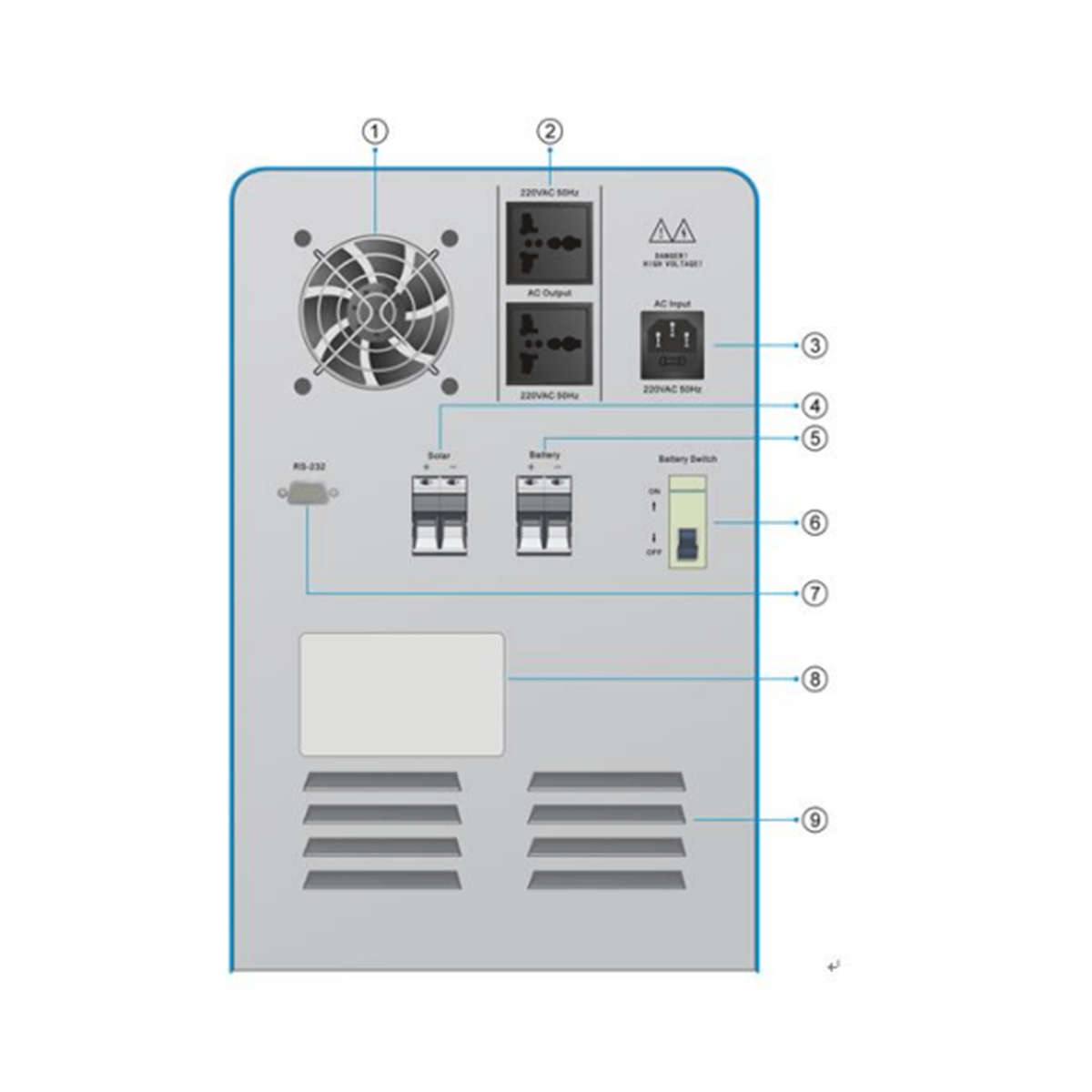

Technical Specification

• 1x Fan
• AC Output (Max. 10A)

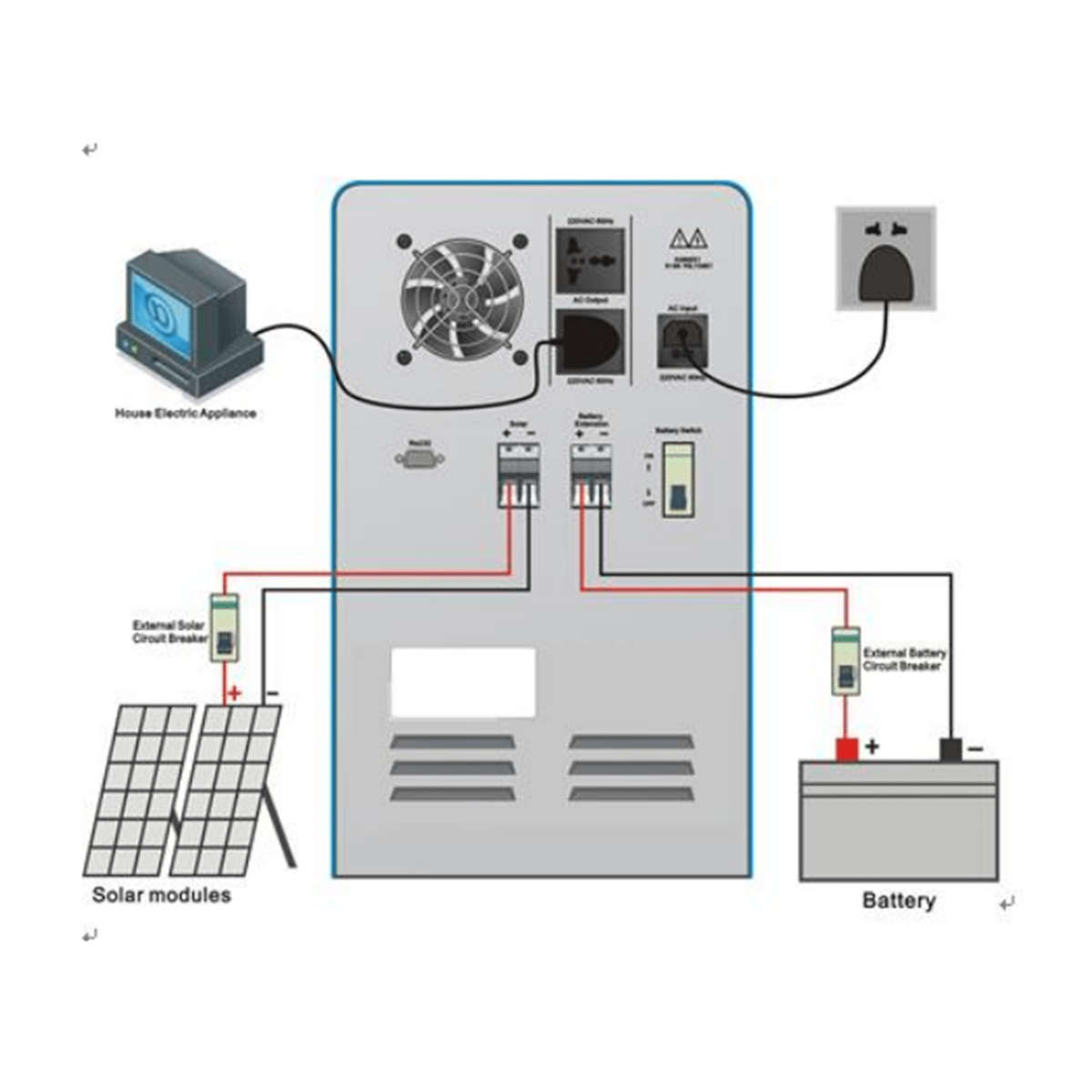

• AC Input
• Solar: Solar module input terminals
• Battery: External battery input terminals(selectable)
• Battery Switch: built-in battery switch
• RS232 communication port
• Model stickers
• Heat dissipation window

Technical Data:

• Model: BT-1000W
• Battery rated voltage(VDC): 12

Inverter

• Rated power(W): 1000W
• Input voltage range(VAC): 160-275VAC
• Input frequency(Hz): 45Hz-65Hz
• Output voltage(VAC): 110VAC/220VAC
• Output frequency(Hz): 50Hz/60Hz
• Output wave: Pure Sine Wave
• Specification of built-in battery: 1*100AH/12V
• Communication: RS232

Solar Input

• Max. PV voltage(VDC): 25
• Range of charging voltage(VDC): 10-25
• Controller rated charge current(A): PWM 30A
• Voltage for overcharge protection(VDC): 14.2
• Voltage for overcharge recovery(VDC): 14.0
• Solar input power range: 150W/180W two pcs in parallel

DC Output

• Voltage for high voltage protection(VDC): 16V
• High voltage recovery voltage(VDC): 15.2V
• Low voltage recovery voltage(VDC): 12.6V
• Low voltage protection voltage(VDC): 11
• 5VDC USB output 2units /MAX 2A
• 12VDC output ports 2units/MAX 2A
• Heat dissipation/Cooling: Temperature control by intelligent exhaust fan
• Operating ambient temperature -20 - +50âƒ
• Storage ambient temperature -25 - +55âƒ
• Operating/Storage ambient 0-90% No condensation
• External size：W*D*Hï¼mmï¼ 423×260×453
• Package size：W*D*Hï¼mmï¼ 520×370×520

What's in the box

• 1 x Mecer Portable Solar System 1000W 100A Battery Charge Controller
• Come with only SA plug system
• *Product images are for illustration purposes only.
