IVR-1200MPPT

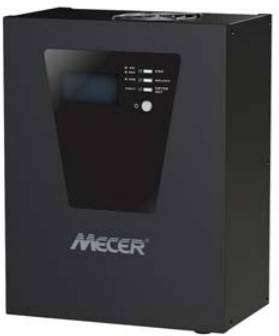

Mecer 1200VA 1000W 12V DC-AC Inverter with LCD Display & MPPT built in
Mecer IVR-1200MPPT 1200VA 1000W 12V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 1x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery
Mecer 1200VA / 1000W 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-1200MPPT
Nominal Output Voltage 220-240 VAC
Voltage Regulation (Batt. Mode) +/-10%
Output Frequency Range 50/60Hz
Nominal Output Current 5.2A
Inrush Current 10A
Maximum Output Fault Current 6.9A
Transfer Time 20 ms typical
Waveform Simulated Sine Wave
Battery:
Battery Voltage 12 VDC
Maximum Battery Discharging Current 100A
Floating Charge Voltage 13.7 VDC +-0.5 VDC
CV Charging Voltage
Lead Acid Battery 14.3 VDC +-0.5 VDC
Lithium Battery 14.6 VDC +-0.5 VDC
Cut Off Voltage 10.5 VDC +-0.5 VDC
Maximum AC Charging Current 10 A or 25 A
Solar Charger:
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 100 VDC
MPP Range @ Operating Voltage 15 ~ 80 VDC
Max. PV array Input Power 825W
Max. PV array Power to support 660W
Maximum Solar Charging Current 55 A
Maximum Charging Current (Utility +SCC) 55 A
Physical:
Dimension (DxWxH) mm 272 x 212 x 127
Net Weight (kgs) 4.5
Protective Class I
Ingress Protection Rating IP20
Environment:
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature 0 ~ 55degC
Altitude 0 ~ 1000 m

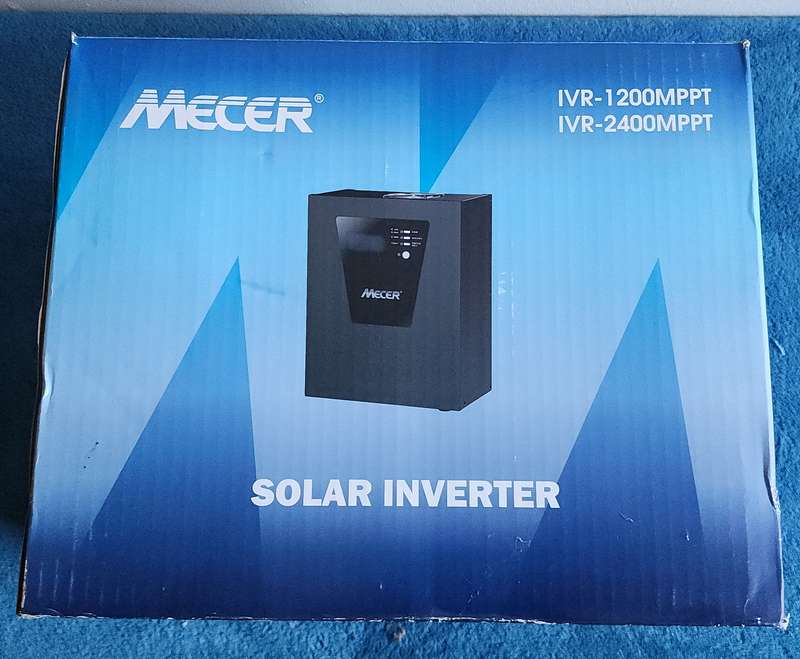

What's in the box
1 x Mecer 1200VA, 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-1200MPPT
