Product details

Condition
New
Location
South Africa
Product code
1140
Bob Shop ID
566003238

New and sealed

Features

Simulated sinewave inverter

Wide input voltage range

Overload and short circuit protection

LCD display for comprehensive information

MPPT

Specifications:

Model: IVR-1200MPPT

Capacity: 1200VA / 1000W

Power Factor: 0.83

Input:

Voltage 220-240 VAC

Voltage Range 90-280 VAC

Nominal Operating Frequency 50/60Hz

Maximum Input Current 10A

Output:

Nominal Output Voltage 220-240 VAC

Voltage Regulation (Batt. Mode) +/-10%

Output Frequency Range 50/60Hz

Nominal Output Current 5.2A

Inrush Current 10A

Maximum Output Fault Current 6.9A

Transfer Time 20 ms typical

Waveform Simulated Sine Wave

Battery:

Battery Voltage 12 VDC

Maximum Battery Discharging Current 100A

Floating Charge Voltage 13.7 VDC +-0.5 VDC

CV Charging Voltage

Lead Acid Battery 14.3 VDC +-0.5 VDC

Lithium Battery 14.6 VDC +-0.5 VDC

Cut Off Voltage 10.5 VDC +-0.5 VDC

Maximum AC Charging Current 10 A or 25 A

Solar Charger:

Solar Charger Type MPPT

Maximum PV Array Open Circuit Voltage 100 VDC

MPP Range @ Operating Voltage 15 ~ 80 VDC

Max. PV array Input Power 825W

Max. PV array Power to support 660W

Maximum Solar Charging Current 55 A

Maximum Charging Current (Utility +SCC) 55 A

Physical:

Dimension (DxWxH) mm 272 x 212 x 127

Net Weight (kgs) 4.5

Protective Class I

Ingress Protection Rating IP20

Environment:

Humidity 0 ~ 90% RH (No condensing)

Operating Temperature 0 ~ 55degC

Altitude 0 ~ 1000 m

What's in the box

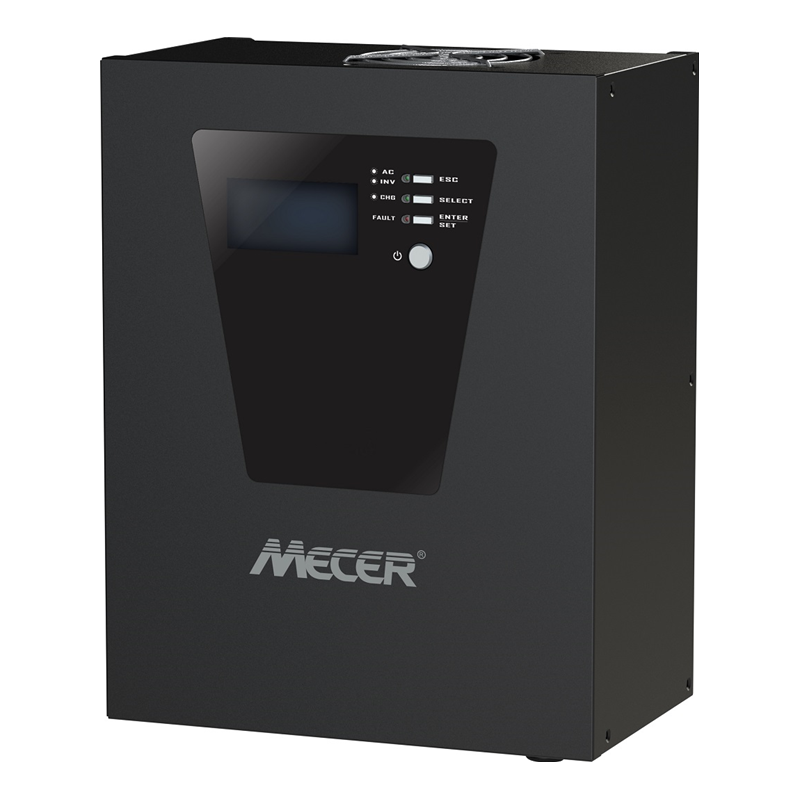

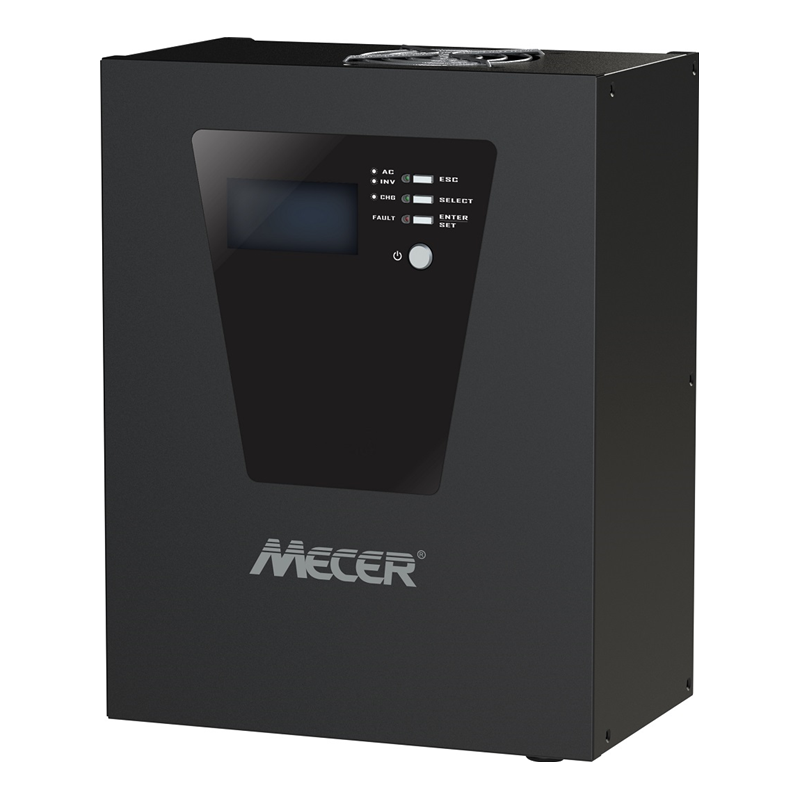

1 x Mecer 1200VA, 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-1200MPPT
