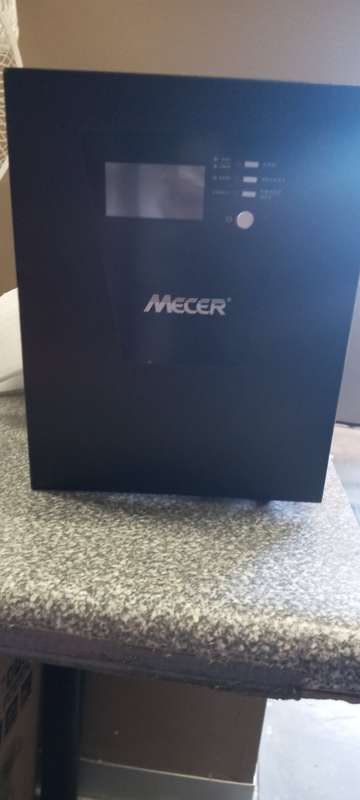

Mecer Solar Inverter

Secondhand

Only been a demo for a month

Features

Simulated sinewave inverter

Wide input voltage range

Overload and short circuit protection

LCD display for comprehensive information

MPPT

Specifications:

Model: IVR-1200MPPT

Capacity: 1200VA / 1000W

Power Factor: 0.83

Input:

Voltage 220-240 VAC

Voltage Range 90-280 VAC

Nominal Operating Frequency 50/60Hz

Maximum Input Current 10A

Output:

Nominal Output Voltage 220-240 VAC

Voltage Regulation (Batt. Mode) +/-10%

Output Frequency Range 50/60Hz

Nominal Output Current 5.2A

Inrush Current 10A

Maximum Output Fault Current 6.9A

Transfer Time 20 ms typical

Waveform Simulated Sine Wave

Battery:

Battery Voltage 12 VDC

Maximum Battery Discharging Current 100A

Floating Charge Voltage 13.7 VDC +-0.5 VDC

CV Charging Voltage

Lead Acid Battery 14.3 VDC +-0.5 VDC

Lithium Battery 14.6 VDC +-0.5 VDC

Cut Off Voltage 10.5 VDC +-0.5 VDC

Maximum AC Charging Current 10 A or 25 A

Solar Charger:

Solar Charger Type MPPT

Maximum PV Array Open Circuit Voltage 100 VDC

MPP Range @ Operating Voltage 15 ~ 80 VDC

Max. PV array Input Power 825W

Max. PV array Power to support 660W

Maximum Solar Charging Current 55 A

Maximum Charging Current (Utility +SCC) 55 A

Physical:

Dimension (DxWxH) mm 272 x 212 x 127

Net Weight (kgs) 4.5

Protective Class I

Ingress Protection Rating IP20

Environment:

Humidity 0 ~ 90% RH (No condensing)

Operating Temperature 0 ~ 55degC

Altitude 0 ~ 1000 m

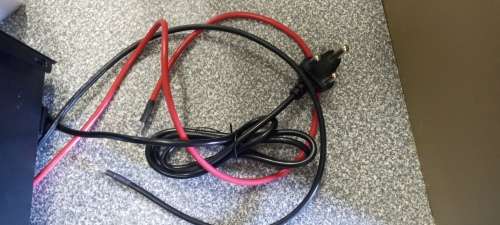

What's in the box

1 x Mecer 1200VA

12V Inverter With MPPT Solar Charger

Lithium And Lead Acid Battery Controller - IVR-1200MPPT
