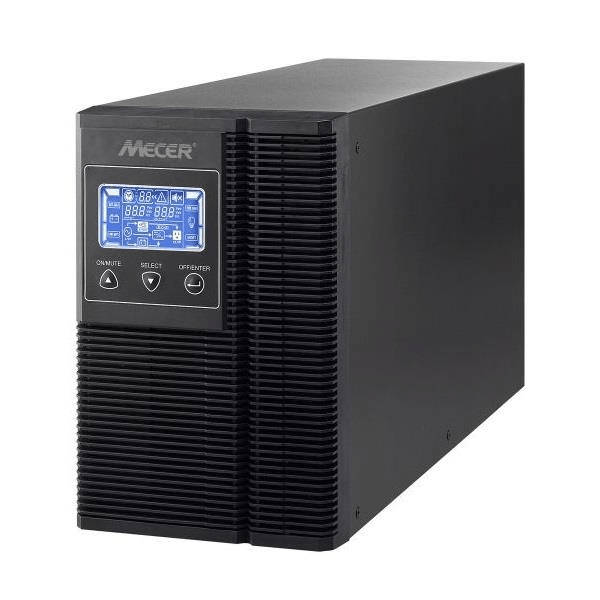

Mecer Winner Pro 10000VA On-Line Tower UPS - ME-10000-WPTU - Mecer 1kg

MODEL:ME-10000-WPTU
PHASE:Single phase with ground
CAPACITY:10000VA / 8000W

(with AVR,Monitoring Software + Cable & Built-in Surge Protection) - Black

INPUT

Voltage Range
Low Line Transfer:176 VAC ± 3% @ 100% load,110 VAC ± 3% @ 50% load
Low Line Comeback:186 VAC ± 3% @ 100% load,120 VAC ± 3% @ 50% load
High Line Transfer:300 VAC ± 3%
High Line Comeback:290 VAC ± 3%
Frequency Range:46~54 Hz or 56~64 Hz
Power Factor:≧ 0.99 @ 100%load

OUTPUT

Output Voltage:208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode):± 1%
Frequency Range (Synchronized Range):46~54 Hz or 56~64 Hz
Frequency Range (Batt. Mode):50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio:3:1

Transfer Time
AC Mode to Batt. Mode:Zero
Inverter to Bypass:Zero
Waveform (Batt. Mode): Pure Sinewave
Harmonic Distortion:≦ 3 % THD (Linear Load),≦ 5 % THD (Non-linear Load)

EFFICIENCY
AC Mode:93%
Battery Mode:91%

BATTERY
Battery Type:12 V / 9 Ah
Numbers:16
Typical Recharge Time:9 hours recover to 90% capacity
Charging Current (max.):1.0 A / 2.0 A (adjustable)
Charging Voltage:218.4 VDC ±1%

INDICATORS
LCD Panel:UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

ALARM
Battery Mode:Sounding every 4 seconds
Low Battery:Sounding every second
Overload:Sounding twice every second
Fault:Continuously sounding

PHYSICAL
Dimension, D x W x H (mm):442 x 190 x 688
Net Weight (kgs):66

ENVIRONMENT
Humidity:0-95 % RH @ 0- 40°C (non-condensing)
Noise Level:Less than 58dB @ 1 Meter

MANAGEMENT
Smart RS-232/USB:Supports Windows 2000/2003/XP/Vista/ 2008, Windows 7/8, Linux, Unix, and MAC
Optional SNMP:Power management from SNMP manager and web browser

NOTE 1: Derate to 80% of capacity in CVCF mode or when the output voltage is adjusted to 200/208VAC.
NOTE 2: If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m.
