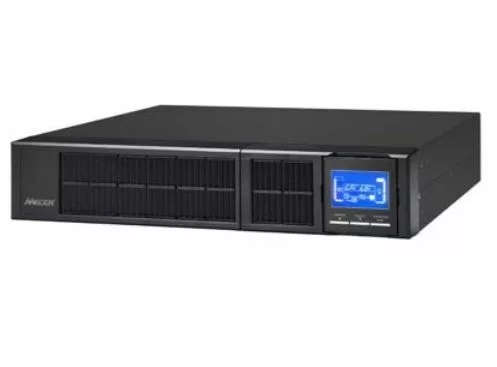

Mecer Winner Pro 1000VA 2U On-Line Rack-Mount UPS PF 0.8 ME-1000-WPRU
The Mecer Winner Pro 1000VA 2U On-Line Rack-Mount UPS (Uninterruptible Power Supply) is a device designed to provide continuous and reliable power to connected equipment, ensuring that critical systems remain operational even during power disturbances.
Features
- True double-conversion online UPS
- Wide input voltage range (110-300 VAC)
- Input power factor correction 0.99
- Output power factor 0.8
- Converter mode available
- ECO mode operation for energy saving (only available for 1-3KVA)
- Hot-swappable battery design only available for 1-3KVA
- Generator compatible
- Adjustable charging current via LCD or software (1A - 6A)
Technical Specification
Product: ME-1000-WPRU
Phase: Single phase with ground
Capacity: 1000 VA / 800 W
Input
Voltage Range
Low Line Transfer:
- 160 VAC/140 VAC/120 VAC/110 VAC ± 5% (Ambient Temp.<35°C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
Low Line Comeback:
- 175 VAC /155 VAC/ 135 VAC /125 VAC± 5 % (Ambient Temp.<35°C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
High Line Transfer: 300 VAC ± 5 %
High Line Comeback: 290 VAC ± 5 %
Frequency Range: 40Hz ~ 70 Hz
Power Factor: > 0.99 @ nominal voltage
Output
Output Voltage: 200/208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode): ± 1%
AC Voltage Regulation (Batt. Mode): ± 1%
Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
Current Crest Ratio: 3:1
Transfer Time
AC Mode to Batt. Mode: 0
Inverter to Bypass: 4 ms (Typical)
Waveform (Batt. Mode): Pure Sinewave
Battery
Battery Type: 12 V / 9 Ah
Numbers: 2
Typical Recharge Time: 4 hours recover to 90% capacity
Charging Current (max.): 1 A
Charging Voltage: 27.4 VDC ± 1%
Indicators
LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Management
Smart RS-232/USB: Supports Windows 2000/2003/XP/Vista/ 2008, Windows 7/8, Linux, Unix, and MAC
SNMP: Optional
