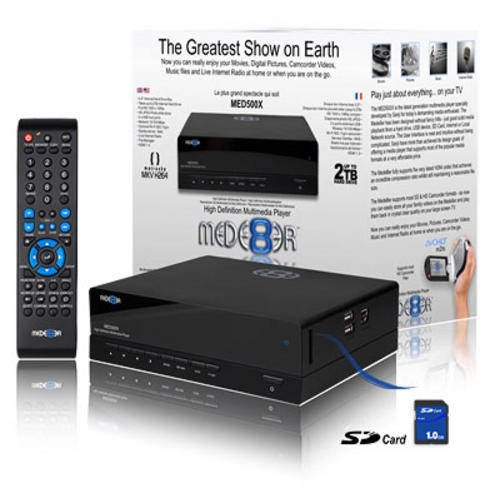

The MED500X is the latest generation Multimedia Player specially developed by Sanji for todayâÂÂÂÂs demanding media enthusiast. The Mede8er has been designed for good solid media playback from a hard drive, USB device, SD Card, Internet or Local Network source. The User Interface is neat and intuitive without being complicated.
Sanji have more than achieved its design goals of offering a media player that supports most of the popular media formats at a very affordable price. The Mede8er fully supports the very latest MKV-H264 codec that achieves an incredible compression ratio whilst still maintaining a reasonable file size.
Specifications
Processor: Realtek RTD1073 - 16M SPI Flash - 128MB DDR2 SDRAM
Video Codec Supported: MKV, H264, DVD (VOB - IFO - ISO), DIVX, XVID, DAT, AVI, MPEG, HD MPEG-2, TS, HD MPEG-4, SP, ASP, AVCD (H.264), MTS, M2ts, WMV9, FLV, VC-1, Real Networks (RM/RMVB) 8/9/10, up to 720p
Audio Codec Supported: MP3, MP2, OGG Vorbis, PCM, LPCM, AAC, RA, Dolby AC3 Passthrough, Dolby AC3 Downmix, DTS Passthrough, DTS Downmix, FLAC, WAV,
WMA Standard (DRM, & Advanced Profile not supported)
HD Audio support
Dolby digital - support decode & bypass
Dolby TrueHD - not supported -- under development
Dolby digital Plus - support decode - bypass is in testing
Dolby digital EX - support - compatible up to 5.1
Dolby digital Pulse - not supported
DTS digital Surround - support decode & bypass
DTS-HD Master Audio - not supported - under development
DTS-ES - not supported
Photo format Supported: JPEG, BMP
File System Supported: FAT32, NTFS - UI Format Feature
Input / Output
⢠HDMI 1.3, Component video, Composite Video
⢠Stereo RCA audio for analog audio connection
⢠SD / Sony Pro Duo Card Slot
⢠S/PDIF optical Output / Coaxial Digital RCA Output
⢠Video output resolution - NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p, 1080p24hz
⢠USB - 2.0 HOST port x 2 (compatible to USB 1.1)
⢠USB - 2.0 SLAVE port
General
⢠3.5" SATA Internal Hard Drive Bay up to 2TB compatible
⢠Built in 40mm cooling fan - TPE mounts for low noise
⢠Playlist creation from remote
⢠Built in NFS Client
⢠Screensaver â Selectable in GUI setup
⢠In folder JPEG preview feature
⢠Easy navigation button use (excl DVD files)
⢠Time Bar FF/FR and Time Bar jump
⢠Media Library Jump To file number feature
⢠Resume playback feature
⢠Photo slide show with background music
⢠Network - Ethernet 10/100 Mbps - Streaming MAX Samba 26Mbps / NFS 36Mbps
⢠Optional Wi-Fi (802.11b/g/n)
Achievable Streaming G router - Samba 12Mbps - NFS 18 Mbps @ 1m - unprotected
Achievable Streaming N router - Samba 14Mbps - NFS 22 Mbps @ 1m - unprotected
(Typical MKV 720p Play 10Mbps max FF/RW 15Mbps)
⢠Samba server - NAS storage
⢠A/V streaming via UPnP Media Server (CNN - YouTube etc via optional program such as PlayOn, Tversity etc)
⢠Internet Radio (SHOUTcast)
⢠File Copying - Card, USB, HDD and Network
⢠Subtitle: SRT, SSA, SUB, SMI format
In The Box?
MED500X, RC, AC Adapter, Cables - AV, HD HDMI, USB, Component, USB extension with Base
- No Hard Drive Included
