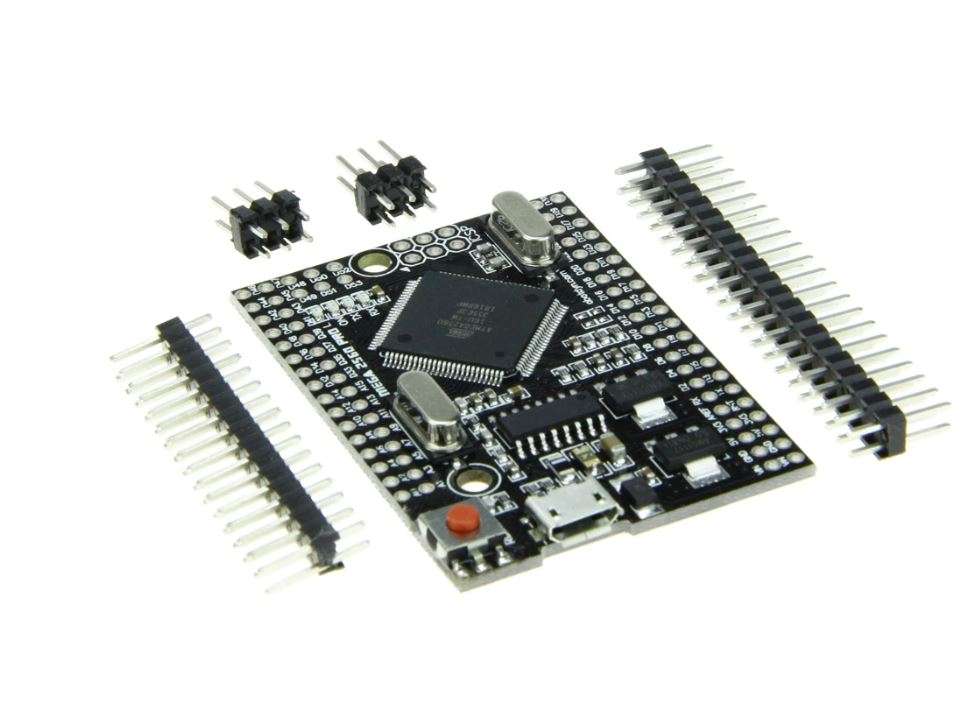

Mega 2560 Pro ATmega 2560-16AU USB CH340G Smart Development Board

Mega 2560 Pro ATmega 2560-16AU USB CH340G Smart Development Board

Product Description

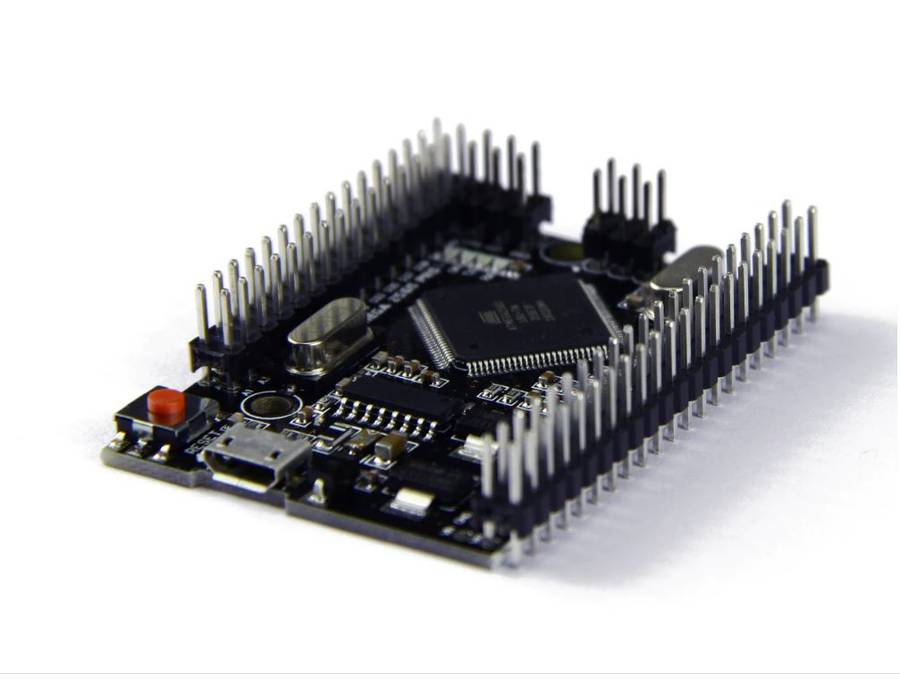

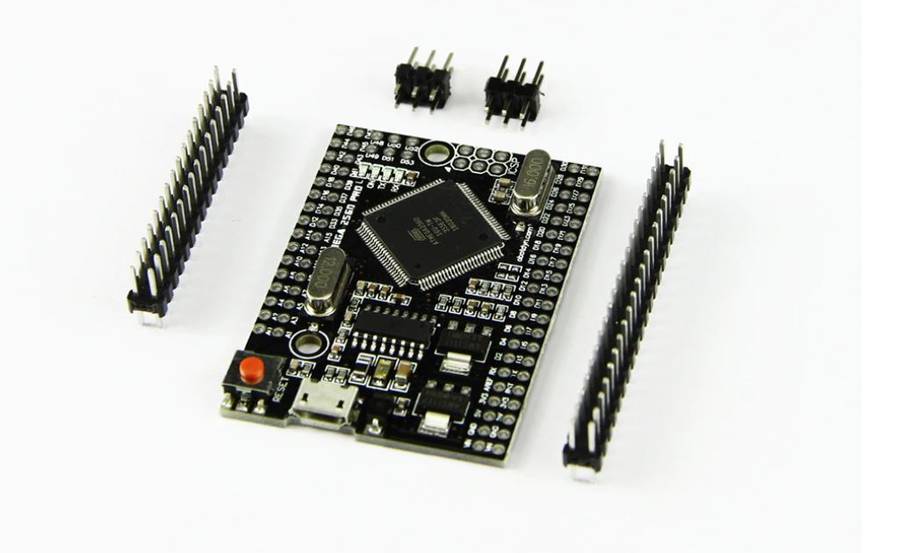

This is the Embedded version Mega 2560 Ch340g/atmega2560-compatible with UNO Mega 2560 motherboard. Built based on Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

The size of the circuit board is compact and 38x55mm. This is a good solution to make your final project on the welding prototype board.

The motherboard function is similar to the Mega 2560. It is an embedded motherboard, but it is equally stable and uses the original chip ATmega2560 (MHz).

The board uses the chip CH340G as the converter UART-USB. When you work at a frequency of 12 MHz, provide stable data exchange results(you need to install drivers to computers).

Mega PRO (embedded) 2560 Ch340g/atmega2560-Connect to your computer via a micro-USB cable (for almost all Android smartphones).

You can power the circuit board with a MicroUSB connector or power the pin. The voltage regulator(LDO) can handle the input voltage of 6V to 9V(peak 18V) DC. The output current is 5V-about 800mA, 3.3 V-about 800mA(note that the higher the input voltage, the lower the output current). This will provide the reliable impetus for most of your initial projects.

Please note: Locally Stocked. Available for Immediate Shipping!
