Mega ADK R3 ATmega2560 Development Board Module With USB Cable

Mega ADK R3 ATmega2560 Compatible Google ADK With USB Cable

Description:

This compatible Mega ADK is based on the Mega 2560. Similar to the Mega 2560 and UNO, it features an ATmega8U2 programmed as a USB-to-serial converter. Mega ADK can be connected to a large number of sensors and application modules. The Mega ADK is compatible with Google ADK. Mega ADK can use Google's ADK to develop, and run on Android 2.3.4 or Android 3.1.

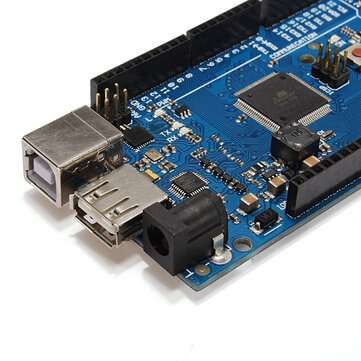

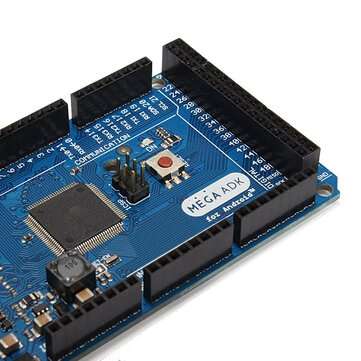

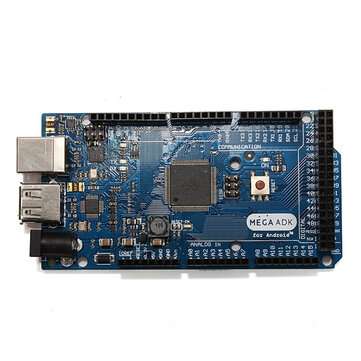

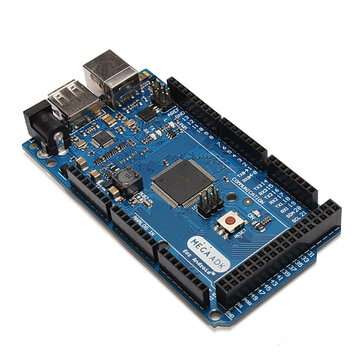

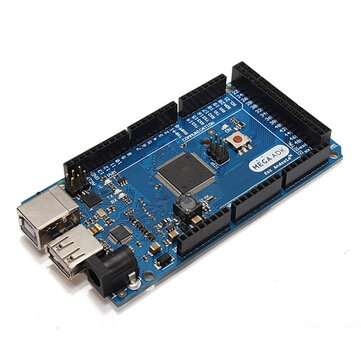

The Mega ADK is a microcontroller board based on the ATmega2560. It has a USB host interface to connect with Android based phones, based on the MAX3421e IC. Mega ADK has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

Specification:

Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 54(of which 15 provide PWM output)
Analog input pins: 16
DC current per I / O pin: 40mA
DC current for 3.3V pin: 50mA
Flash memory: 256KB of which 8KB used by bootloader
SRAM: 8KB
EEPROM: 4KB
Clock speed: 16MHz

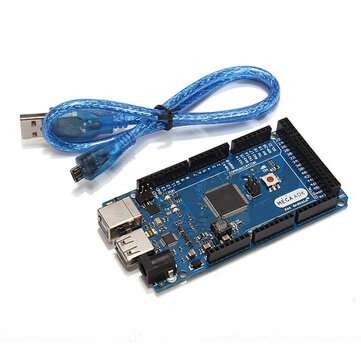

Package included:

1 x Compatible Mega ADK R3

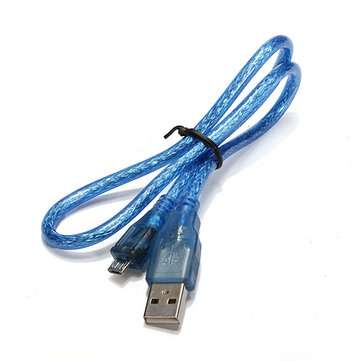

1 x USB cable
