Mega2560 PRO MINI Module 5V ATmega2560-16AU Development Board Robotdyn for Arduino - products that w

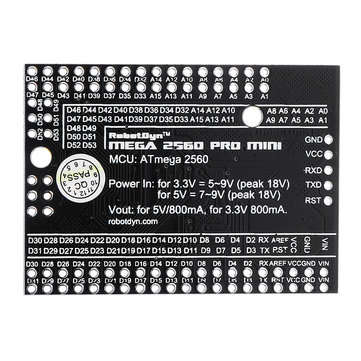

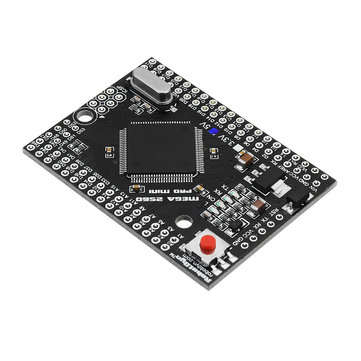

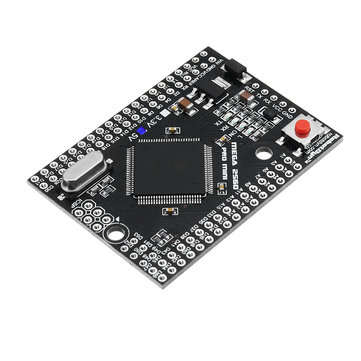

Feature: ? Model Number: MEGA-PROMINI-ATmega2560 Is_customized: Yes Form-factor: Mega PROMINI Microcontoller: ATmega2560 (16Mhz) Vout/Iout: 5V(800mA) Vin (normal)/ Vin (peack): 6-9V/ peack 18V ? Description: ? PRO MINI version of Mega 2560. Built on the At mel ATmega2560 microcontroller. The board has compact size 38x52mm. It is a good solution, to make your final project on solder proto-board. Board for functionality similar to the Mega 2560. It is an embedded MINI board, but the same stable, and uses the original chips ATmega2560 (16 MHz). The board doesn't have USB interface. For connecting to PC, pls use the USB-TTL converter. You can supply power to board through the power pin headers. Output current for 5V version - about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.? On the picture, you can see the real size of this board, compare with the size of Mega Rev3. ? Technical details: ? 70 digital I/O 16 analog inputs 14 PWM 4 bus of UART ? Package includes: ? 1 x Mega2560 PRO MINI Module?With Pin Headers
