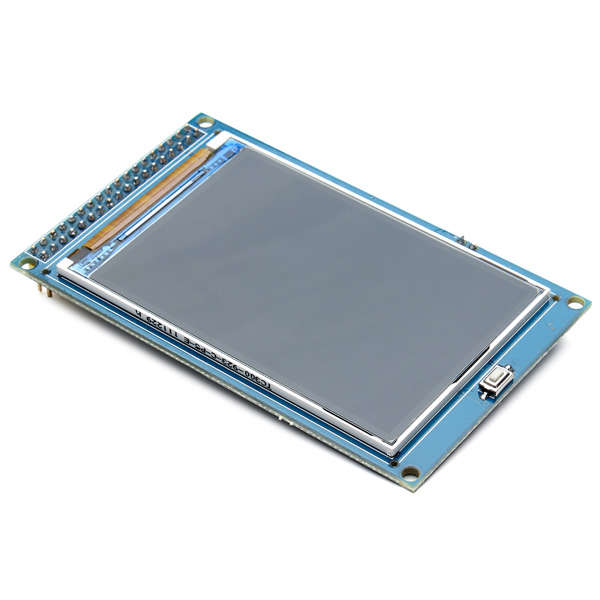

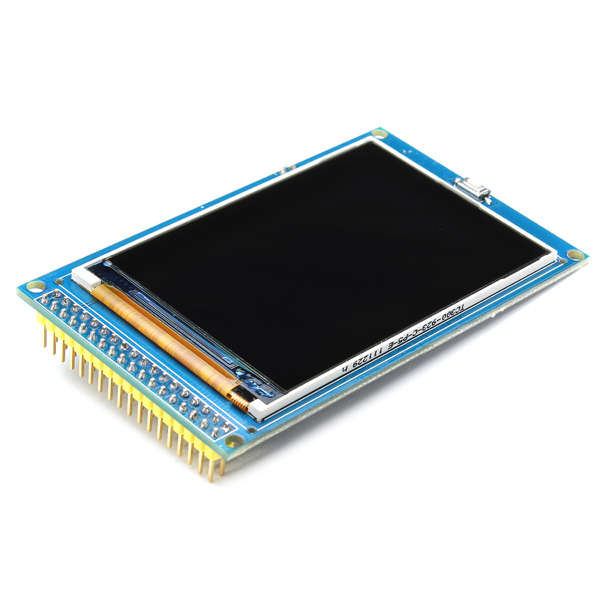

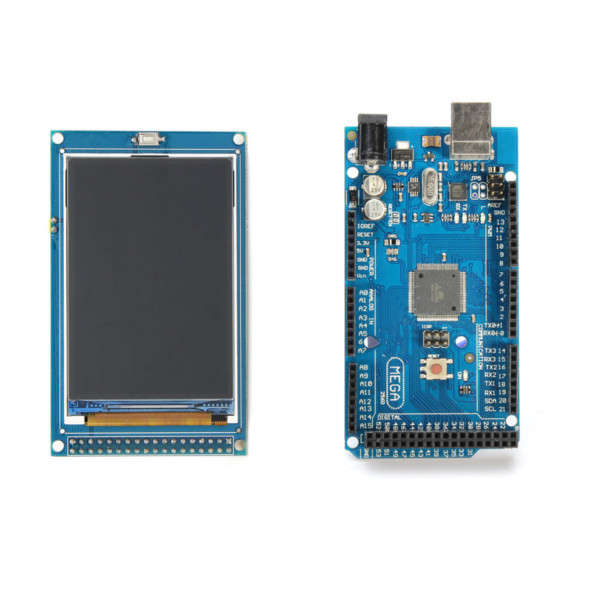

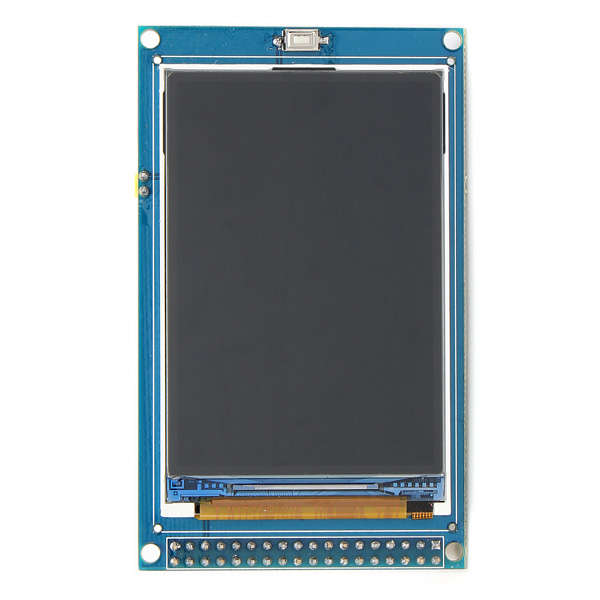

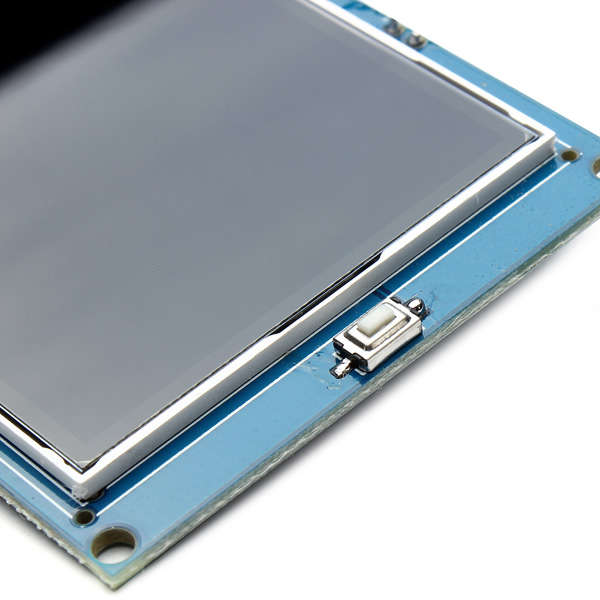

Description:3.0 Inch TFT LCD with 262K color 480x 320 resolutions.The controller of this LCD module is HX8357C, it supports 16-wires DataBus interface.Moreover, this module includes the 5V-3.3V power conversion circuit and Level conversion circuit, This Module can Directly inserted into the Arduino Mega2560 Board ,it also includes the SD card socket and SPI FLASH circuit
Feature:Support Arduino Mega2560 Directly inserted
With Full-angle IPS TFT panel

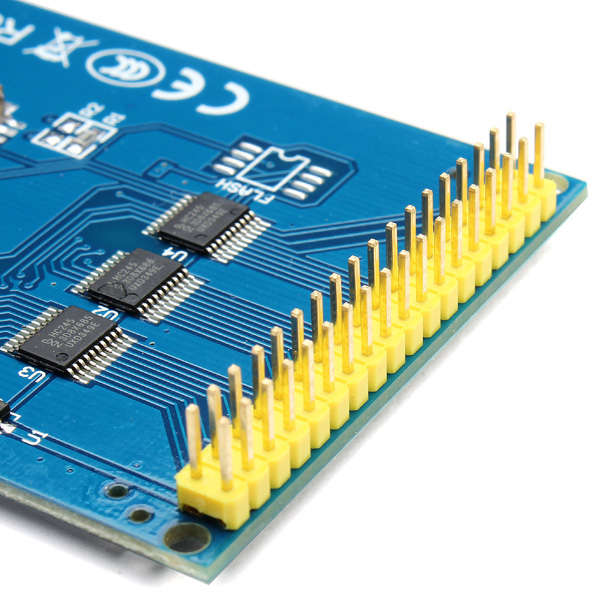

OnBorad level conversion chip for 5V/3.3V MCU
Compatible with 3.3/5V operation voltage level
Compatible with Arduino-Series development Board.
.(
Please notice:This Screen is not touch screen)
Provided 12-examples with Arduino ,3-examples with STM32

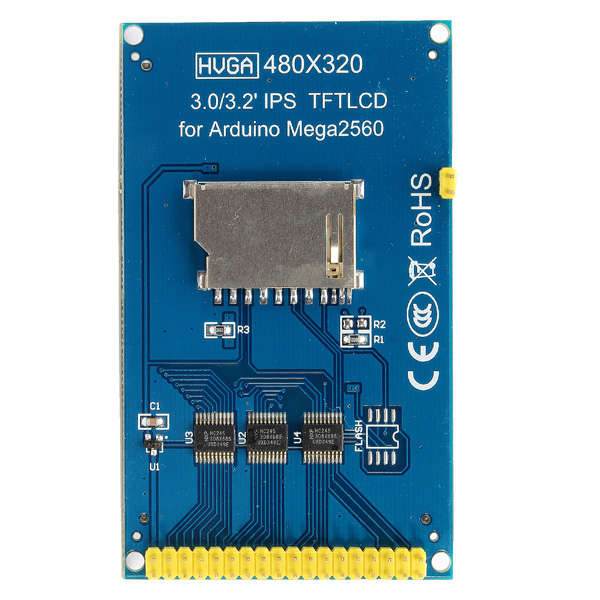

With SD Card Socket
With SPI FLASH circuit
Parameter:
Display Type: 3.0 inch a-si TFT LCD Module
Glass Type: TFT IPS(Full-Angle)
Display Resolution: 480 X RGB X 320 Pixels
Back light: 6 chip HighLight white LEDs
Control IC: HX8357C
Interface: 16Bit parallel interface
PCB Module size: 89.92mm X 54.25mm
LCD Area(WxHxT): 50.74mm X 78.35mm X 1.88mm
Active Area(WxH): 67.68mm X 45.12mm

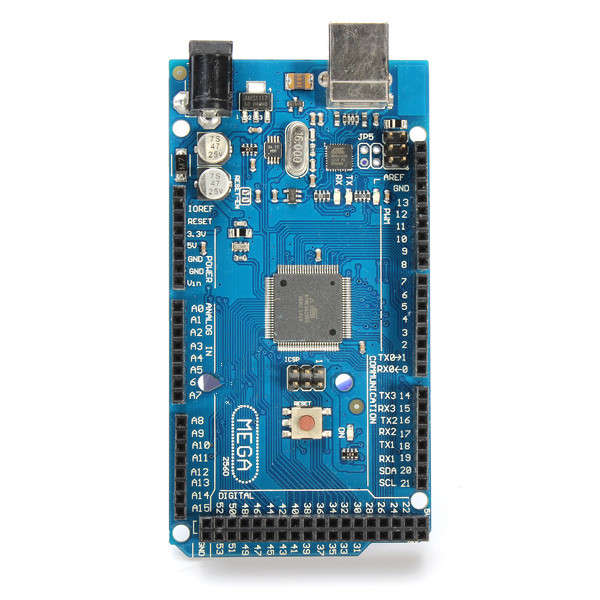

Mega2560 R3 ATmega2560-16AU Control Board With USB Cable For ArduinoDescription:This is Arduino compatible R3 Mega2560 ATmega2560-16AU control board with USB cableArduino Mega is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator. With the bootloader, download the program directly via USB without having to go through other external writer. Supply part of the optional USB power, or as an external power using the AC-to-DC adapter and battery.Rapid growth due to open the original code, as well as the concept of using Java (cross-platform) C language development environment for Arduino peripheral module. The main reason attracted Artist Arduino can quickly use the Arduino language with Flash or Processing ... software communication, to make multimedia interactive works. Arduino development IDE interface is based on open-source principles, allows you to excelent download for use in project work, school teaching, motor control, interactive works.Power supply designThere are two options for the power supply system of the Arduino Mega USB direct power supply or external power supply. The choice of power supply will be switched automatically. External supply AC-to-DC adapter or the battery can be selected on this control panel. Limit the voltage range of 6V ~~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a voltage of 5V, and therefore instability; If the voltage is greater than 12V, the regulator device may possibly overheating protection, are more likely to damage the Arduino MEGA. Therefore recommended operating supply 6.5 ~ 12V, the recommended power supply to 7.5V or 9V.The development board have been rigorously tested each product at the factory before to burn a Blink small program, please get the goods energized inspection under the L lamp will be lit for 3 seconds and then off for 1 second, non-stop cycle to Detection of the board is good or bad.Its chip is Arduino original.Specification:Microcontroller: ATmega2560Operating voltage: 5VInput voltage (recommended): 7-12VInput voltage (limits): 6-20VDigital I / O pins: 54 (of which 14 provide PWM output)Analog input pins: 16DC current per I / O pin: 40 mADC current for 3.3V Pin: 50 mAFlash Memory: 256 KB of which 4 KB used by bootloaderSRAM: 8 KBEEPROM: 4 KBClock Speed: 16MHz
