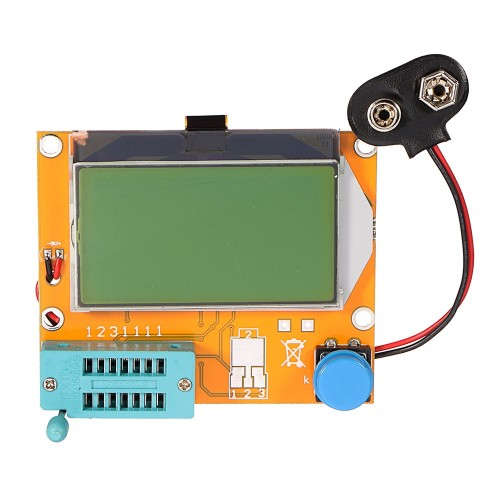

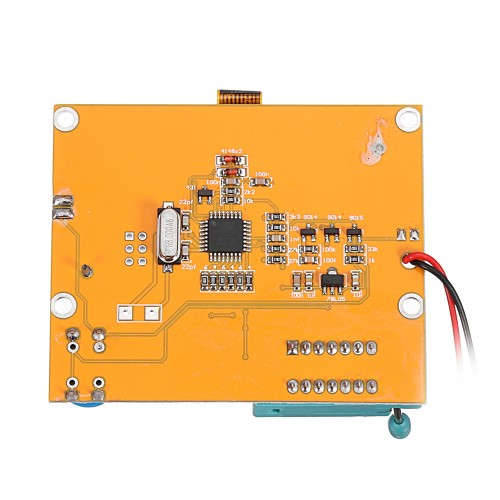

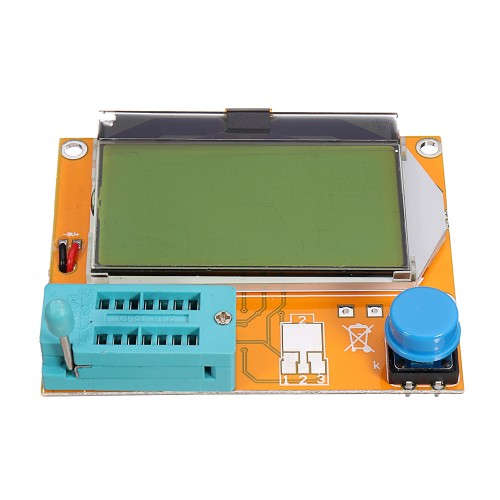

Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS/PNP/NPN L/C

Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS/PNP/NPN L/C/R.

This handheld device is a must-have not just for electronic experts but also for beginners. With this tester, you can test any electronic component at the press of a button, it will even tell you what type of component it is, which leg is which, and all internal values of the component. It has an integrated self-test mode to verify that it is still working as it is supposed to.

• Test ranges: Inductors, capacitors, diodes, dual diode, mos, transistor, SCR, the regulator, LED tube, ESR, Resistance, Adjustable potentiometer
• Resistance: 0.1-ohm resolution, maximum 50M ohm
• Capacitor: 25pf -100,000 uf
• Inductors: 0.01mh-20H

Have a look at the Link:lcr-t4
See Schematic:
