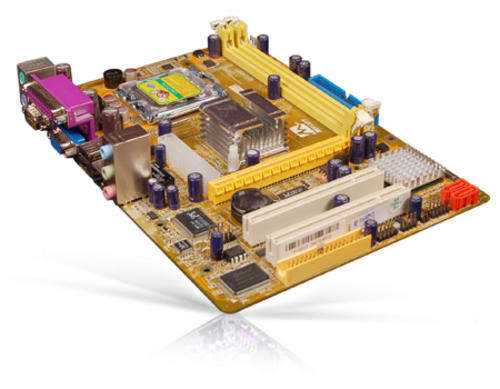

Mercury PlG31M,LGA 775, 1333MHz
| CPU | LGA775 socket for Core 2 Duo / Core 2 Quad/ Pentium Dual Core and Celeron 4 |
| Chipset | • North Bridge: Intel G31 • South Bridge: Intel ICH7 |
| FSB | 1333/1066/800 MHz |
| Memory | • DDR2 800/667 MHz SDRAM (4GB MAX) • 2 DDR2 DIMM slots (240-pin/ 1.8v) |
| VGA | • Integrated Intel Graphics Media Accelerator 3100 (GMA3100) • Max Dynamic Video Memory:287MB(VISTA) /384MB(XP) |
| Expansion Slots | • 1 x PCI ExpressX16 graphic accelerate slot • 2 x PCI, support 3.3V/5V PCI bus Interface |
| LAN | Supports 10/100/1000 Fast Ethernet by Realtek RTL8100 or 8111C |
| Audio | • Chip Integrated by Realtek ALC655 • Up to 5.1 Channel audio-out • Vista Premium Compliance |
| IDE/SATA | • 1 - IDE port • Supports Ultra DMA 66/100/133, PIO & Bus Master operation mode • Can connect up to Two Ultra SATA drives. |
| Back Panel I/O Ports | • 1 X Serial Port¿¿¿compatible with high speed 16550 UARTmodel • 1 X Parallel Port¿¿¿support EPP/ECP/SPP transportaion • 2 X USB¿¿¿support USB 2.0 • 1 X PS/2 Keyboard • 1 X PS/2 Mouse • 1 X VGA Port • 1 X Lan Jack • 3 X Audio Jack |
| Internal I/O Connectors & Headers | • 1 X IrDA¿¿¿support 115.2KB/S • 1 X FLOPPY¿¿¿support 360K/720K/1.2M/1.44M/2.88M floppy driver • 2 X Serial SATA2 ports¿¿¿max speed 300MB/s¿¿¿ • 2 X SPDIF connector |
| System BIOS | • Support plug and play • Support advance power management ACPI and green save power function • Support adjust linearity |
| Form Factor | MICRO ATX (24 cm X 16.8 cm) |
