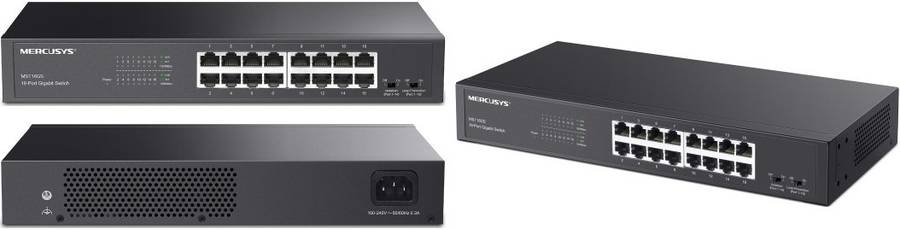

Mercusys 16 Port Gigabit Desktop or Rackmount Switch

Mercusys 16-Port Gigabit Desktop/Rackmount Switch - 16x10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX Interfaces, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p Standards and Protocols, 32Gbps Switching Capacity, 8K Mac Address Table, Store and Forward Transfer Method, Isolation Mode, Loop Prevention, Plug and Play, Retail Box, 6 Months Warranty.

Product Overview

Mercusys 16-port Gigabit switch: Supports IEEE 802.3i/u/ab/x/1p standards with 16x10/100/1000 Mbps RJ45 ports, auto-negotiation/MDI/MDIX, 32 Gbps switching capacity, and 8K MAC table for seamless connectivity. Delivers store-and-forward transfer, 802.3x flow control, 802.1p/DSCP QoS, loop prevention, port isolation, and LED indicators in a compact 294x140x44 mm metal chassis. Powered by 100-240VAC adapter, CE/RoHS certified, operates at 0-40 deg C (10-90% humidity) with storage to -40-70 deg C for reliable small business or home office use.

Features

-Full Gigabit Ports: 16x 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
-Plug and Play: Simple to use and saves time and effort
-Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
-Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
-Durable Metal Casing: Allows for efficient heat dissipation and long network life

Specifications

-Product Code: MS116GS
-Description: 16-Port Gigabit Desktop/Rackmount Switch
Software
-Transfer Method: Store and Forward
-Advanced Features: 802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation
Hardware
-Dimensions (W X D X H): 294*140*44mm (11.6*5.5*1.7 in)
-Interfaces: 16x10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
-External Power Supply: 100-240VAC, 50/60Hz
-Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
-Switching Capacity: 32 Gbps
-LED: Power, Link/Act, 1000Mbps
-Mac Address Table: 8K
-Certifications: CE, RoHS
-Operating Temperature: 0°C to 40°C (32°F to 104°F)
-Storage Temperature: -40°C to 70°C (-40°F to 158°F)
-Operating Humidity: 10% to 90% non-condensing
-Storage Humidity: 5% to 90% non-condensing
