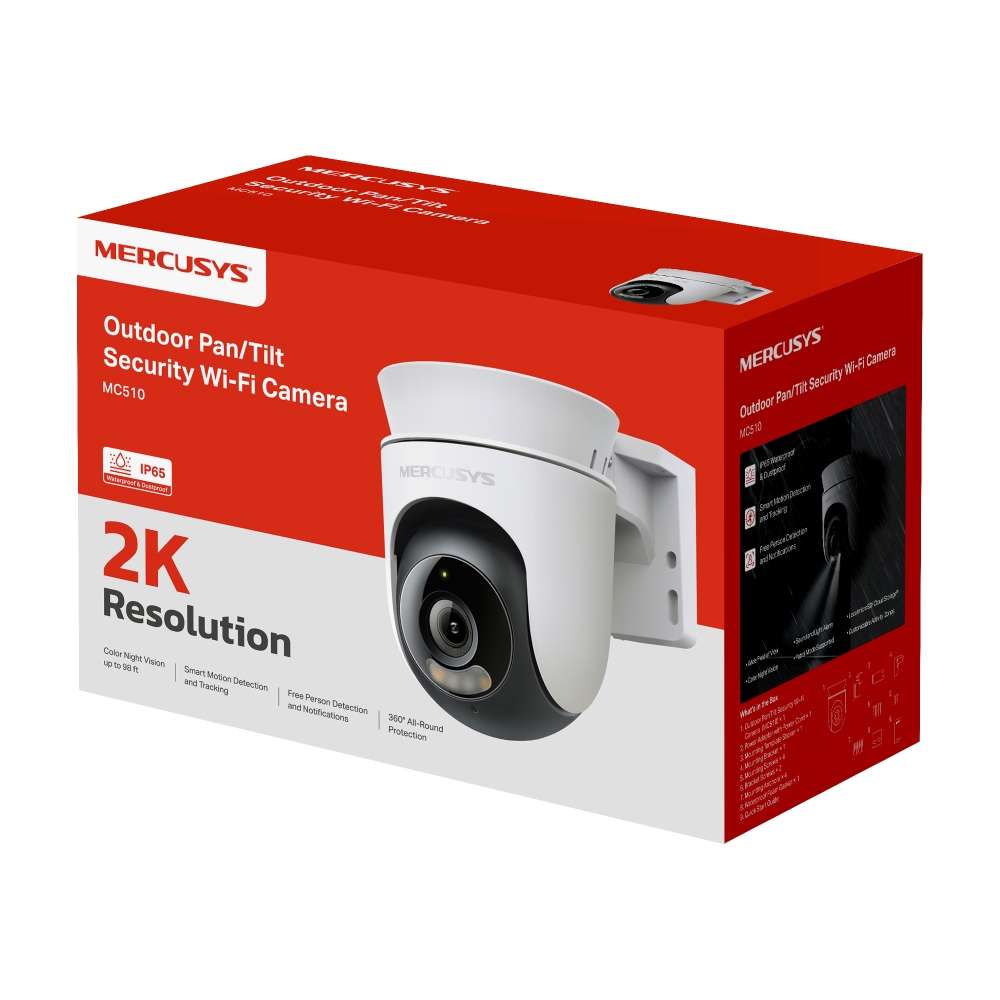

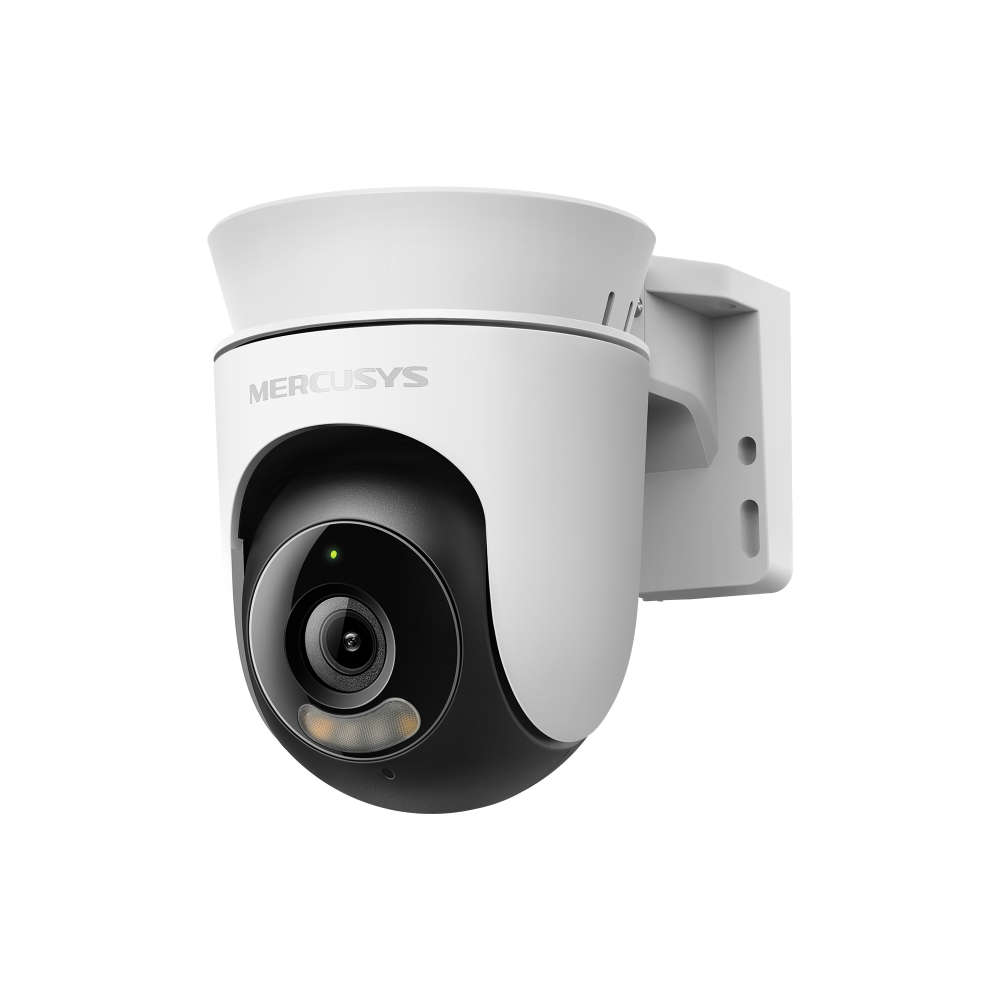

Mercusys MC510 3MP Outdoor Pan/Tilt Security Wi-Fi Camera
Smart Protection. Full Coverage.
The Mercusys MC510 Outdoor Pan/Tilt Security Wi-Fi Camera delivers reliable 2K monitoring with full 360ｰ coverage, ensuring no blind spots around your home or business. Equipped with smart motion detection and tracking, it keeps subjects in view and provides real-time alerts for enhanced security. Full-colour night vision with built-in spotlights ensures clear visibility even in complete darkness, while IP65-rated weather protection guarantees dependable performance in outdoor conditions. Two-way audio and a built-in siren allow you to interact and respond instantly when needed. With flexible installation options, local microSD storage up to 512GB and easy app control, the MC510 offers a complete, low-maintenance surveillance solution for modern environments.

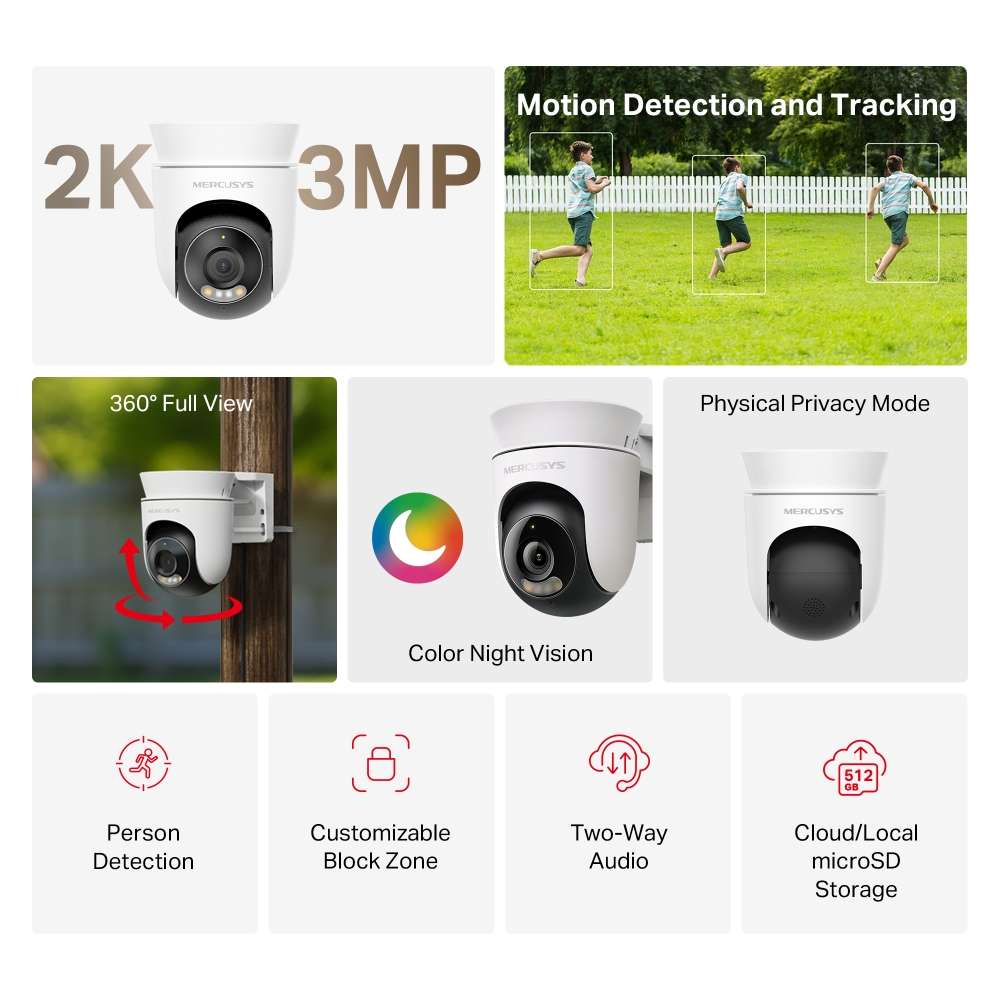

FEATURES
2K 3MP Resolution - Sharp, detailed video for clear monitoring
360° Pan/Tilt Coverage - Full-area surveillance with no blind spots
Smart Motion Tracking - Automatically tracks movement in real time
Full-Colour Night Vision - Clear visibility in low-light with built-in spotlights (up to 30m)
AI Motion and Person Detection - Accurate alerts to reduce false notifications
Two-Way Audio - Built-in microphone and speaker for real-time communication
Sound and Light Alarm - Integrated siren and spotlight deterrent

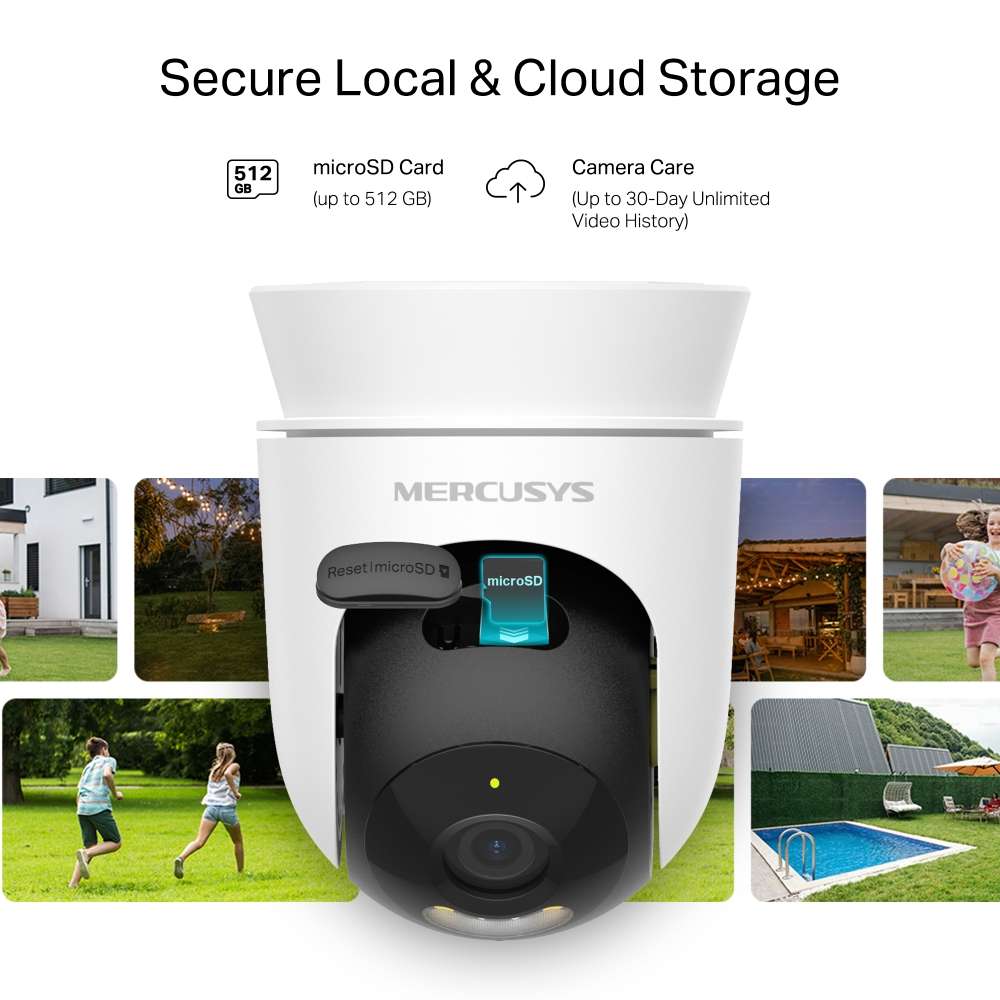

Flexible Storage Options - Supports microSD (up to 512GB) and cloud storage
IP65 Weatherproof - Reliable outdoor performance in harsh conditions
Smart App Control - Easy setup and remote access via mobile app
SPECIFICATIONS
Image Sensor: 1/3" Progressive Scan CMOS
Lens: 4mm F2.0
Field of View: 87° (Diagonal), 74° (Horizontal), 40° (Vertical)
Night Vision: 850nm IR LED (30m), Colour Night Vision
Pan/Tilt Range: 340° Pan, 90° Tilt (360° Coverage)
Interface: Reset Button, microSD Slot (Up to 512GB)
Maximum Resolution: 2K 3MP (2304 × 1296)
Frame Rate: 15/20/25/30fps (15fps Default)
Digital Zoom: 10.8×
Video Compression: H.264
Image Enhancement: 3DNR, WDR
Audio: Built-In Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 88dB (10cm)
Security: 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK
Local Storage: microSD Card Slot (Up to 512GB)
Cloud Storage: Mercusys Camera Care (Subscription Required)
Connectivity: Wi-Fi
Wireless Standards: IEEE 802.11b/g/n, 2.4GHz
RTSP: Yes
ONVIF: Yes
Power Source: 9V DC Power Adapter
Input Voltage: 100~240V, 50/60Hz
Output Voltage: 9V 0.85A
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP65
Mounting Options: Ceiling, Wall, Pole
Operating Temperature: -20~50°C
Storage Temperature: -40~60°C
Operating Humidity: 10~90% RH, Non-Condensing
Storage Humidity: 0~90% RH, Non-Condensing
Dimensions: 141.5 × 93 × 122mm
AI Detection: Motion Detection, Person Detection
Activity Zones: Yes
Notifications: System Notification
Certifications: CE, NCC, BSMI, NTRA, KC, RCM, ONVIF
