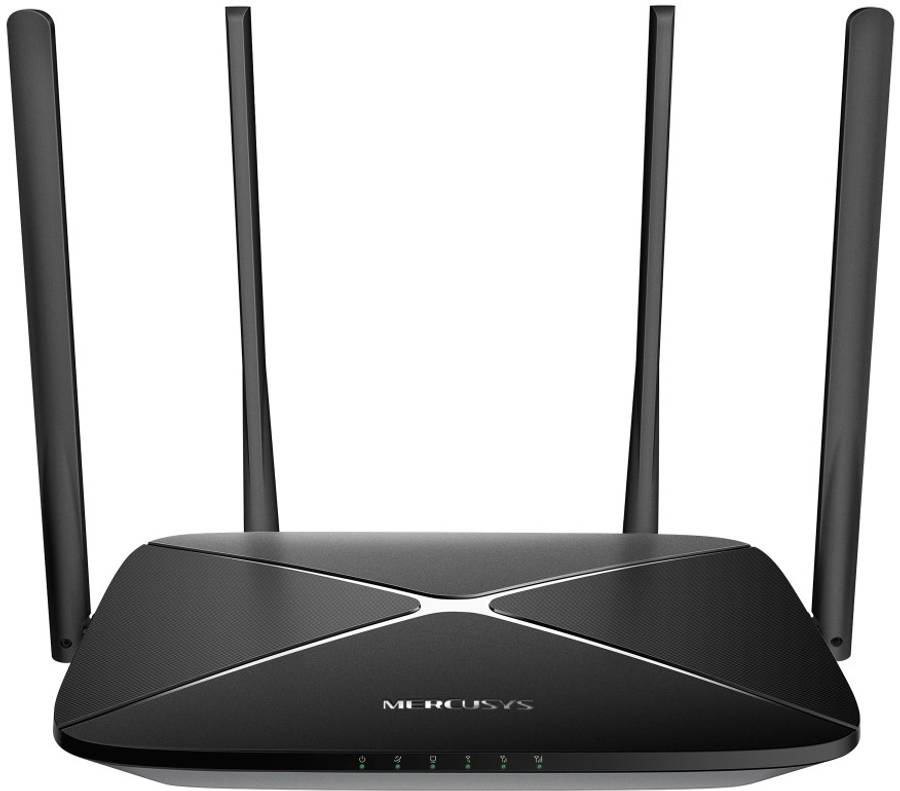

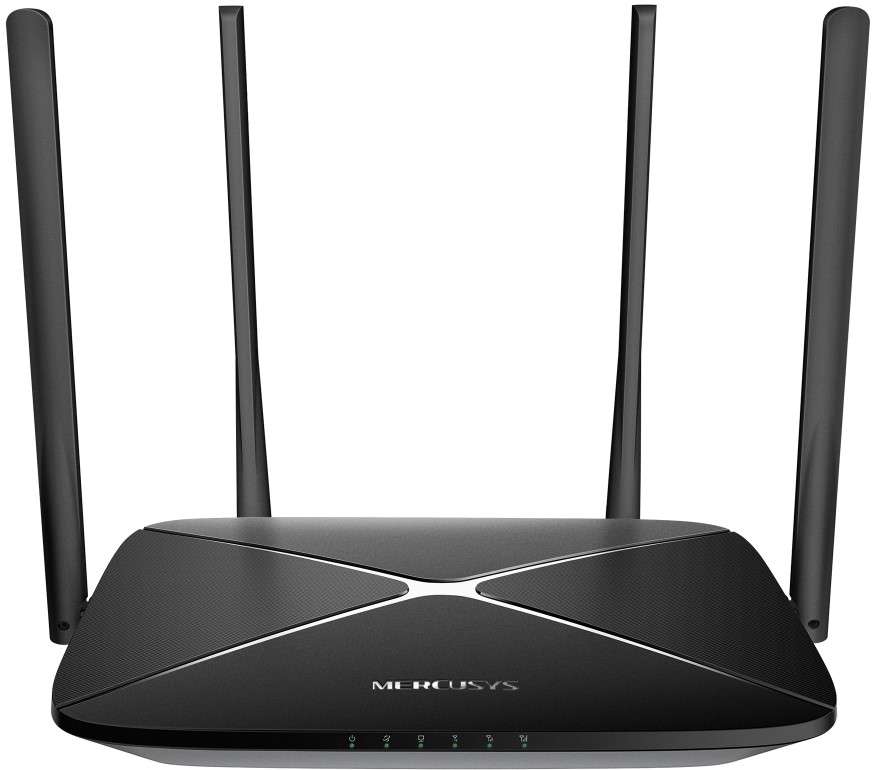

Mercusys 300 Mbps Wireless N 4G LTE Router - 4G Network, Connect Up to 32 Wi-Fi Devices, 300Mbps at 2.4GHz Frequency Speed, 3G/4G Operation Modes, Data Settings, 2 x External 4G LTE Antennas, 2 x External Wi-Fi Antennas, WPS, Reset Button, Plug a Sim Card and Play, Wi-Fi Router Mode, Retail Box, 6 Months Warranty.
Product Overview
Mercusys MB115-4G 4G LTE Router Unlock Cat4 LTE speeds up to 150Mbps DL/50Mbps UL across EU/CN/UN bands (e.g., B1/B3/B20), plus N300 Wi-Fi (300Mbps 2.4GHz) with 4 external antennas for solid coverage in homes or travel setups. Versatile modes (4G/3G router, wireless router, failover), 4x Fast Ethernet ports, guest Wi-Fi, parental controls, SPI firewall, and easy app/web management via nano-SIM for quick failover networking. Slim (8.62x5.51x1.26in), 9V powered, 0~40 deg C rated with data limits/SMS-budget-friendly at ~R600 locally for gaming backups or secondary ISP without contracts.
Features
-4G network - Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
-Plug a SIM card and play - No configurations needed, compatibility of SIM cards are assured by years of field tests
-300 Mbps WiFi - Fast WiFi speeds up to 300 Mbps to share your network.
-Maximum Network Coverage - Enjoy stable and efficient connections to every device thanks to the four external antennas
-Wi-Fi router mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specifications
-Product Code: MB115 4G
-Description: Mercusys 300 Mbps Wireless N 4G LTE Router
Network Type
EU:
-FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
-TDD-LTE: B38/B40 (2600/2300 MHz)
-HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
CN:
-FDD-LTE: B1/B3/B5/B8 (2100/1800/850/900 MHz)
-TDD-LTE: B38/B40 (2600/2300 MHz)
-HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
UN:
-FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 Hz)
-TDD-LTE: B40 (2300 MHz)
-HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)
-Wi-Fi Class: N300
-Wi-Fi(2.4GHz): 300Mbps
-Wireless Standards: IEEE 802.11b/g/n
-Frequency: 2.4GHz
Reception Sensitivity
-11g 54M: -74.5 dBm
-11n HT20 MCS7: -73.5 dBm
-11n HT40 MCS7: -70.5 dBm
-Transmission Power: < 20 dBm (2.4 GHz)
-Wireless Security: WPA-PSK / WPA2-PSK
Wireless Functions
-smart connect
-WPS
-Wireless Schedule
-Wireless Clients Statistics
Software
-Operation Modes:
-3G/4G Router
-Wireless Router
Cellular Mode:
-4G Preferred
-4G Only
-3G Only
Cellular APN
-Data Roaming
-Network Search
-Profile Create
-APN Settings
-ISP File Upgrade
-PIN Management
WAN Mode
-Dynamic IP
-Static IP
-PPPoE
-PPTP
-L2TP
DHCP
-Server
-DHCP Client List
-Address Reservation
-Protocols: IPv4, IPv6
-Data Settings: Data Statistics, Data Limit
-Guest Network: 2.4GHz Guest Network
-Parental Controls: Time Control, Website FilteringHardware
-Dimensions (W x D x H): 219 x 140 x 32 mm
Interfaces:
-1x 10/100Mbps LAN/WAN Port
-3x 10/100Mbps LAN Ports
-1x Nano SIM Card Slot
Antenna
-2x External 4G LTE Antennas
-2x External Wi-Fi Antennas
-Buttons: WPS, Reset Button
-External Power Supply: 9V/0.85A
LED
-1x Power
-1x Internet
-1x LAN
-3x Signal
LTE Standard
-Cat 4
-150/50Mbps DL/UL
