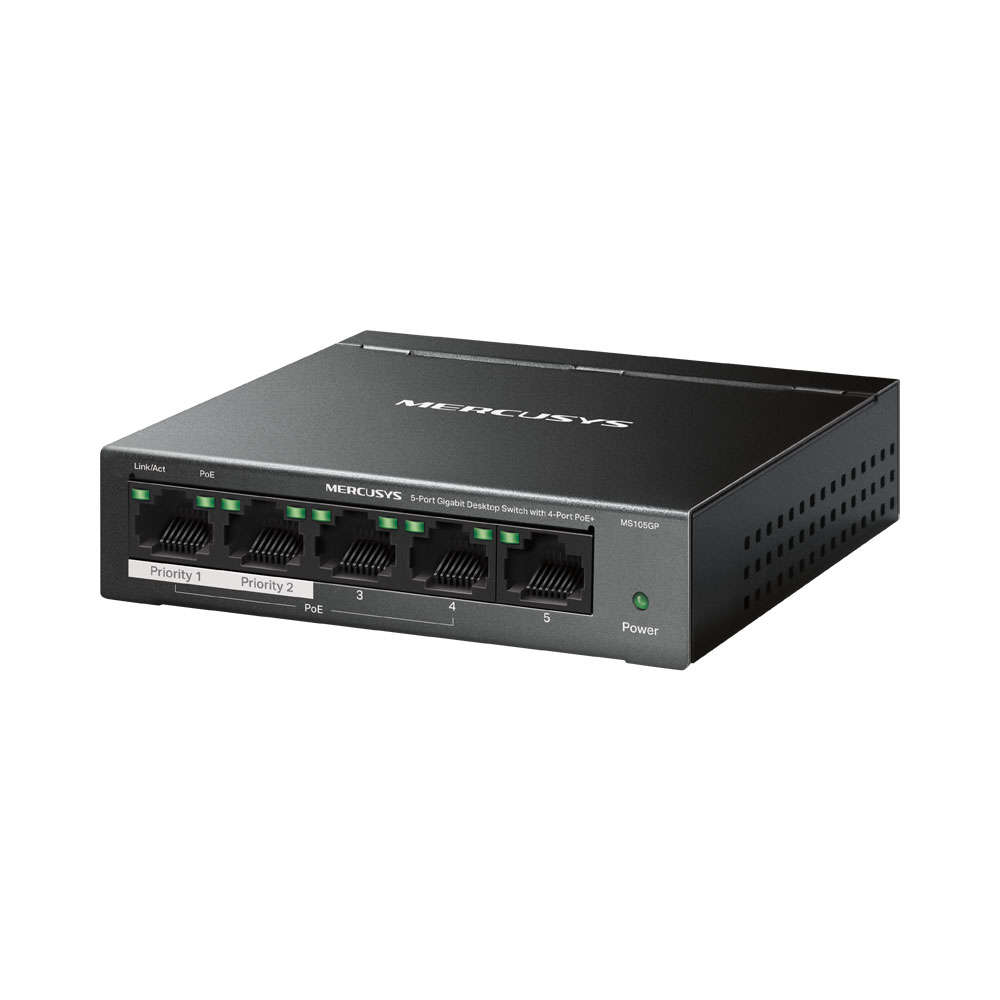

Mercusys 5-PORT GB DESKTOP SWITCH WITH 4-PORT POE+

The Mercusys 5-PORT GB DESKTOP SWITCH WITH 4-PORT POE+ is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Full Gigabit Ports - 5? 10/100/1000Mbps RJ45 ports
• Two Cables in One - With four PoE+ ports, transfers data and power on one single cable
• High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
• Long-Range up to 250m - Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)
• Isolation Mode - One click to divide traffic for specific ports for stability and security

Technical Specifications:
FEATURES

? Full Gigabit Ports - 5? 10/100/1000Mbps RJ45 ports
? Two Cables in One - With four PoE+ ports, transfers data and power on one single cable
? High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
? Long-Range up to 250m - Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)
? Isolation Mode - One click to divide traffic for specific ports for stability and security
? Compliant with Powered Devices - Works with IEEE 802.3af/at compliant PDs
? Durable Metal Casing - Allows for efficient heat dissipation and long network life
? Plug-and-Play - Simple to use and saves time and effort

SPECIFICATIONS

DIMENSIONS (W ? D ? H)
? 99.8 ? 98 ? 25mm

POE PORTS
? 4? PoE+ Ports (Ports 1~4)
? Standard: IEEE 802.3af/at Powered Devices
? PoE Power Budget: 65W

INTERFACES
? 5? RJ45 Gigabit Ethernet Ports

EXTERNAL POWER SUPPLY
? External Power Adapter (Output: 53.5V 1.31A)

INSTALLATION
? Desktop
? Wall Mount

STANDARDS AND PROTOCOLS
? IEEE 802.3x Flow Control

DATA RATES
? 10/100/1000Mbps at Half-Duplex
? 20/200/2000Mbps at Full-Duplex

JUMBO FRAME
? 9KB

MAC ADDRESS TABLE
? 2K

MAX POWER CONSUMPTION
? 3.13W (220V 50Hz, No PD Connected)
? 75.15W (220V 50Hz, With 65W PD Connected)

MAX HEAT DISSIPATION
? 10.64 BTU/h (No PD Connected)
? 255.51 BTU/h (With 65W PD Connected)

ENVIRONMENT
? Operating Temperature: 0~40?C
? Storage Temperature: -40~70?C
? Operating Humidity: 10~90% RH Non-Condensing
? Storage Humidity: 5~95% RH Non-Condensing
