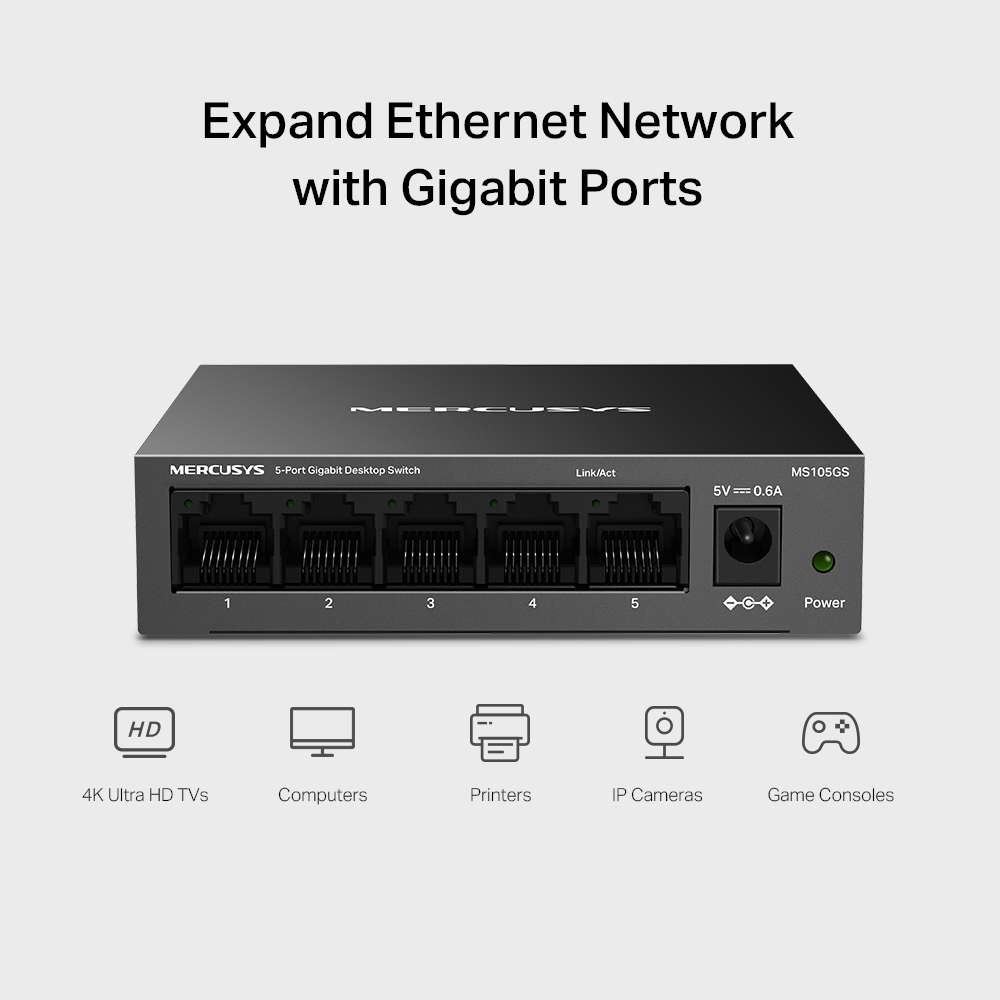

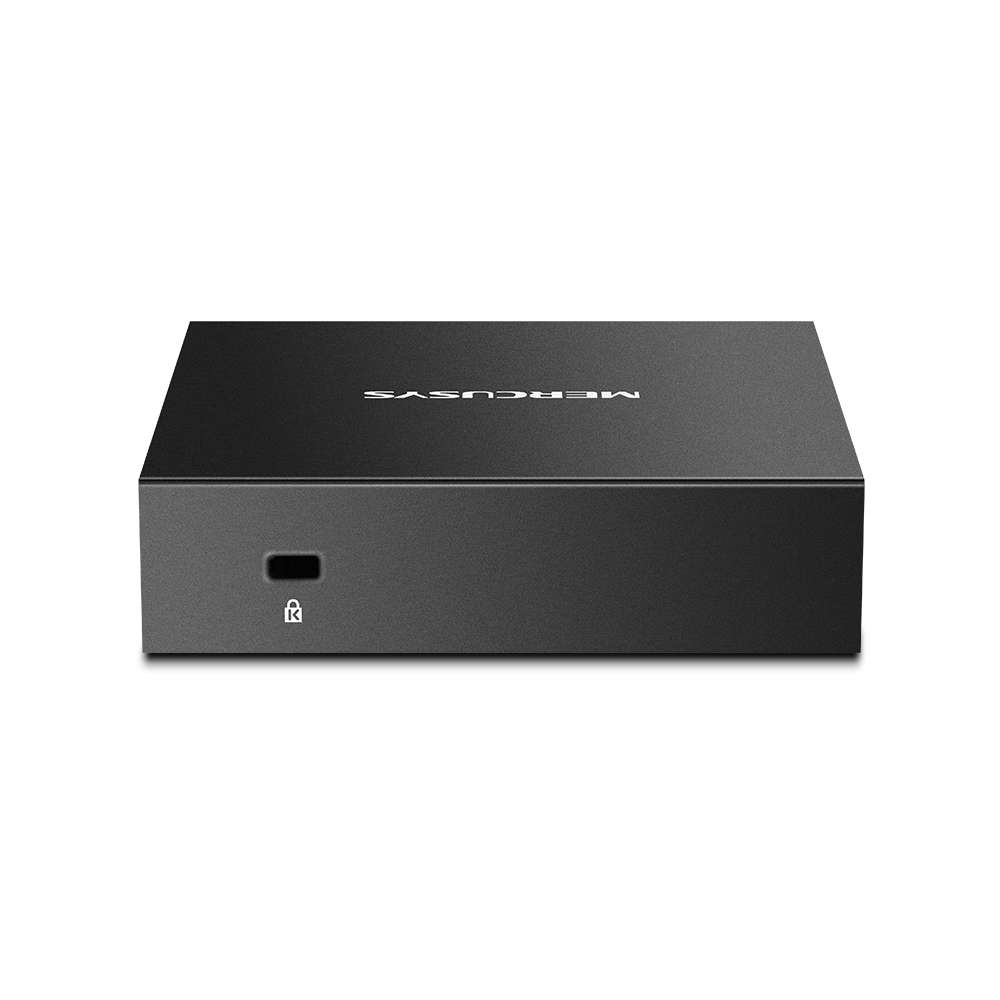

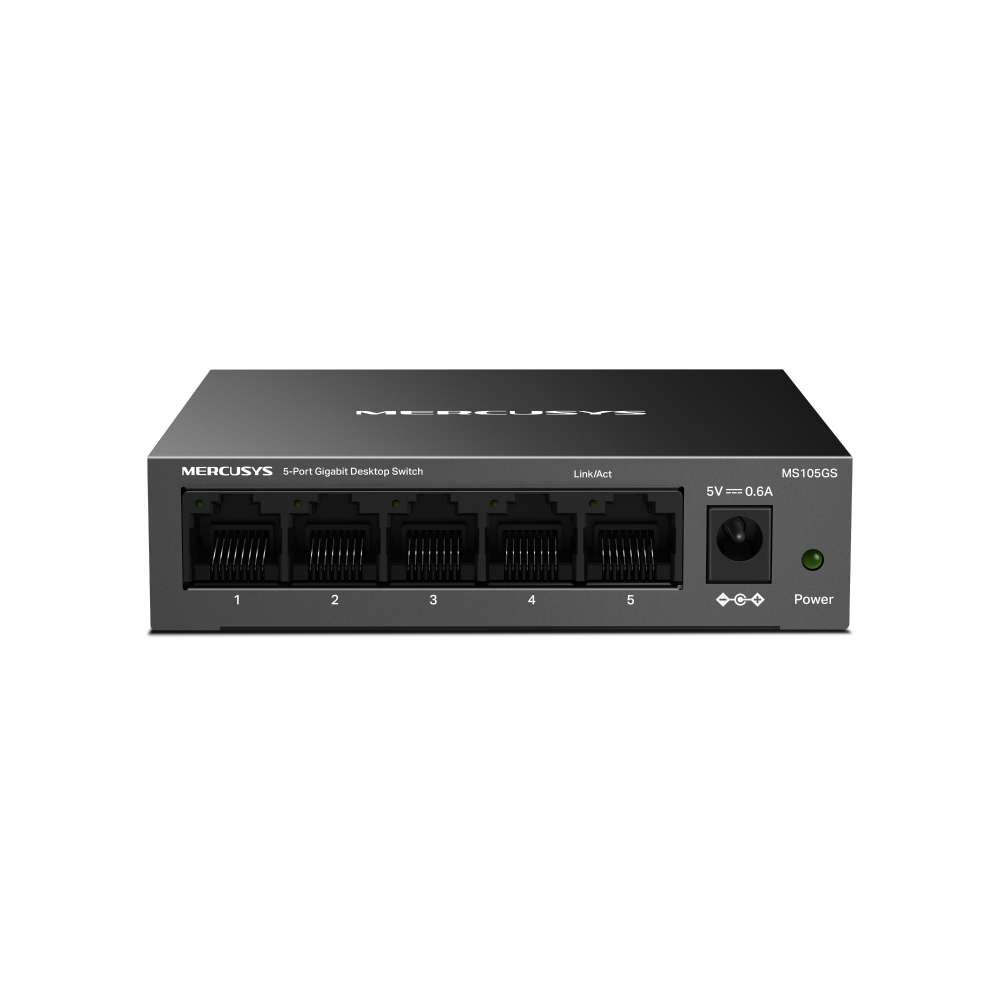

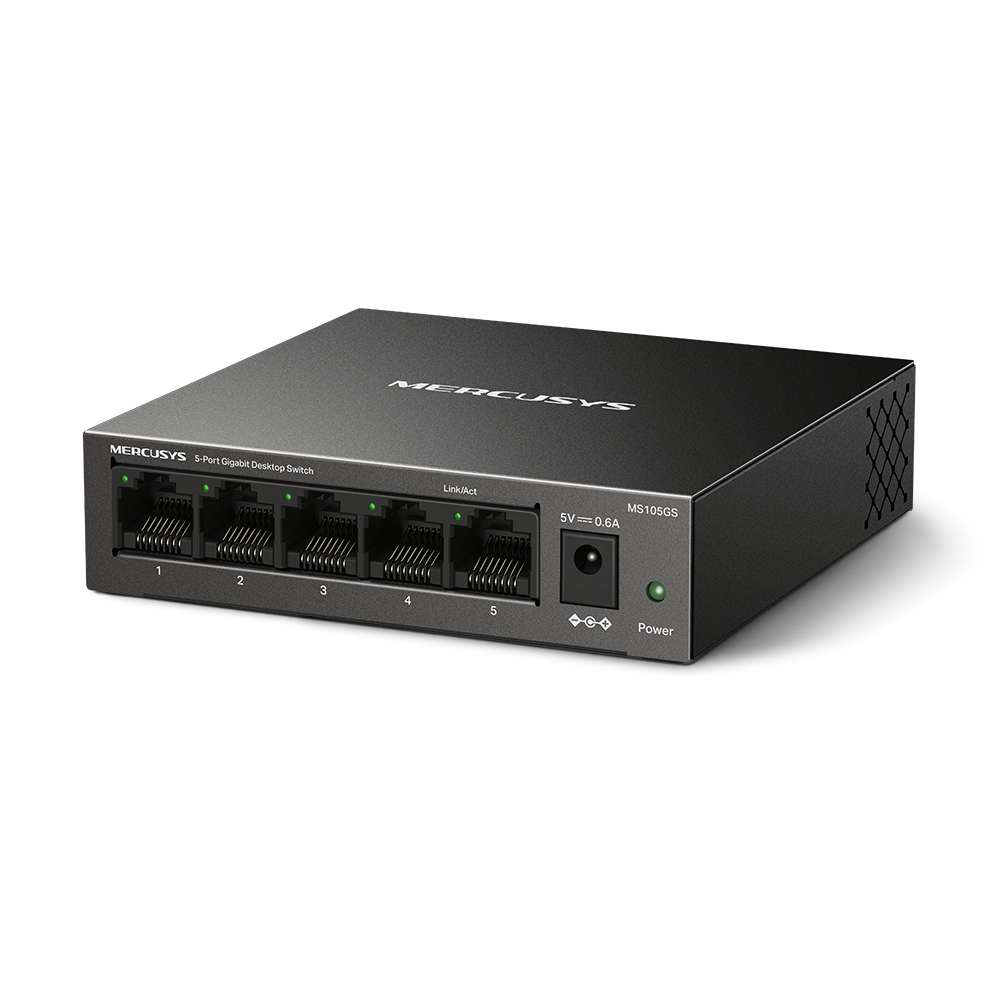

Mercusys MS105GS 5-Port Gigabit Desktop Switch

Fast Networking. Effortless Expansion.

Expand your network effortlessly with the Mercusys MS105GS 5-Port Gigabit Desktop Switch, designed for fast, stable and hassle-free connectivity. With five Gigabit ports, it delivers high-speed performance for bandwidth-intensive applications such as streaming, gaming and file transfers. Its plug-and-play design ensures instant setup with no configuration required, making it ideal for home and small office environments. The durable steel housing and fanless design provide reliable, silent operation and improved heat dissipation for long-term performance. Featuring Green Ethernet technology, the MS105GS reduces power consumption without compromising performance, offering an efficient and cost-effective networking solution.

FEATURES

5× Gigabit RJ45 Ports - High-speed wired connectivity for multiple devices
Auto-Negotiation & Auto MDI/MDIX - Seamless compatibility with connected devices
Plug-and-Play Operation - No configuration required for quick setup
Steel Housing Design - Durable construction with efficient heat dissipation
Fanless Operation - Silent performance ideal for home and office use
Green Ethernet Technology - Reduces power consumption for energy efficiency

SPECIFICATIONS

Transfer Method: Store-and-Forward
Interfaces: 5× 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
Data Rates: 10/100/1000Mbps (Half Duplex), 20/200/2000Mbps (Full Duplex)
Switch Capacity: 10Gbps
MAC Address Table: 2K, Auto-Learning, Auto-Aging
Buffer Capacity: 1Mbit
Jumbo Frame: 15KB
Flow Control: Yes
Fanless: Yes
LED Indicators: Power, Link/Act
Power Supply: 5V 0.6A
Max. Power Consumption: 3.614W
Max. Heat Dissipation: 12.331BTU/h
Dimensions: 99.8 × 98 × 25.1mm
Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH, Non-Condensing
Storage Humidity: 5~95% RH, Non-Condensing
Certification: CE, RoHS
