High-Speed Wi-Fi - Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band)
xxNB THIS ROUTER DOES NOT USE A SIM CARD, FIBRE (WAN) IS REQUIREDxx
4 High-Gain External Antennas - Receive strong Wi-Fi signals in every corner of your home
Easy Installation - Set up in minutes guided by an intuitive web UI
Active Parental Controls - Protect your family by setting appropriate access policies for responsible, safe internet use
Multi-Mode - Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios
IPTV and IPv6 Supported
WirelessWireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz, 5 GHz
WiFi Speeds
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, WMM
Button
Reset/WPS Button
External Power Supply
9V/0.85A
Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas
Ethernet Ports
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports
What's in the box

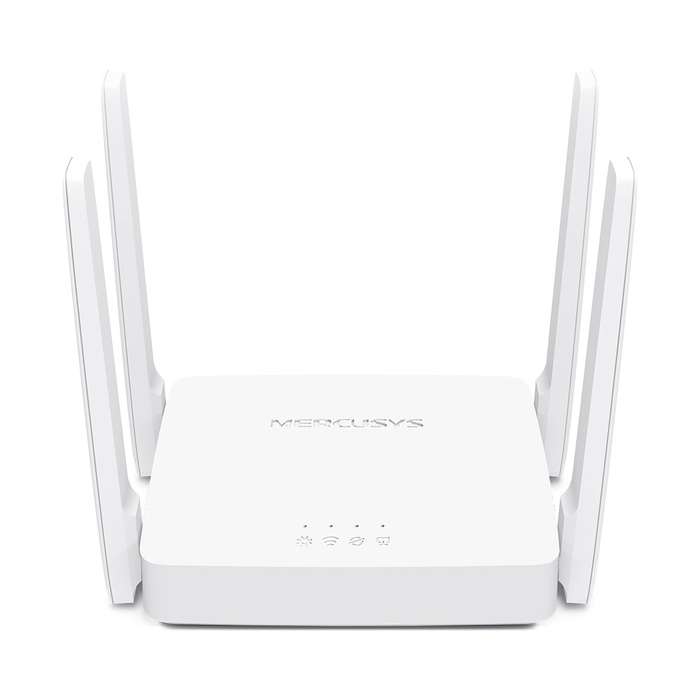

AC1200 300Mbps Wireless Dual Band Router (AC10)
Quick Installation Guide
