Mercusys Ac1200 2-Port Dual Band Wireless Router

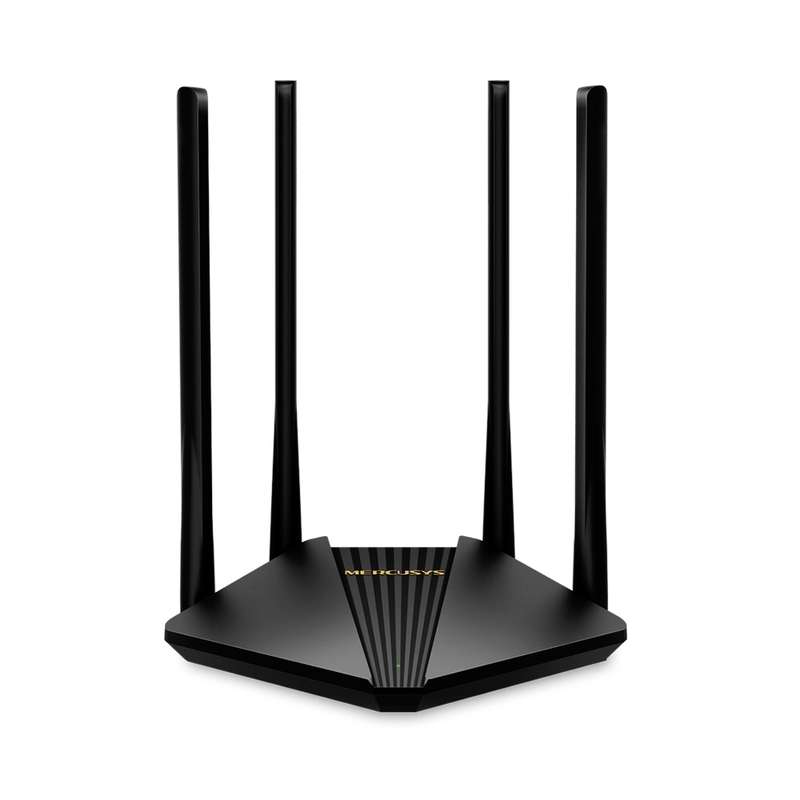

Mercusys AC1200 2-Port Dual Band Wireless Router (MR30G)

• Ultra-Fast AC1200 Dual Band Wi-Fi - 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
• Gigabit Wired Speeds - Full Gigabit ports for PCs, IPTVs, and game consoles
• Easily Manage Your Home Network - Abundant software features for any needs

HARDWARE:

Ports

• 1X Gigabit WAN Port + 2x Gigabit LAN Ports

Button

• WPS/Reset Button

Dimensions (W x D x H)

• 159.7 x 125.9 x 37.1 mm

Antenna

• 4x 5 dBi Fixed Omni-Directional Antennas

WIRELESS:

Wireless Standards

• IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

• 2.4 GHz, 5 GHz

Signal Rate

• 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards

EIRP

• 2.4 GHz < 20dBm (EIRP)
• 5 GHz < 23dBm (EIRP)

Reception Sensitivity

• 11g 6Mbps: -96dBm
• 11g 54Mbps: -78dBm
• 11n HT40 MCS7: -74dBm
• 11n HT20 MCS7: -71dBm
• 11a 6Mbps: -97dBm
• 11a 54Mbps: -79dBm
• 11ac VHT20 MCS8: -74dBm
• 11ac VHT40 MCS9: -70dBm
• 11ac VHT80 MCS9: -65dBm

SOFTWARE:

Operation Modes

• Router Mode, Access Point Mode

WAN Type

• Dynamic IP/Static IP/PPPoE/L2TP/PPTP

DHCP

• Server, DHCP Client List

NAT Forwarding

• Port Forwarding, Port Triggering, UPnP, DMZ

Management

• Access Control
• Local Management
• Remote Management

Firewall Security

• SPI Firewall, IP and MAC Address Binding

Guest Network

• 2.4 GHz Guest Network, 5 GHz Guest Network

Security Features

• Parental Controls
• Guest Network Access
• Wireless Security: WPA-PSK / WPA2-PSK
• Firewall Protection
