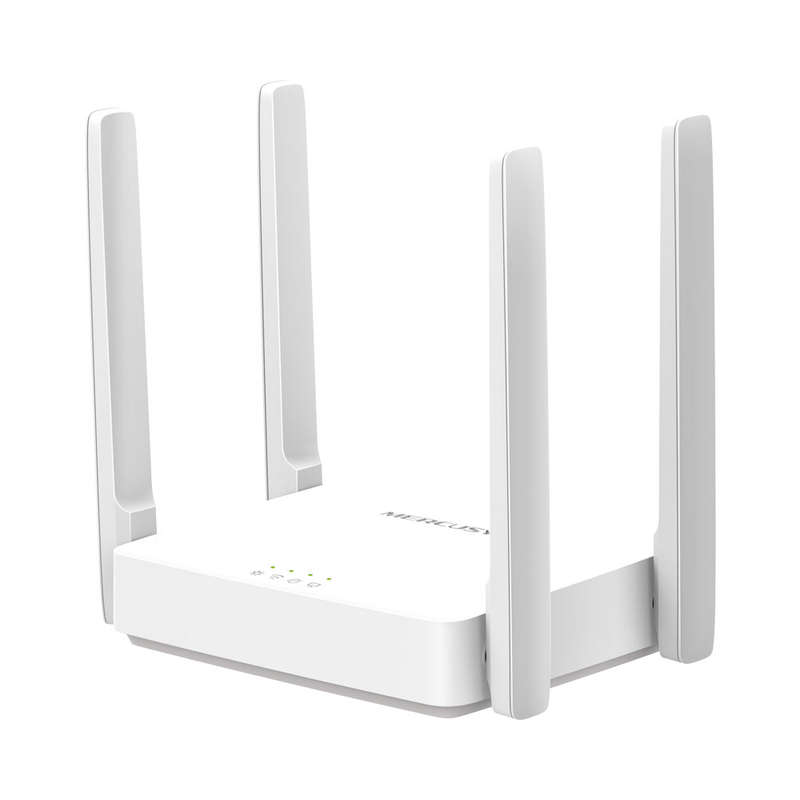

Mercusys Ac1200 Dual Band Wireless Router (Ac10)

Mercusys AC1200 Dual Band Wireless Router (AC10)

• High-Speed Wi-Fi - Stream with fast and stable connections, reaching speeds up to 1167Mbps (300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band)
• 4 High-Gain External Antennas - Receive strong Wi-Fi signals in every corner of your home
• Easy Installation - Setup in minutes guided by an intuitive web UI
• Active Parental Controls - Protect your family by setting appropriate access policies for responsible, safe internet use
• Multi-Mode - Access Point Mode, Range Extender Mode and Router Mode supported to satisfy all application scenarios
• IPTV and IPv6 Supported

HARDWARE:

Ethernet Ports
1x 10/100 Mbps WAN Port
2x 10/100 Mbps LAN Ports
Button
Reset/WPS Button
External Power Supply
9V/0.85A
Dimensions (W x D x H) 114 x 94 x 26 mm
Antenna
4x 5 dBi Fixed Omni-Directional Antennas

WIRELESS:

Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz, 5 GHz
Signal Rate
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
EIRP
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
Wireless Function
Enable/Disable Wireless Radio, WMM
Security Features
Simple Parental Controls
Guest Network Access
Wireless Security:  WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
Firewall Protection
