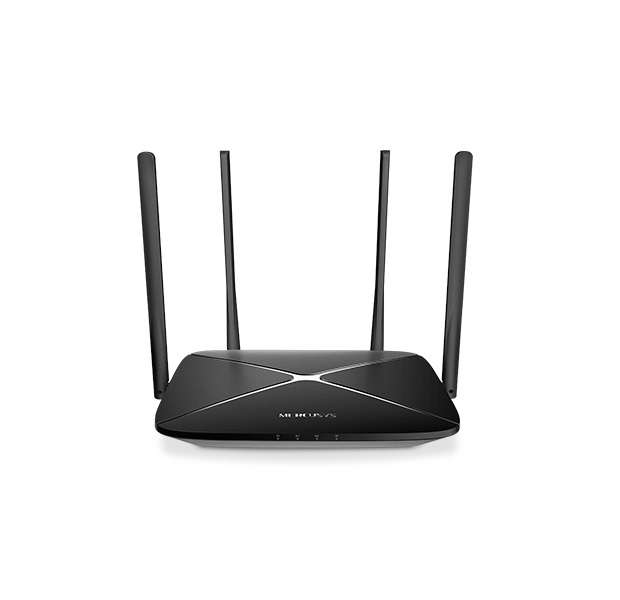

Mercusys AC12G is a Wireless dual-band router that supports speeds of up to 300Mbps on the 2.4Gz band and 867Mbps on the 5GHz band. It features full gigabit ports which are lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more. It can be shared with up to 60 devices - internet access for multiple streaming simultaneously. It has 4 x high gain external antennas which provide a powerful wireless coverage throughout your house. Setup is made easy via its intuitive webpage which will guide yours through the setup process in minutes.
xxNB THIS ROUTER DOES NOT USE A SIM CARD, FIBRE (WAN) IS REQUIREDxx
Features:
- Live your digital life at warp speed: Mercusys AC12G Wireless Dual Band Gigabit Router
- 1200Mbps Wi-Fi for endless home entertainment: Internet entertainments arrive at a
wrapping speed with the powerful AC1200 dual-band Wi-Fi. For multiple streaming
simultaneously, 300Mbps over the 2.4GHz band is great for streaming music and
shopping online, while the 867Mbps over the 5GHz band covers bandwidth-intensive
tasks like HD streaming and gaming.
- Gigabit speed for Lightning-fast surfing: Lightning-fast wired connections are delivered by
four built-in gigabit Ethernet ports. Enjoy lag-free gaming, smooth HD video streaming,
and high-speed file downloading.
- Reliably connect up to 6 devices, simultaneously: Easily share reliable wireless
connection with up to 60 wireless devices, such as phones, tablets, and smart home
devices, at the same time. Perfectly cover all network needs whether there is a party in
the house or a barbecue in the yard.
- Strong signal, great coverage: Four external 5dBi antennas provide users with broader
wireless coverage and wireless signal intensity capable of extending throughout your
large home or office. Make weak, dropped connections a thing of the past.
- Ready for smooth IPTV: IGMP Proxy/Snooping, bridge, and Tag VLAN technology allow
streaming to transfer through certain gigabit LAN ports, optimizing Hi-resolution video.
- Easy three-step installation: Simply follow the step-by-step instructions on the intuitive
webpage to set up your AC12G in minutes - no need for complicated configuration.
- Advanced security: WPA/WPA2 encryption creates an active defense against security
threats and intruders.
- 2 x 2 MIMO: Increase wireless transmission efficiency between multiple devices.
- Guest network: Keep your main network secure with a separate network for guests.
Specifications:
- External Power Supply: 9VDC/0.85A
- Antenna Type: 4 fixed Omni-directional antennas
- Frequency: 2.4 - 2.5GHz; 5.15 ~ 5.35GHz
- Reception Sensitivity: 5GHz: 11a 6M: -92dBm; 11a 54M: -75 dBm; 11ac 20M MCS8: -70
dBm; 11ac 40M MCS9: -64 dBm; 11ac 80M MCS9: -60 dBm
2.4 GHz: 11g 6M: -95 dBm; 11g 54M: -77 dBm; 11n 20M MCS7: -74 dBm; 11n 40M
MCS7: -71 dBm
- Signal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
- Button: WPS/Reset button
- Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
- Interfaces: 3 x Gigabit LAN ports, 1 x Gigabit WAN port
- Transmission Power: <20dBm (EIRP)
- Wireless Security: WPA-PSK / WPA2-PSK
- Wireless Functions: Enable/Disable Wireless radio, Wireless Statistics
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- Management: Access control, Local management, Remote management
- DHCP: Server
- Port Forwarding: Virtual server, UPnP, DMZ
- Firewall Security: IP and MAC address binding
- Guest Network: 2.4GHz Guest Network, 5GHz Guest Network
- Protocols: IPv4, IPv6
- Dynamic DNS: No-IP, DynDNS
- Certifications: CE, ROHS
- Operating temperature: 0 degrees Celcuis - 40 degrees Celcuis
- Storage temperature: -40 degrees Celcuis - 70 degrees Celcuis
- Operating humidity: 10% - 90%, non-condensing
- Storage humidity: 5% - 90%, non-condensing
- Colour: Black
- Product code: MER-AC12G
What's in the box
1x MER-AC12G
1x AC Adapter
1x Ethernet Cable
1x Quick Installation Guide
