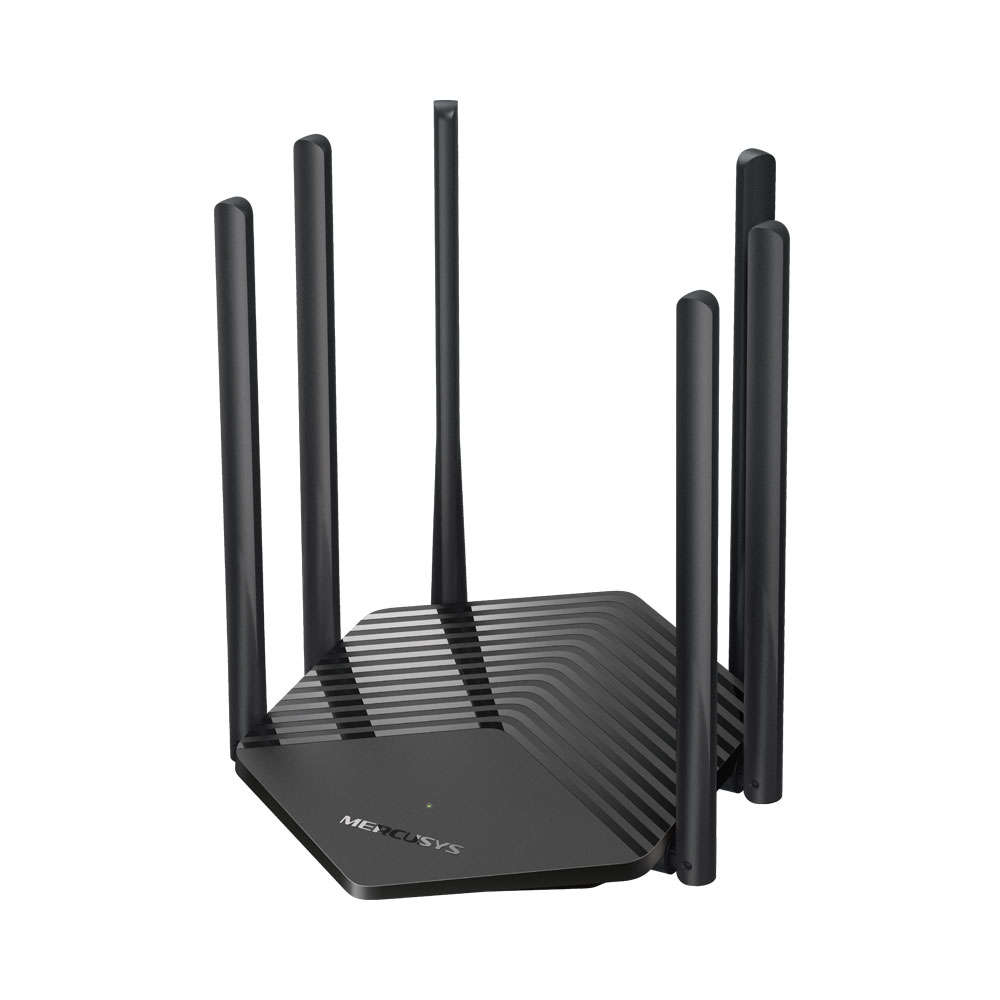

Mercusys Ac1900 2-Port Dual Band Wireless Gigabit Router

Mercusys AC1900 2-Port Dual Band Wireless Gigabit Router (MR50G)

• Fast Wi-Fi - Simultaneous 600Mbps 2.4GHz and 1300Mbps 5GHz connection for 1.9Gbps of total available bandwidth
• Maximum Range - Six high gain antennas ensure widespread Wi-Fi coverage and a stable connection
• Easy Installation - Intuitive webpage guides you through the setup process in minutes
• Gigabit Ports - One Gigabit WAN port and two Gigabit LAN ports provide up to 10x faster speeds than standard Ethernet connections

HARDWARE:

Ports

• 1 Gigabit WAN Port
• 2 Gigabit LAN Ports

Button

• WPS/Reset Button

External Power Supply

• 12V/1A

Dimensions (W x D x H)

• 175.6 x 157.2 x 45 mm

Antennas

• 6 Fixed Omni-Directional Antennas

WIRELESS:

Wireless Standards

• IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

• 2.4 - 2.5GHz, 5.15 - 5.25GHz

Signal Rate

• 600Mbps at 2.4GHz, 1300Mbps at 5GHz

Transmit Power

• CE:<20dBm (2.4GHz), <23dBm (5.15 - 5.25GHz)
• FCC:<30dBm(2.4 GHz & 5GHz)

Reception Sensitivity

• 5GHz:
• 11a 6Mbps: -98dBm, 11a 54M: -78dBm
• 11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
• 11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
• 11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm

• 2.4GHz:
• 11g 6Mbps: -97dBm, 11a 54M: -77dBm
• 11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
• 11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm

Wireless Function

• Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

• WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
