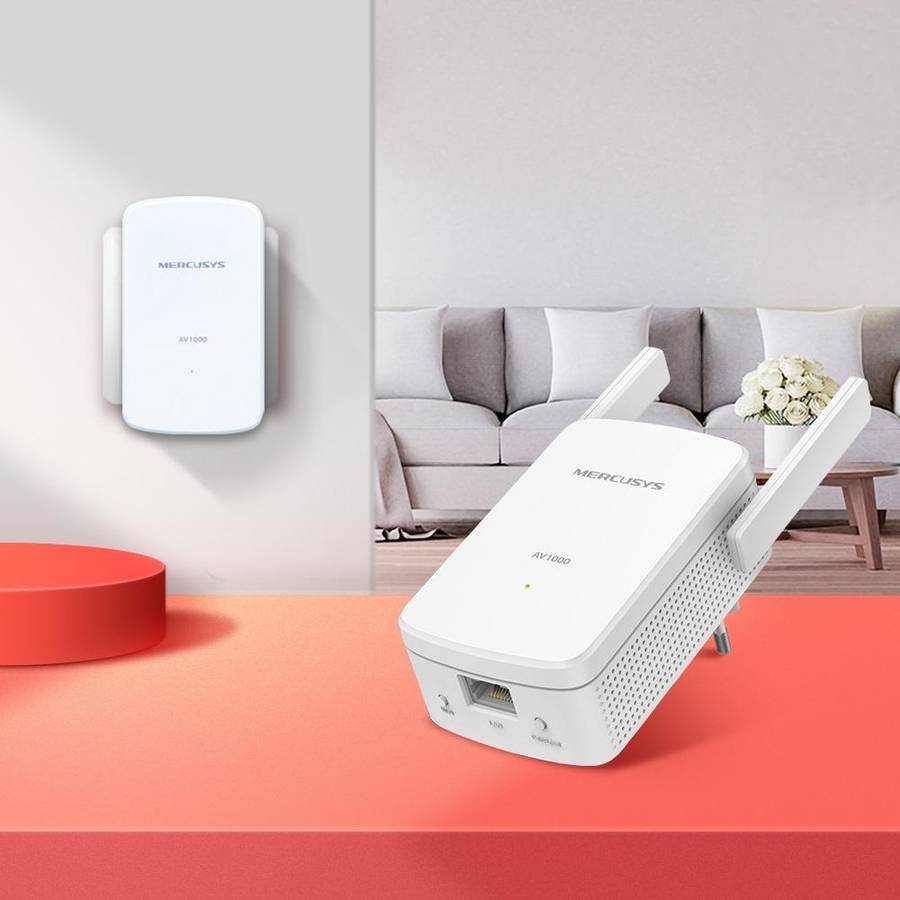

MERCUSYS AV1000 GIGABIT POWERLINE KIT

MERCUSYS AV1000 GIGABIT POWERLINE KIT - MP510 KIT

Extend Wi-Fi to Every Corner of Your Home - Where There’s an Outlet, There’s Wi-Fi

FEATURES:

Eliminate Wi-Fi Dead Zones - Extend 300Mbps Wi-Fi Wherever you need via your Home’s Existing Wiring

1000Mbps High-Speed Transfer Rate - Fast and Stable Transmissions with Advanced Home Plug AV2

Super-Fast Wired Connections - A Gigabit Port for PCs, IPTVs and Game Consoles

Plug & Play - Say Goodbye to Complex Wiring and Configuration, just Plug and Play

Easy Expansion - Expand Coverage by Simply Adding more Powerline Adapters

SPECIFICATIONS:

SOFTWARE

Modulation Technology

OFDM (PLC)

Security

Wireless: WPA2 / WPA3-Personal, WPA / WPA2-Personal, WEP Encryption

Powerline: 128-bit AES Encryption

Compatibility

Compatible with all Routers and Home Plug AV/AV2 Powerline Adapters

HARDWARE

Dimensions (W × D × H)

MP510: 112 × 84.7 × 39mm

MP500: 101 × 60 × 36mm

Button Pair/Reset Button

Standards and Protocols

Home Plug AV2, IEEE 802.3, IEEE 802.3u, IEEE802.11b/g/n

LED

Power

Power Consumption

MP510: Maximum: 6.28W, Typical: 4.29W

MP500: Maximum: 2.87W, Typical: 2.35W, Standby: 0.64W

Range Up to 300 Meters over an Existing Electrical Circuit

OTHERS

Certifications CE, RoHS

Environment

Operating Temperature: 0C-40C

Operating Humidity: 10-90 Non-Condensing

Storage Humidity: 5-90Non-Condensing

Package Contents

AV1000 Gigabit Powerline Wi-Fi Kit

1× MP510

1× MP500

Quick Installation Guide

RJ45 Ethernet Cables

System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
