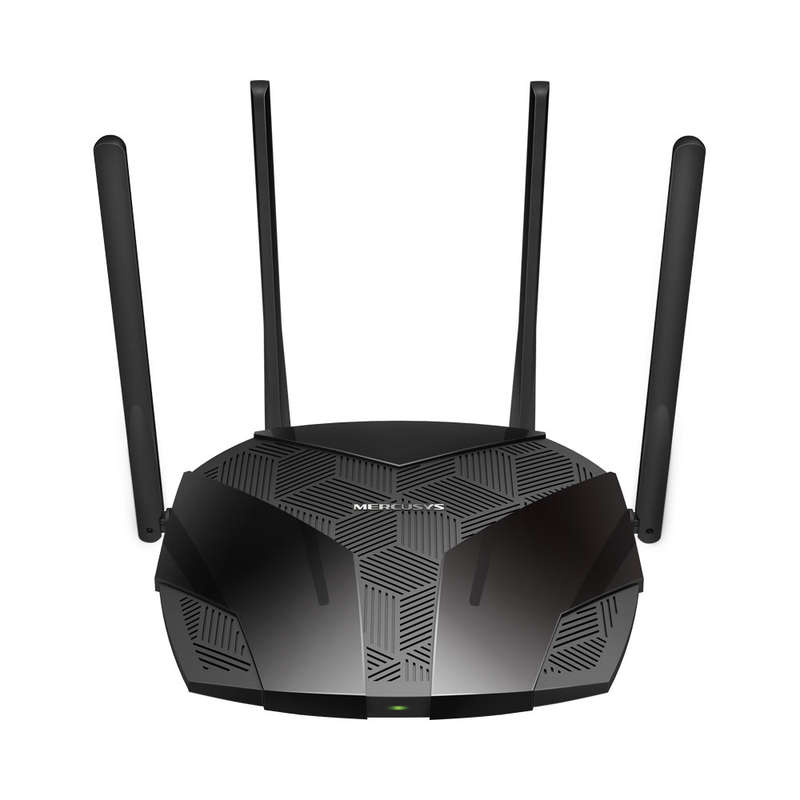

Mercusys Mr80X Ax3000 Dual-Band Wi-Fi 6 Router

Mercusys MR80X AX3000 Dual-Band Wi-Fi 6 Router

FEATURES:

• OPTIMAL WI-FI 6 SPEEDS - Optimal Wi-Fi 6 speeds reaching up to 3Gbps for faster browsing, streamings and downloading, all at the same time
• MORE DEVICES, MORE FUN - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
• WI-FI THAT GOES FARTHER - 4x multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong Wi-Fi signals in every corner
• OVERALL SECURITY PROTECTION - The latest WPA3 provides improved Wi-Fi security
• GIGABIT WIRED CONNECTIONS - Make full use of your internet access and transfer data at dizzying speeds for peak performance
• ECO-FRIENDLY POWER SAVING - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
• LESS WI-FI INTERFERENCE - Minimizes the interference from neighbouring signals to improve transmission efficiency with BSS colouring
• SMART CONNECT - Intelligently chooses the best available band for each device

SPECIFICATIONS:

HARDWARE

Ports
1x Gigabit WAN Port + 3x Gigabit LAN Ports
Dimensions (W x D x H)
208.8 × 171.6 × 41.7 mm
Antennas
4x 5dBi Fixed Omni-Directional Antennas

WIRELESS

• 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz), compatible with 11ax/ac/a/b/g/n Wi-Fi standards
• OFDMA: Allows simultaneous data transmission to and from several devices sharing one band, satisfying high network capacity demands
• MU-MIMO: Transfers data to more devices simultaneously, improving overall network efficiency
• 160 MHz Channel: Doubles the speeds offered by 80 MHz channels for faster connections
• 1024-QAM: Packs more effective data at once to achieve a 1.25× speed increase over 802.11ac 256-QAM
• Smart Connect: Intelligently chooses the best available band for each device
• Access Point Mode: Extends a wired network and makes it wireless

EIRP
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1, band2)
5 GHz < 30dBm (band3)

Security Features

• Guest Network Access
• Firewall Protection
• Wireless Security: WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
• VPN Support: OpenVPN, PPTP supported

SOFTWARE

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Management
Access Control
Local Management
Remote Management
Firewall Security
SPI Firewall, IP and MAC Address Binding
Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
