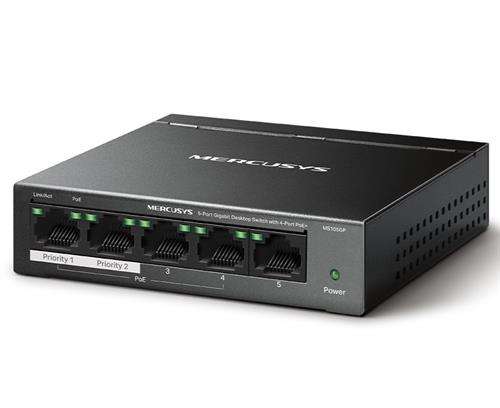

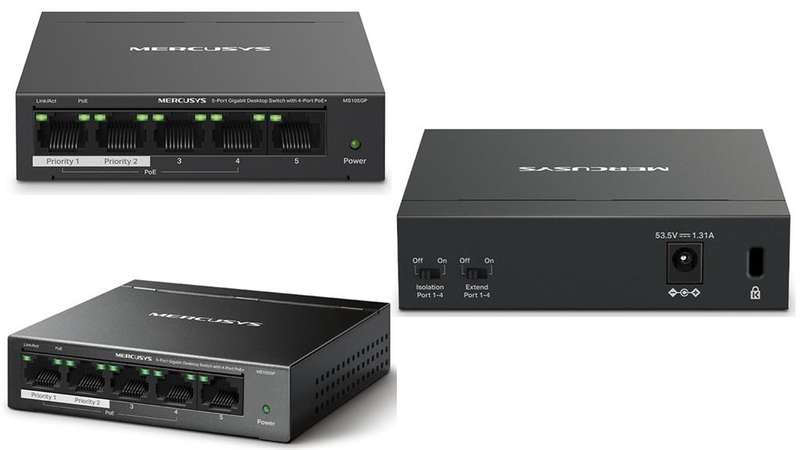

Mercusys MS105 5-Port Gigabit Desktop Switch, Retail Box, 2 year Limited Warranty
Upgrade your network with the Mercusys MS105 5-Port Gigabit Desktop Switch, featuring five full Gigabit RJ45 ports for fast and reliable connectivity. With four PoE+ ports supporting up to 30W power each, along with extended transmission distance and isolation mode for stability and security, it offers efficient performance in a durable metal casing.
Product code: MS105GP
Description: Mercusys MS105 5-Port Gigabit Desktop Switch
Dimensions: 99.8*98*25mm
PoE Ports : RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Interfaces : 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply : External Power Adapter (Output: 53.5V/1.31A)
Installation : Desktop
Wall Mount
Standards and Protocols: IEEE 802.3x Flow Control
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame: 9 KB
Mac Address Table : 2K
Max Power Consumption: 3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation: 10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)
5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
Quick Installation Guide
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
