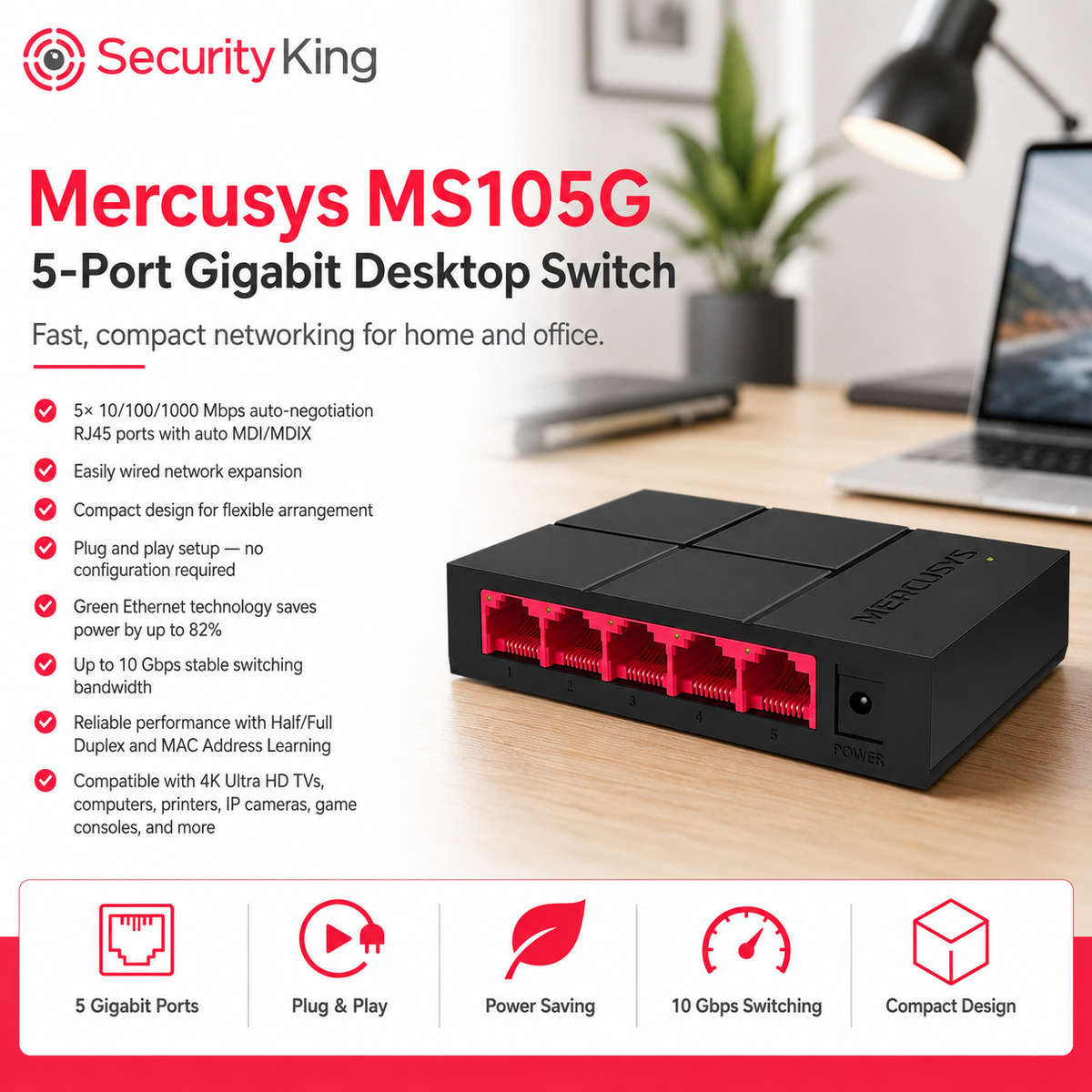

Mercusys MS105G 5-Port Gigabit Desktop Switch

Mercusys MS105G 5-Port Gigabit Desktop Switch

The Mercusys MS105G is a compact and reliable 5-port gigabit desktop switch designed to expand your wired network quickly and easily. With five 10/100/1000Mbps RJ45 ports, it allows you to connect multiple wired devices such as computers, smart TVs, printers, IP cameras, gaming consoles, NVRs, and routers to your network with fast and stable gigabit performance.

Built for homes, small offices, retail stores, CCTV setups, and general network expansion, the MS105G offers plug-and-play convenience with no configuration required. Simply connect your Ethernet cables and power adapter, and the switch is ready to use.

Each port supports auto-negotiation and Auto-MDI/MDIX, allowing the switch to automatically detect the correct speed and cable type for each connected device. With up to 10Gbps switching bandwidth, half/full duplex support, MAC address learning, and store-and-forward transfer, the MS105G helps deliver efficient and reliable data transmission across your wired network.

Its ultra-compact desktop design makes it easy to place on a desk, shelf, counter, cabinet, or network area without taking up unnecessary space.

Key Features

• 5-port gigabit desktop switch

• 5 × 10/100/1000Mbps RJ45 Ethernet ports

• Up to 10Gbps switching bandwidth

• Auto-negotiation on every port

• Auto-MDI/MDIX support

• Plug-and-play setup with no configuration required

• Half and full duplex support

• MAC address learning technology

• Store-and-forward transfer method

• Ethernet and power LED indicators

• Compact desktop design

• Energy-efficient Ethernet technology

• Ideal for expanding wired home, office, and CCTV networks

Ideal For

• Home network expansion

• Small office networks

• CCTV and IP camera systems

• NVR and DVR connectivity

• Smart TVs and media devices

• Desktop PCs and laptops

• Network printers

• Gaming consoles

• Router and access point connectivity

Technical Specifications

• Brand: Mercusys

• Model: MS105G

• Product Type: 5-Port Gigabit Desktop Switch

• Ports: 5 × 10/100/1000Mbps RJ45 Ports

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

• Data Rates: 10/100/1000Mbps half duplex, 20/200/2000Mbps full duplex

• Switching Bandwidth: 10Gbps

• Buffer Capacity: 512Kbit

• Transfer Method: Store and Forward

• Power Supply: 5V/0.6A

• Dimensions: 105 × 70 × 24.9mm

Package Includes

• 1 × Mercusys MS105G 5-Port Gigabit Desktop Switch

• 1 × Power Adapter

• 1 × Quick Installation Guide

Why Choose the Mercusys MS105G?

The Mercusys MS105G is a simple, affordable, and effective way to add more high-speed wired connections to your network. With gigabit ports, automatic connection detection, plug-and-play installation, and a compact design, it is a practical choice for improving network stability and connecting more devices without complicated setup.

Note: Ethernet cables are not included unless supplied separately by the retailer or installer.
