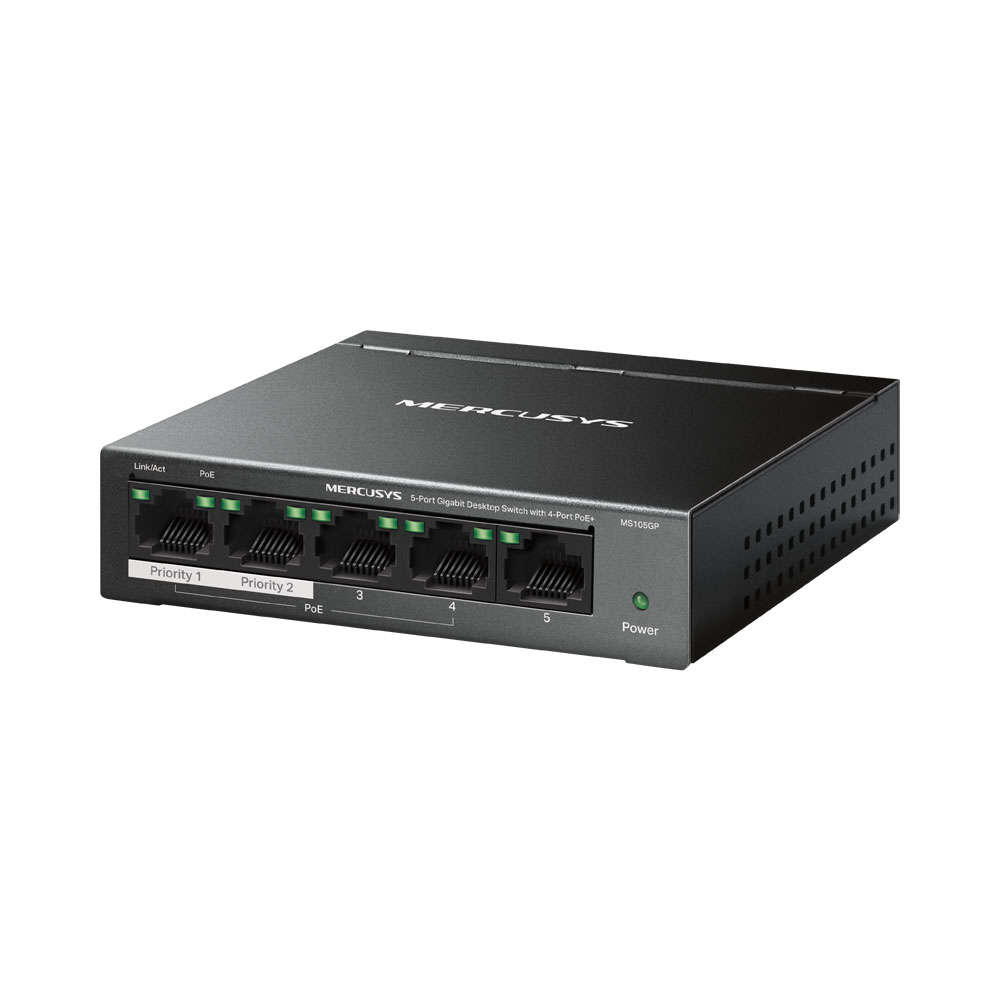

MERCUSYS MS105GP/MS108GP | Gigabit Desktop Switch with 4/7-Port PoE+
Available in a 5-Port and 8-Port
Long-Range up to 250m | Silent Operation | 65W PoE Budget
FEATURES:
SPECIFICATIONS:
| MS105GP | MS108GP | |
| 5-Port Gigabit Desktop Switch with 4-Port PoE+ | 8-Port Gigabit Desktop Switch with 7-Port PoE+ | |
| Dimensions (W D H) | 99.8 98 25mm | 171 98 27mm |
| PoE Ports | RJ45 | |
| Standard: Compliant with 802.3 af/at Powered Devices | ||
| PoE Ports: Port 1- Port 4 | PoE Ports: Port 1- Port 7 | |
| PoE Power Budget: 65W | ||
| External Power Supply | External Power Adapter (Output: 53.5V/1.31A) | |
| Installation | Desktop | |
| Wall Mount | ||
| Standards and Protocols | IEEE 802.3x Flow Control | |
| Data Rates | 10/100/1000Mbps at Half Duplex | |
| 20/200/2000Mbps at Full Duplex | ||
| Jumbo Frame | 9KB | 15KB |
| Mac Address Table | 2K | 8K |
| Max Power Consumption | 3.13W (220V / 50Hz, no PD connected) | 5.07W (220V / 50Hz, no PD connected) |
| 75.15W (220V / 50 Hz, with 65W PD connected) | 77.33W (220V / 50 Hz, with 65W PD connected) | |
| Max Heat Dissipation | 10.64 BTH/h (no PD connected) | 17.238 BTH/h (no PD connected) |
| 255.51 BTH/h (with 65W PD connected) | 262.922 BTH/h (with 65W PD connected) | |
| Package Contents | 5-Port Gigabit Desktop Switch with 4-Port PoE+ | 8-Port Gigabit Desktop Switch with 7-Port PoE+ |
| Power Adapter | ||
| Quick Installation Guide | ||
| Environment | Operating Temperature: 0C~40C | |
| Storage Temperature: -40C~70C | ||
| Operating Humidity: 10%~90% RH non-condensing | ||
| Storage Humidity: 5%~95% RH non-condensing | ||
