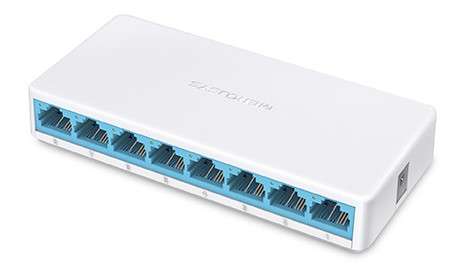

Expand your wired network effortlessly with the Mercusys MS108 8-Port 10/100Mbps Desktop Switch, featuring auto-negotiation RJ45 ports for seamless connectivity. Its compact design allows for flexible placement, while plug-and-play setup ensures hassle-free installation without any configuration needed.
Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Specifications
Product code: MS108
Description: Mercusys MS108 8-Port 10/100Mbps Desktop Switch
Software Transfer: Method Store
Dimensions (W X D X H) 127 x 60.3 x 22 mm
Interfaces 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX External
Power Supply External power adapter
(Output: 5.0VDC / 0.6A)
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity Fanless
Data Rates: 10/100Mbps at half duplex
20/200Mbps at full duplex Buffer Capacity 768Kb Jumbo Frame 2KB Switching Capacity 1.6Gbps LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
OthersCertifications CE, RoHS Package Contents
8-Port 10/100Mbps Desktop Switch
MS108
Quick installation guide Environment
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
