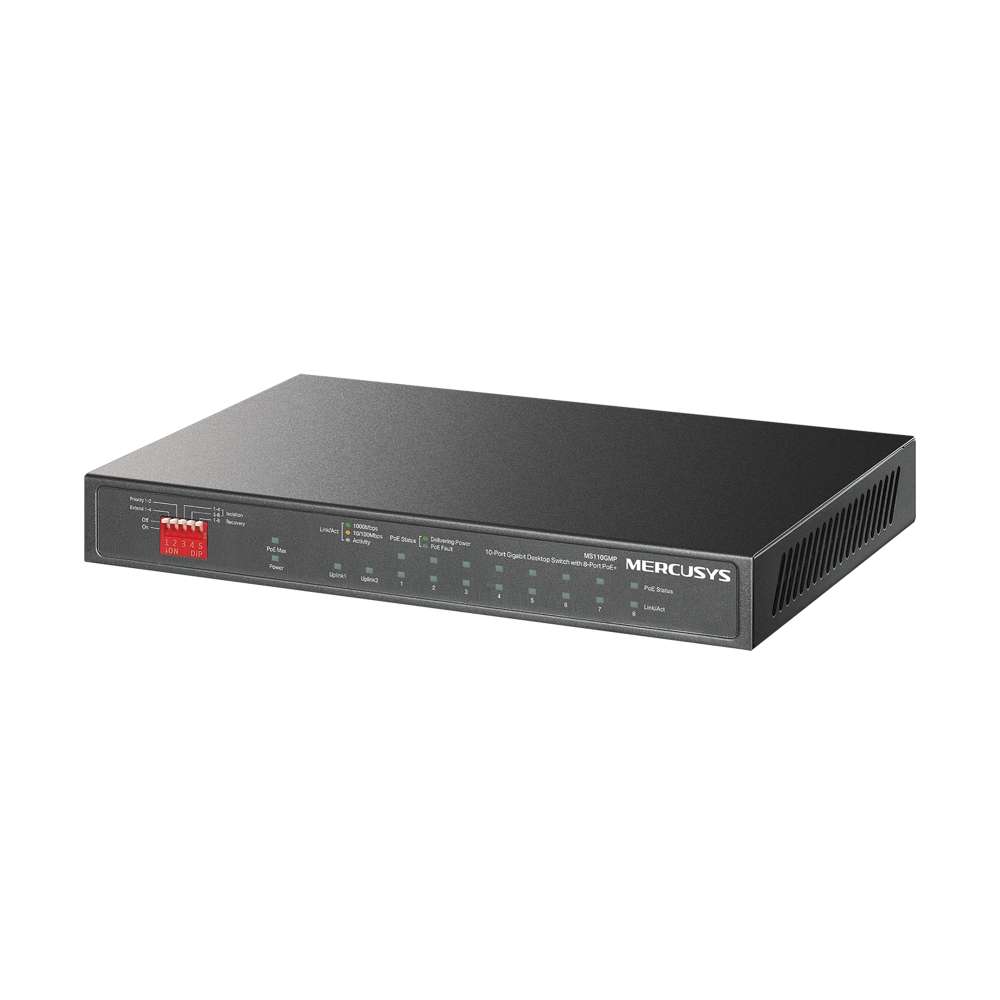

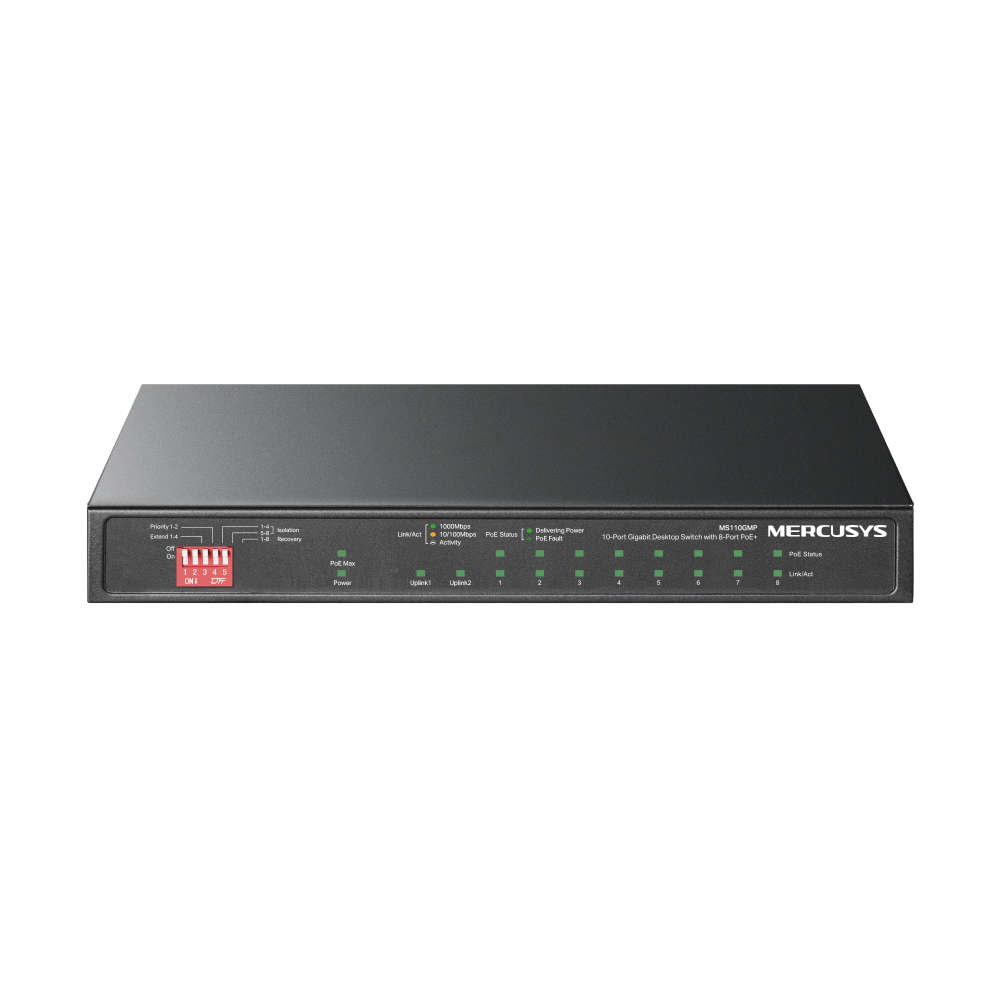

MERCUSYS MS110GMP 10-Port Gigabit Desktop Switch with 8-Port PoE+
Compact Gigabit PoE+ Switching for Cameras, APs and Small Networks.

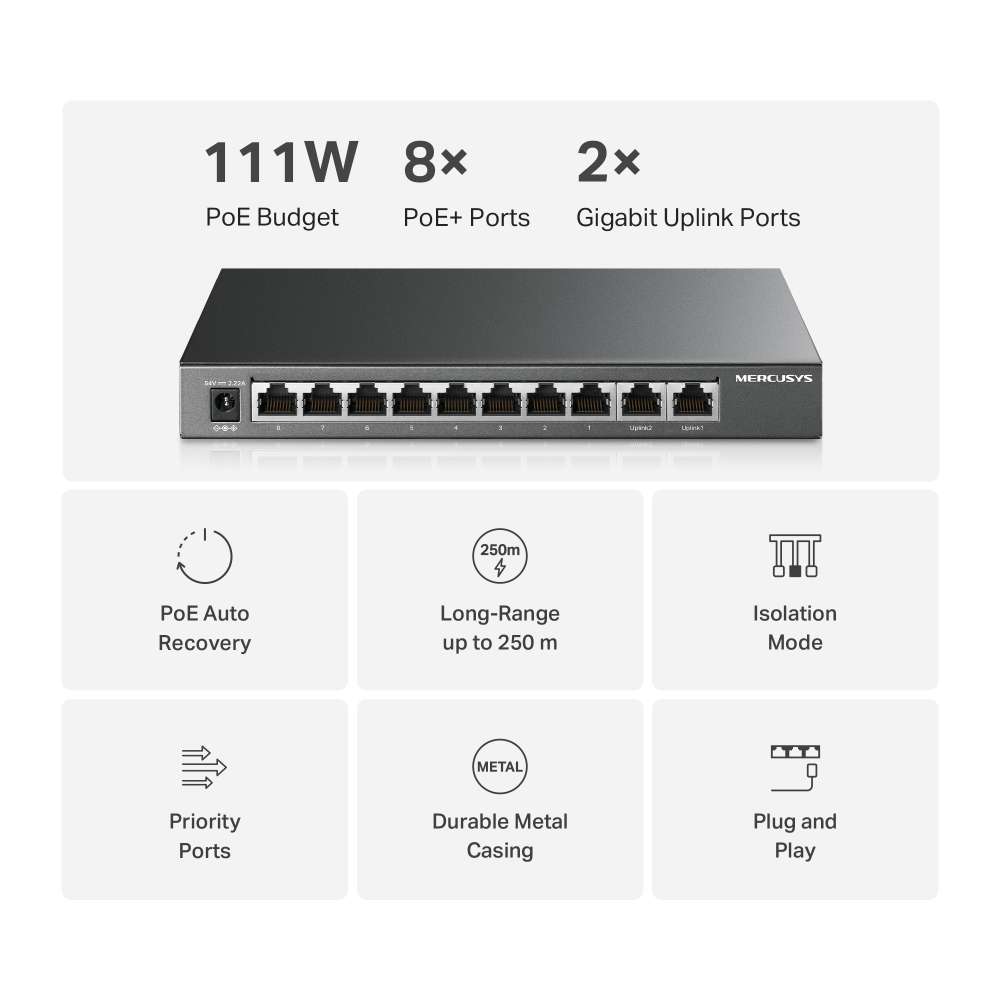

The MERCUSYS MS110GMP is a 10-port Gigabit desktop switch designed to simplify wired network and PoE deployments. It features 8× Gigabit PoE+ ports and 2× Gigabit uplink ports, delivering data and power over a single cable for IP cameras, access points, VoIP phones and other compatible PoE devices. With a 111W total PoE budget and up to 30W per PoE port, it is ideal for small business, surveillance and office networks. Extend Mode supports transmission up to 250m, while Priority Mode, Isolation Mode and PoE Auto Recovery help improve performance, security and device reliability. The fanless plug-and-play design keeps installation simple and quiet.
FEATURES
10-Port Gigabit Connectivity - Provides 8× Gigabit PoE+ ports and 2× Gigabit uplink ports

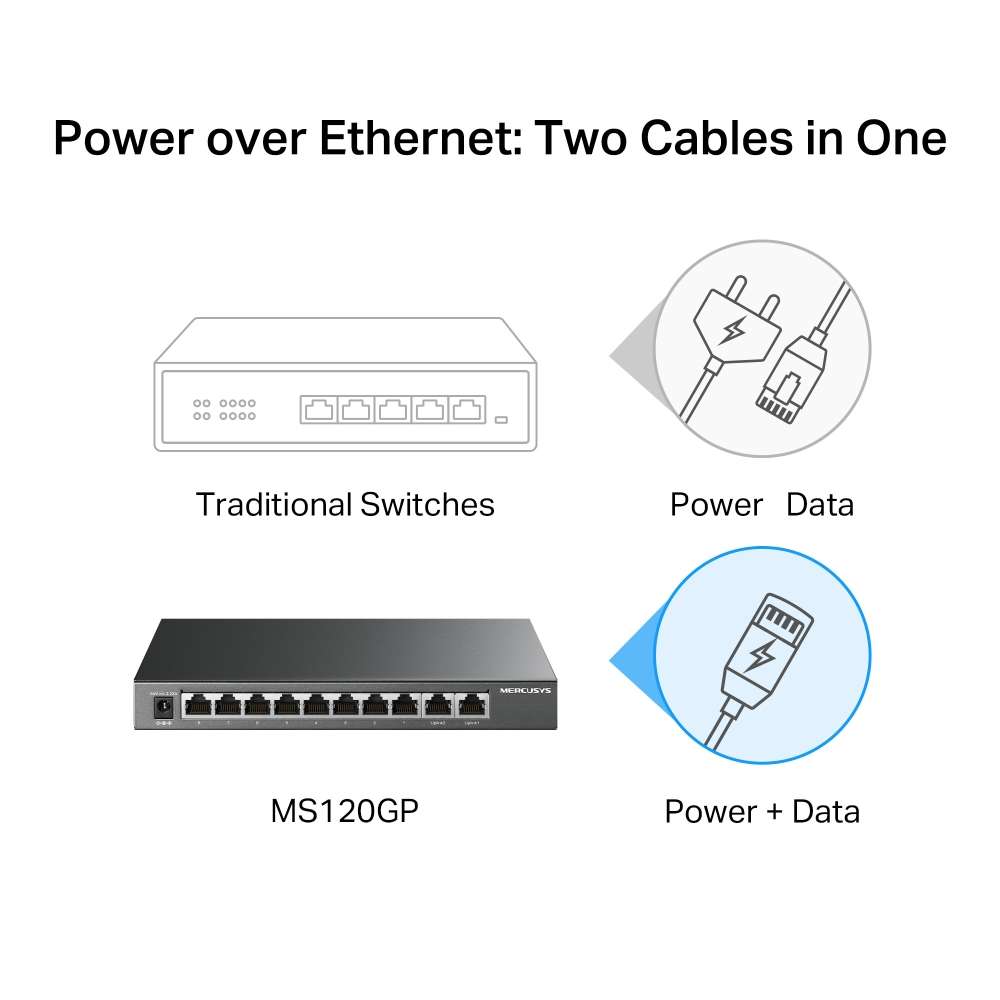

8-Port PoE+ Output - Transfers data and power over one cable for compatible PoE devices
111W PoE Budget - Supports multiple IP cameras, access points and VoIP phones
30W Per PoE Port - Delivers up to 30W per port for IEEE 802.3af/at compliant devices
Extend Mode - Supports data and power transmission up to 250m
Priority Mode - Gives ports 1-2 higher priority for sensitive applications

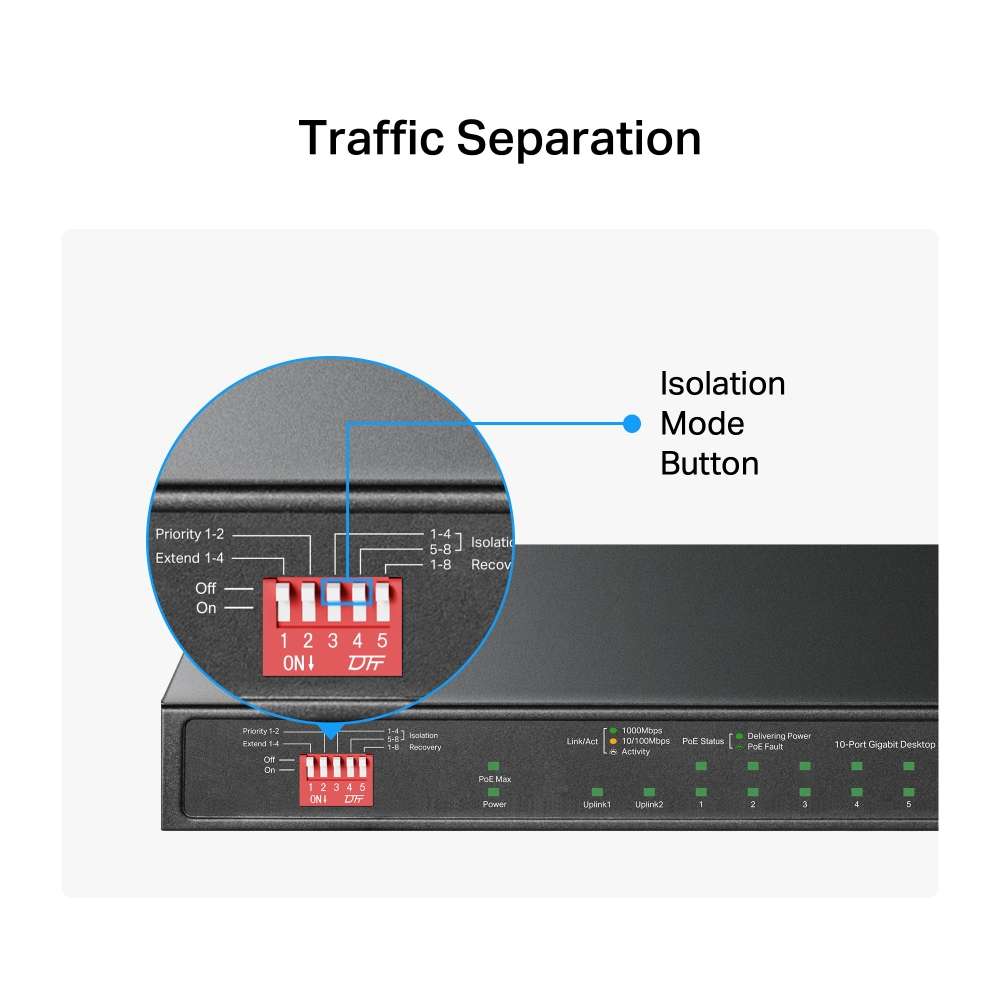

Isolation Mode - Separates client traffic for improved security and performance

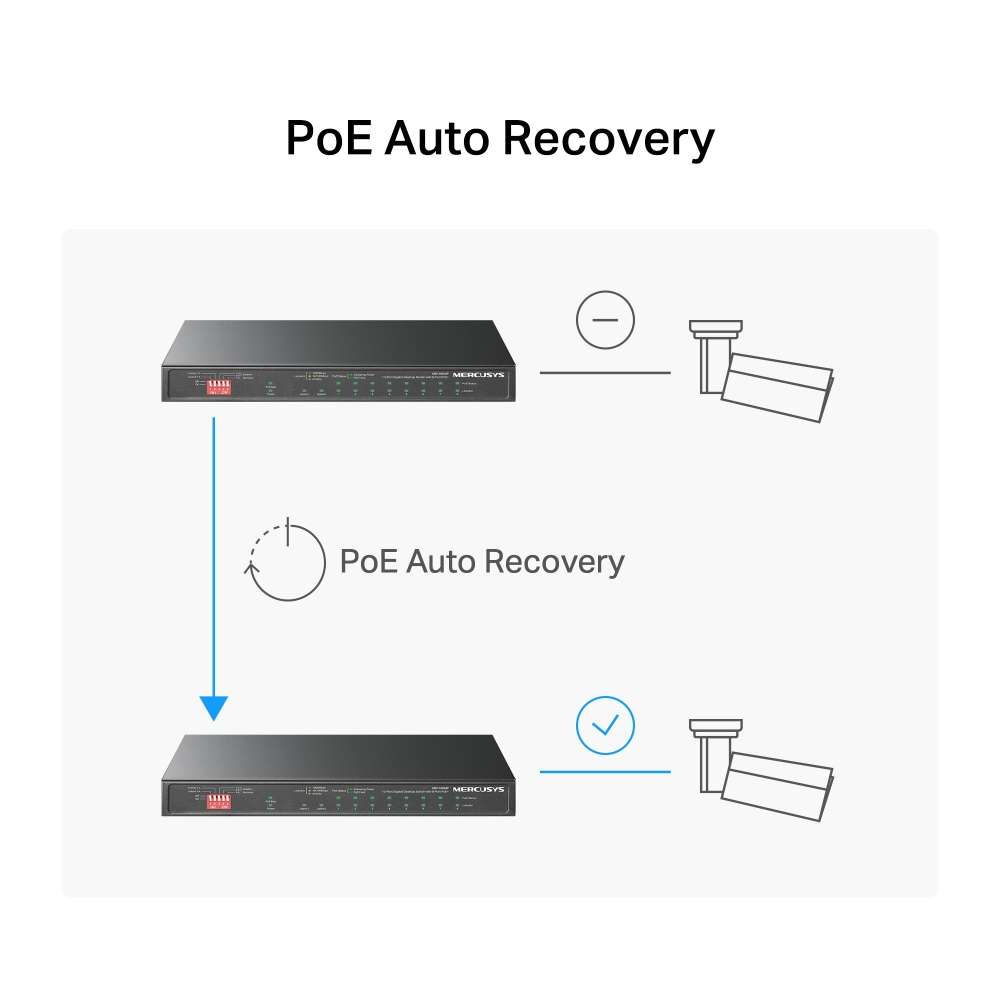

PoE Auto Recovery - Automatically reboots dropped or unresponsive PoE-powered devices
Auto-Negotiation - Automatically adjusts port speed for connected devices
Auto MDI/MDIX - Simplifies installation without needing crossover cables
Fanless Design - Reduces noise for quiet desktop or office placement
SPECIFICATIONS

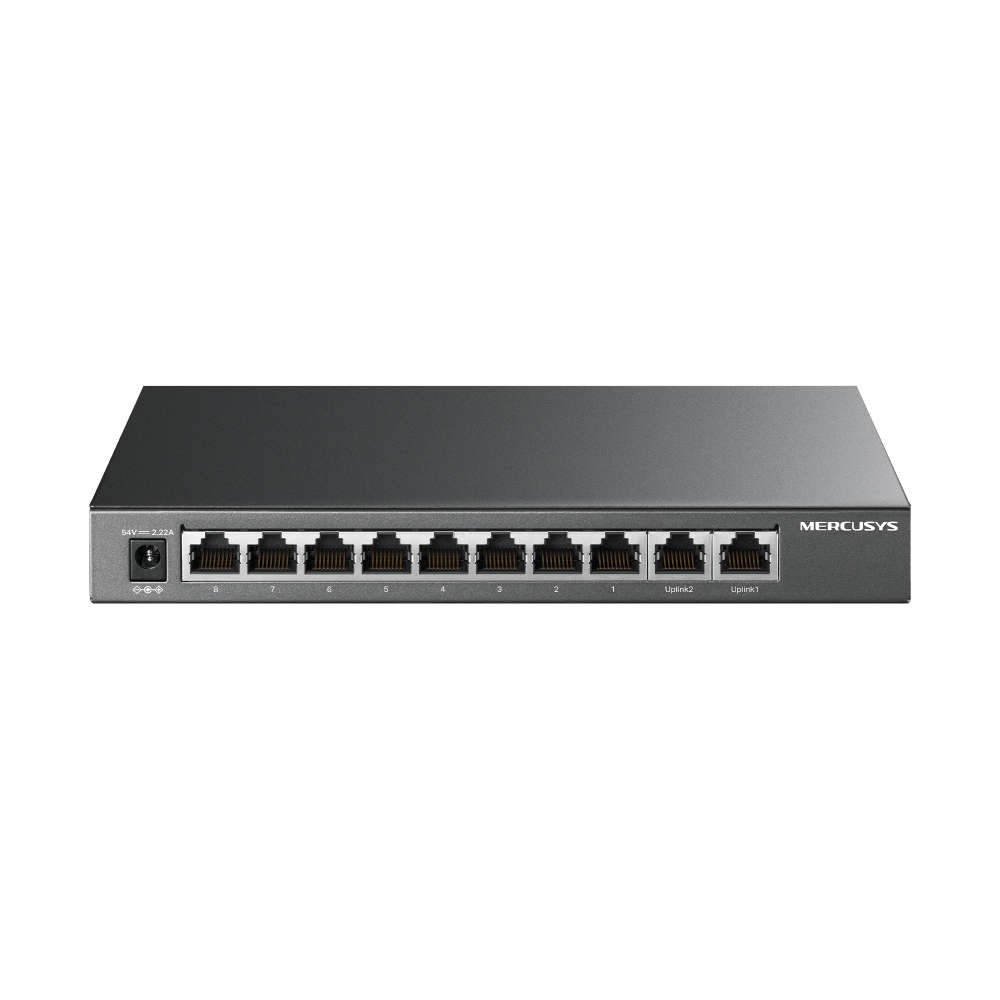

Interface: 10× 10/100/1000Mbps RJ45 Ports
PoE Ports: Ports 1-8
Uplink Ports: 2× Gigabit RJ45 Uplink Ports
PoE Standard: IEEE 802.3af/at
PoE Output: Up to 30W per PoE Port
PoE Power Budget: 111W
Switching Capacity: 20Gbps
Forwarding Mode: Store-and-Forward
MAC Address Table: 4K, Auto-Learning, Auto-Ageing
Network Media: 10BASE-T, 100BASE-TX and 1000BASE-T
Auto-Negotiation: Supported
Auto MDI/MDIX: Supported
PoE Auto Recovery: Supported
Extend Mode: Supported
Isolation Mode: Supported
Priority Mode: Supported
Flow Control: Supported
Fanless Design: Supported
LEDs: Power, Link/Act, PoE Status, PoE Max.
External Power Adapter: 54V DC 2.22A
Max. Power Consumption: 7.37W at 220V/50Hz with No PD Connected, 129.4W at 220V/50Hz with 111W PD Connected
Max. Heat Dissipation: 25.13BTU/h at 220V/50Hz with No PD Connected, 441.25BTU/h at 220V/50Hz with 111W PD Connected
Dimensions: 209 × 126 × 26mm
Operating Temperature: -10~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH, Non-Condensing
Storage Humidity: 5~90% RH, Non-Condensing
Certification: CE, RoHS
NOTES

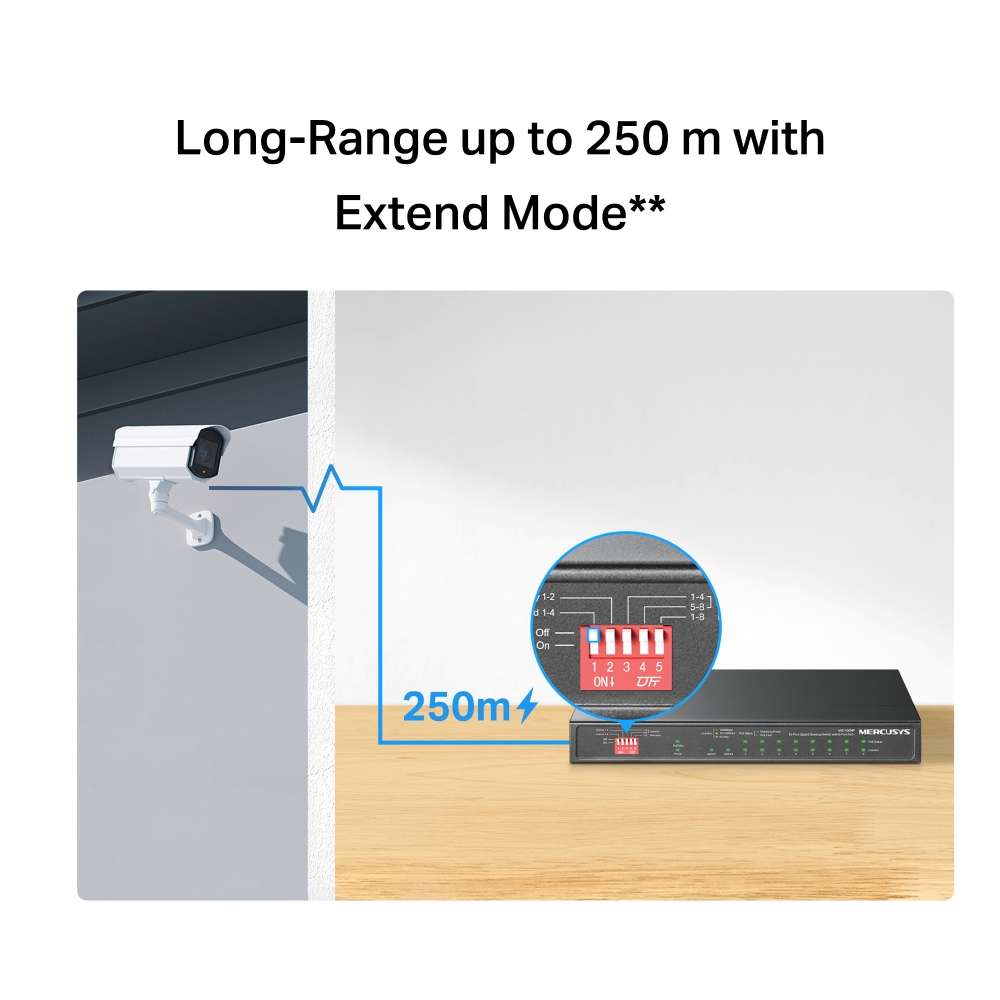

Extend Mode supports up to 250m data and power transmission, but port speed is reduced to 10Mbps

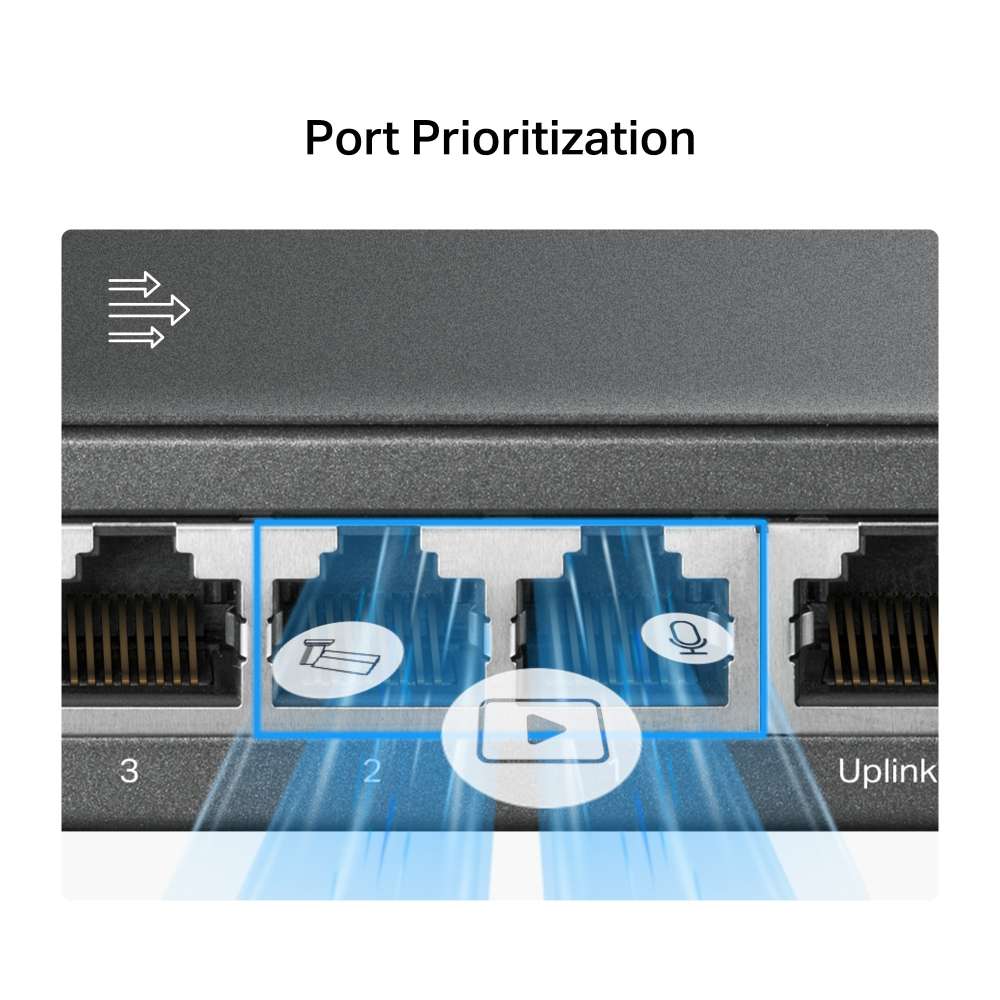

Ports 1-2 have higher priority when network congestion occurs

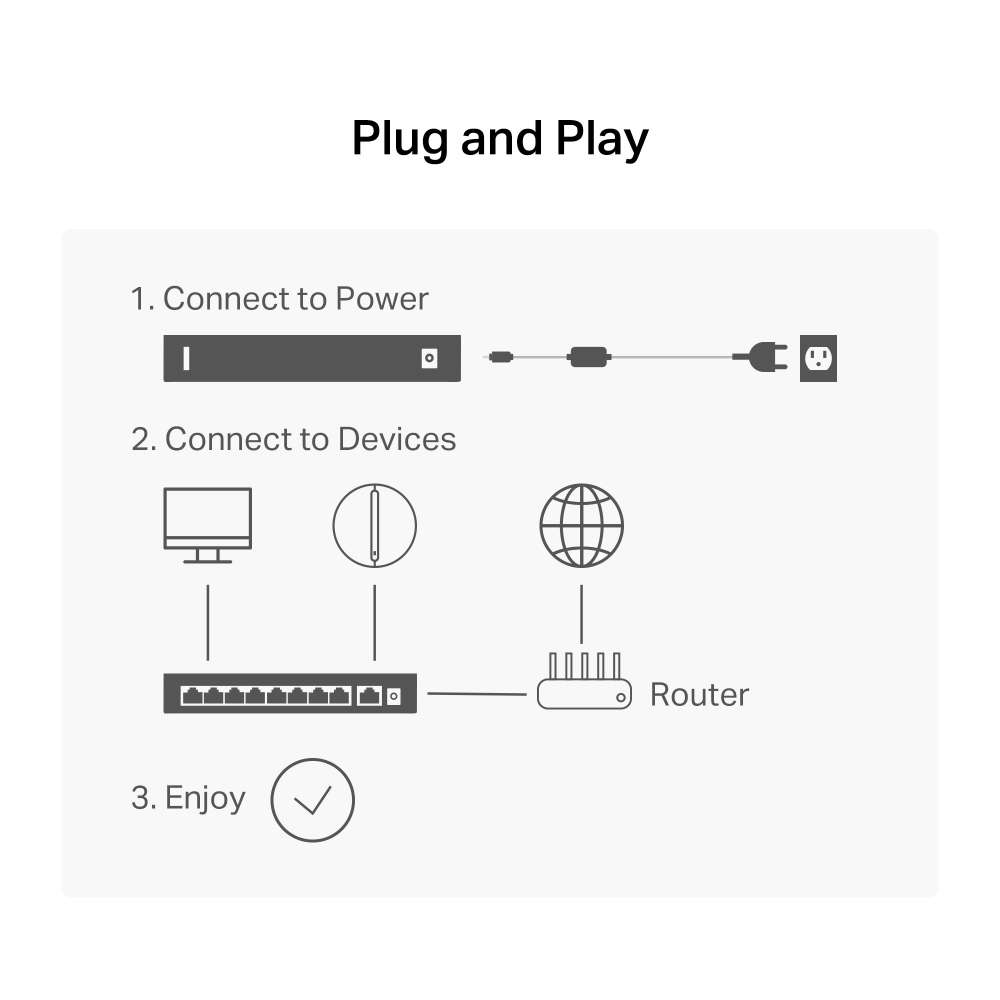

Uplink ports are recommended for connecting to routers, gateways or upstream network devices
