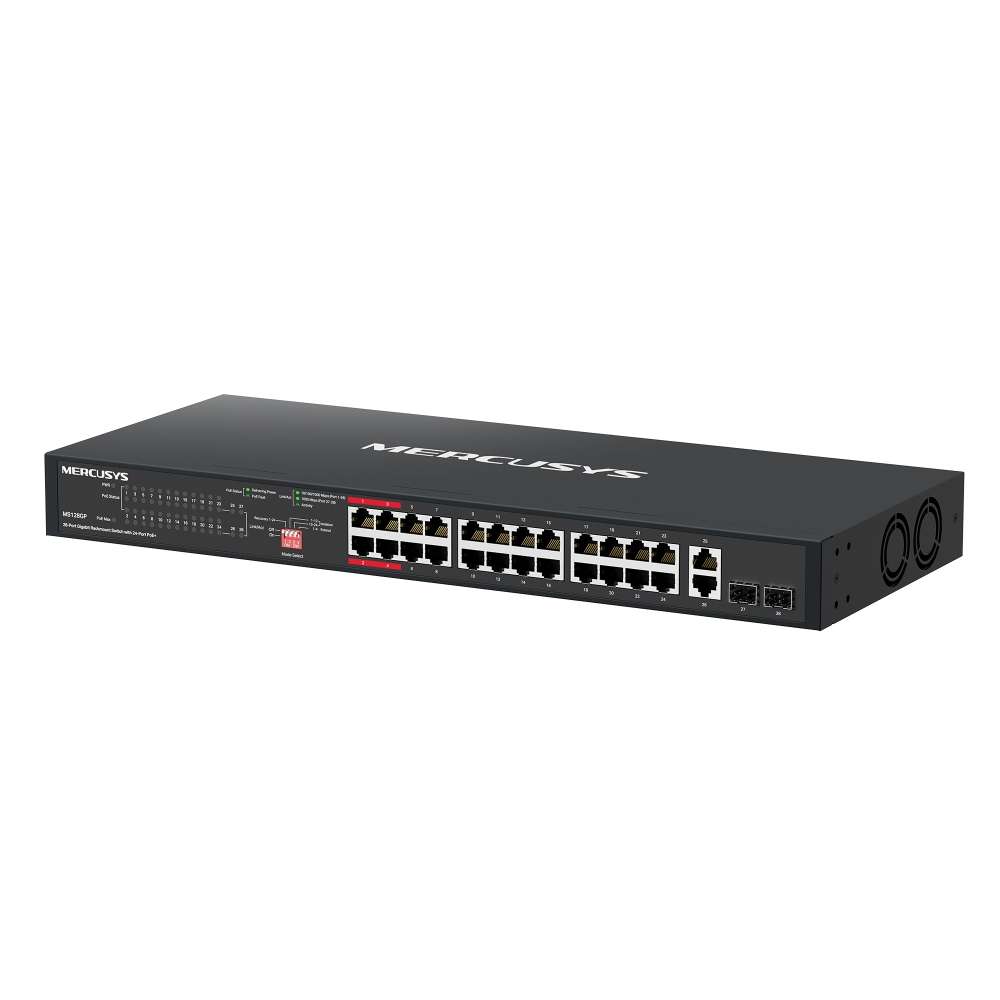

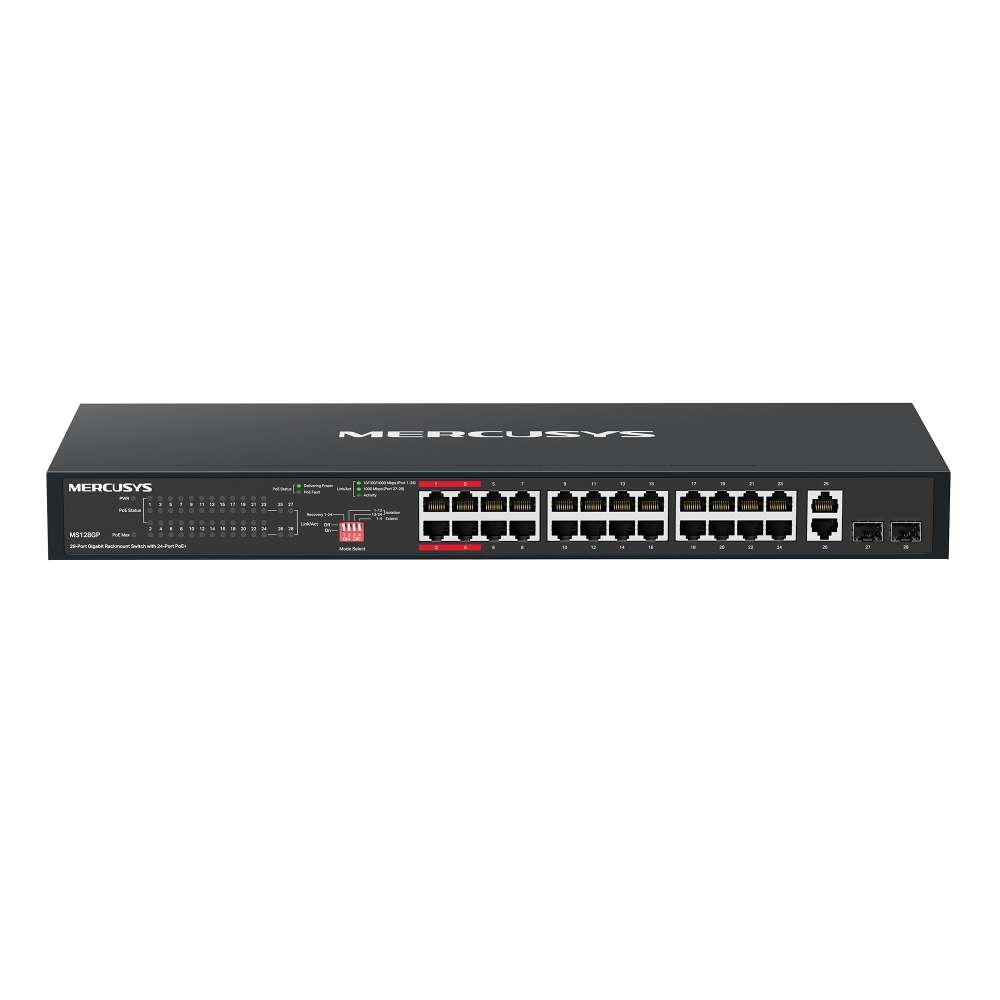

MERCUSYS MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+
High-Power Gigabit PoE Switching for Surveillance and Business Networks.
The MERCUSYS MS128GP is a 28-port Gigabit rackmount switch designed for small and medium business networks, IP surveillance systems and high-density PoE deployments. It features 24× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports and 2× Gigabit SFP slots for flexible copper and fibre connectivity. With a 295W PoE power budget and up to 30W per PoE port, it can power compatible IP cameras, access points, VoIP phones and other PoE devices. Extend Mode supports data and power transmission up to 250m, while Isolation Mode, Priority Mode and PoE Auto Recovery help improve reliability, security and performance. Plug-and-play setup makes deployment simple with no configuration required.
FEATURES
28-Port Gigabit Switching - Provides 24× Gigabit PoE+ RJ45 ports, 2× Gigabit RJ45 ports and 2× Gigabit SFP slots

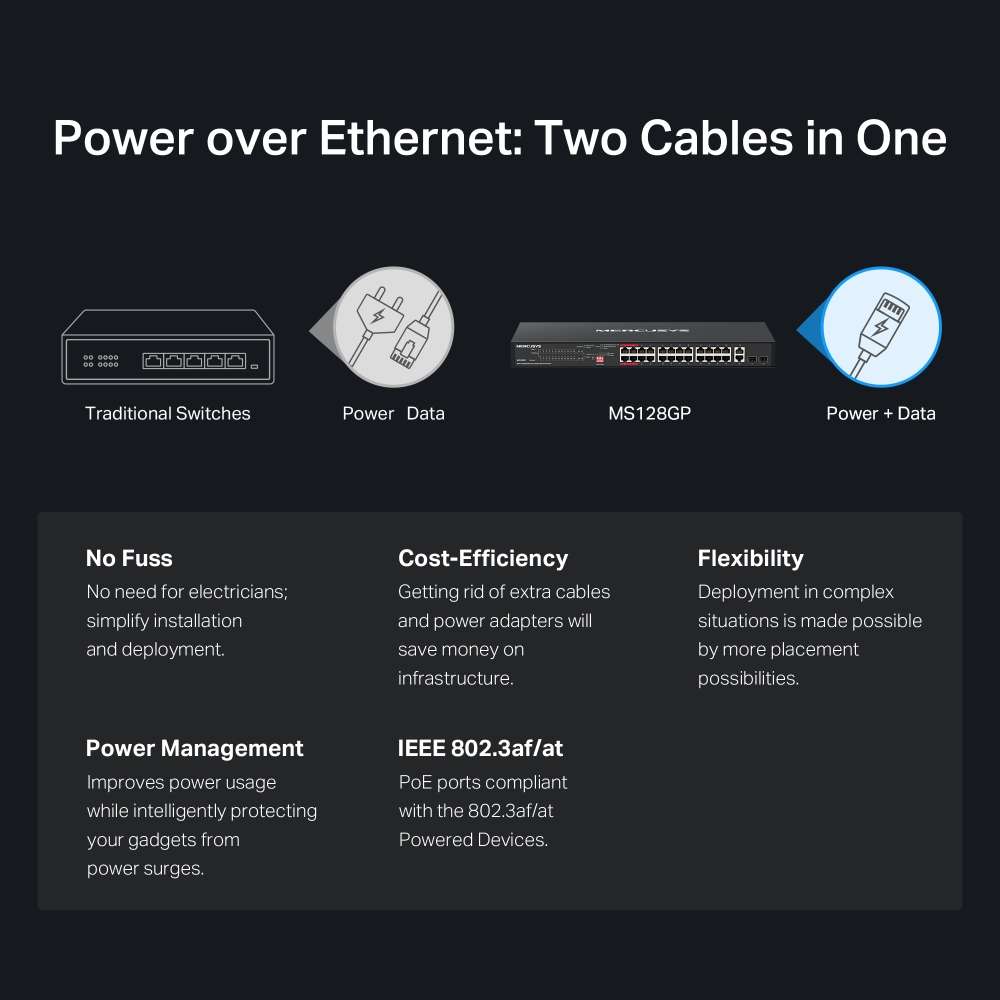

24-Port PoE+ Output - Powers compatible IP cameras, access points, VoIP phones and other PoE devices
295W PoE Budget - Supports high-power PoE deployments across multiple connected devices
30W Per PoE Port - Delivers up to 30W per PoE+ port for IEEE 802.3af/at compliant devices
Gigabit SFP Uplinks - Provides fibre uplink options for longer-distance network connections

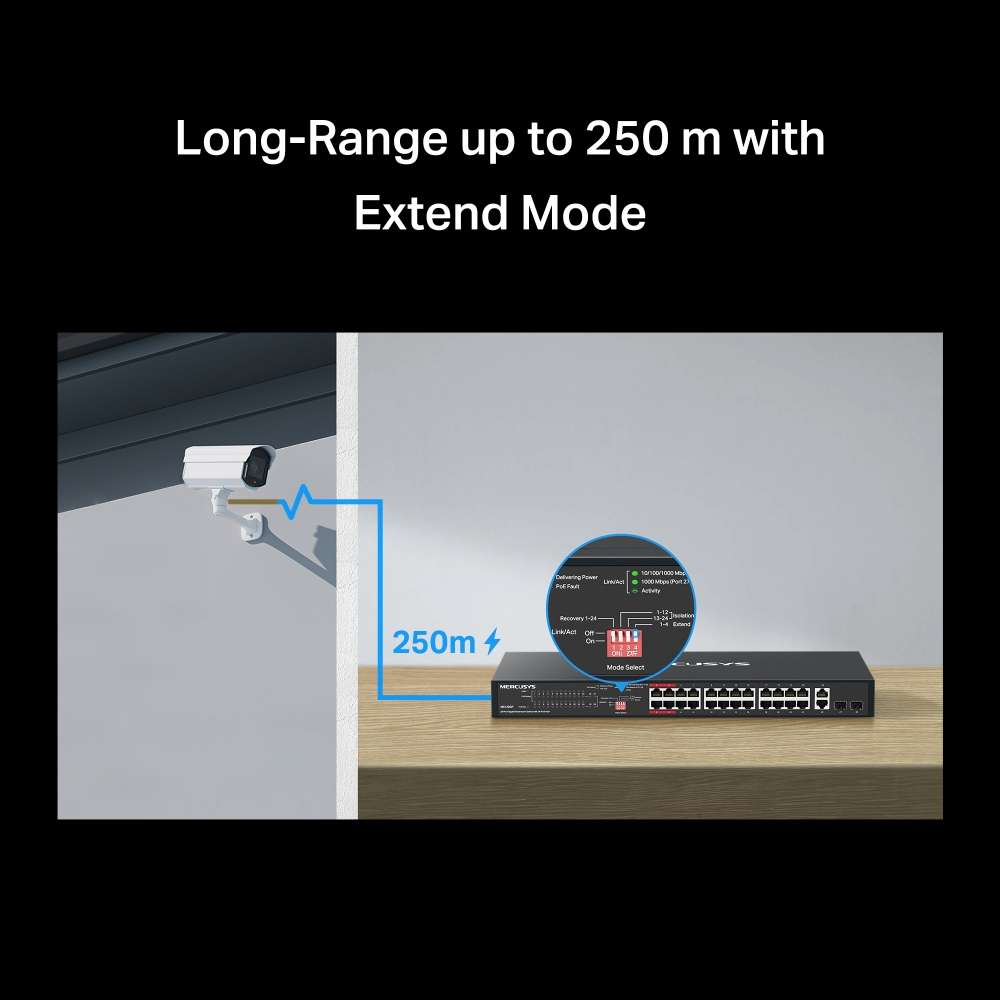

Extend Mode - Supports data and power transmission up to 250m for selected PoE deployments

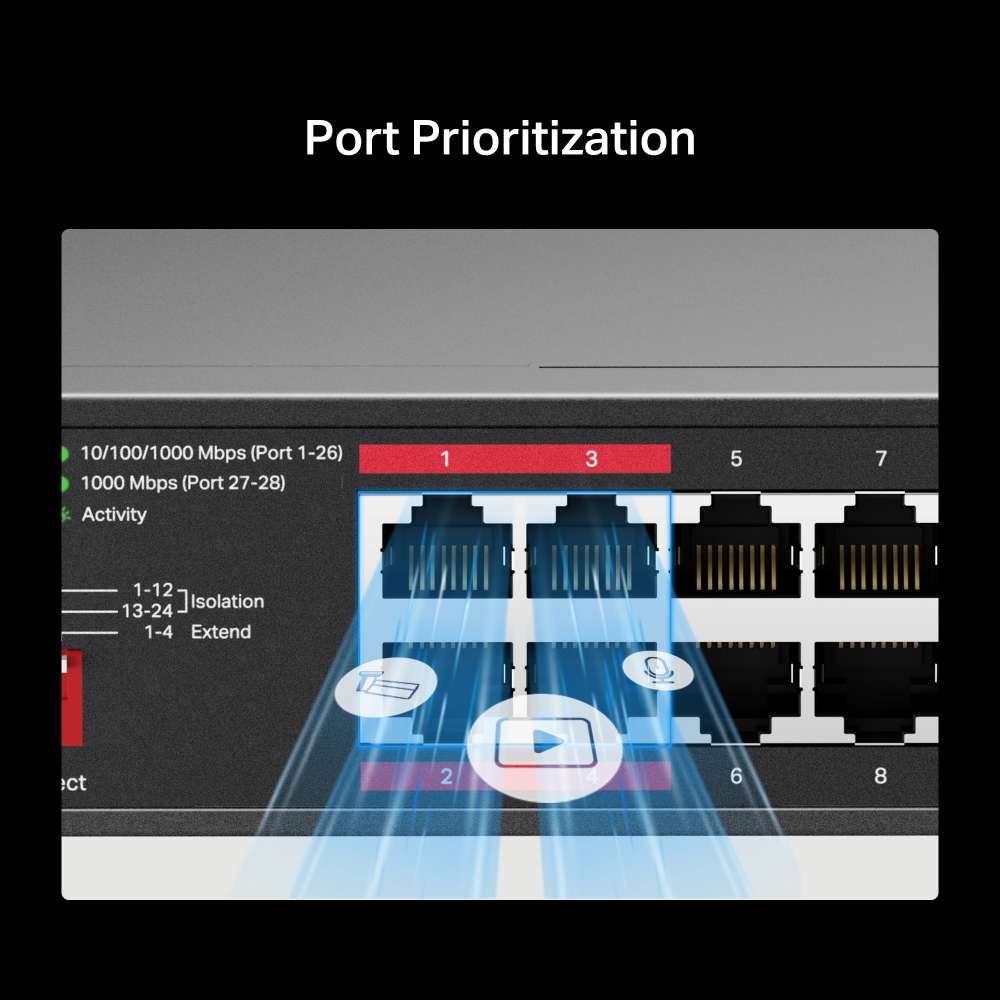

Priority Mode - Gives ports 1-4 higher priority for sensitive applications such as video monitoring

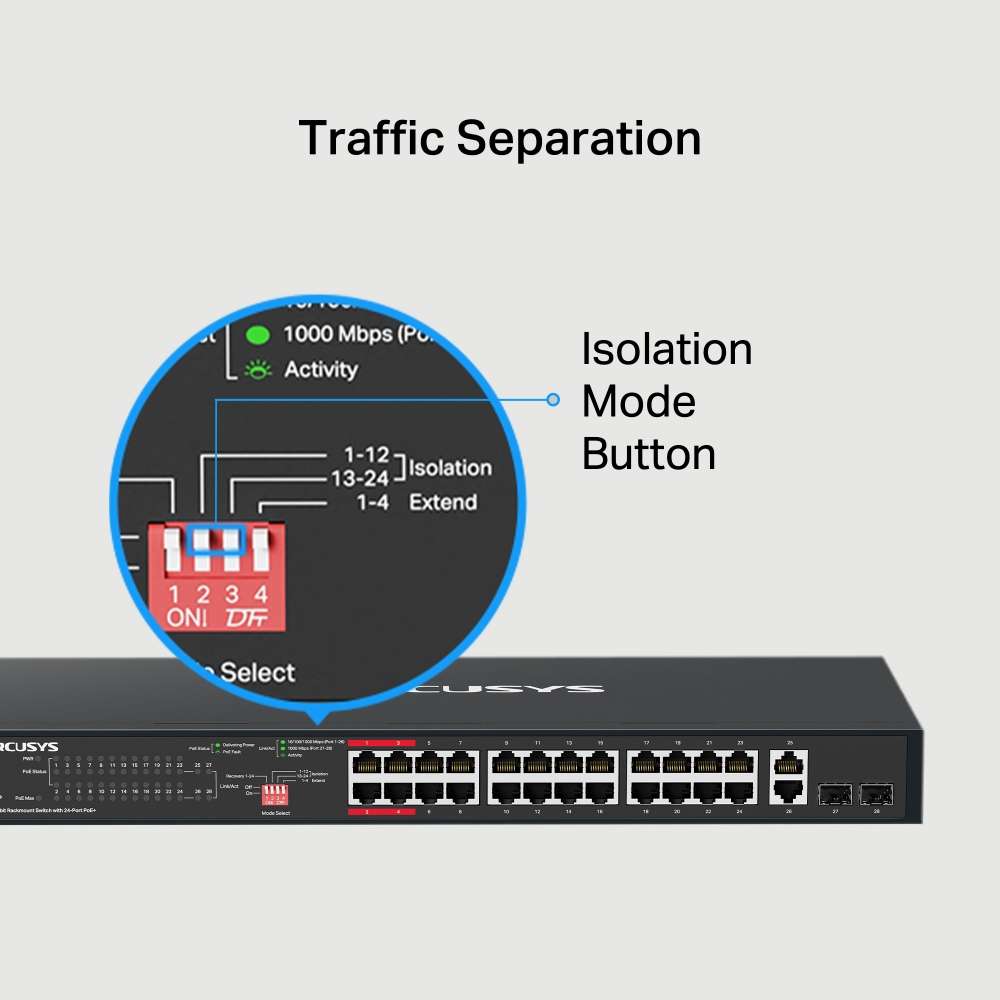

Isolation Mode - Separates client traffic to improve network security and performance

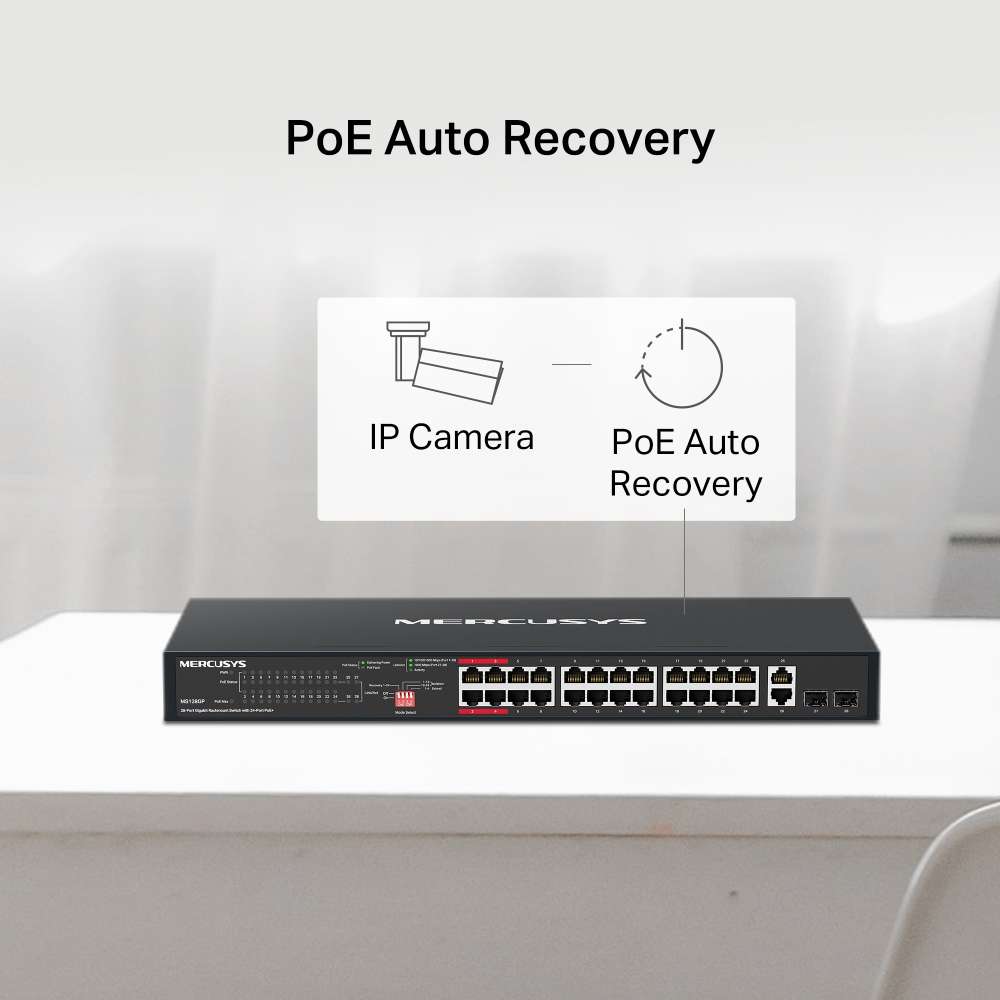

PoE Auto Recovery - Automatically reboots dropped or unresponsive PoE devices
Auto-Negotiation - Automatically adjusts port speed for connected devices
Auto MDI/MDIX - Supports easier cable connection without crossover cable concerns

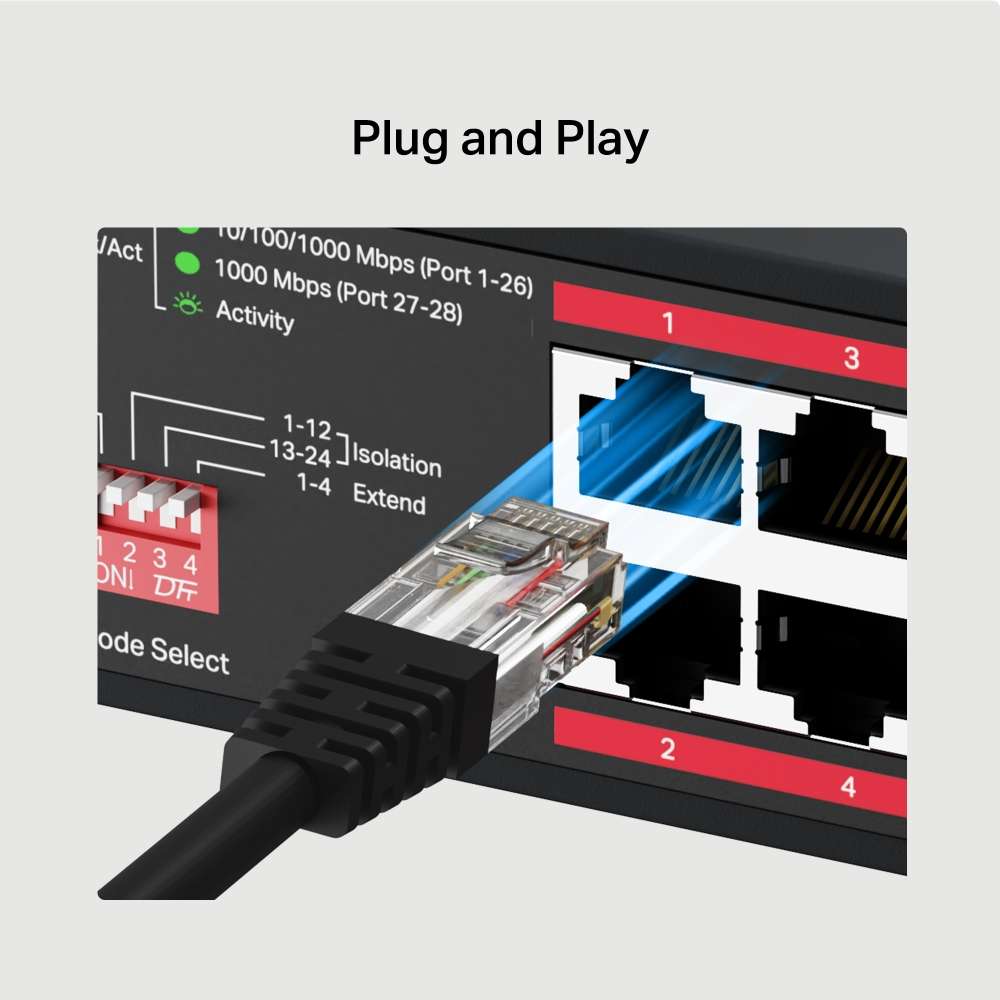

Plug-and-Play - No configuration or central management required
Rackmount Design - Suitable for 19-inch cabinet and rack installations
SPECIFICATIONS
Interface: 24× 10/100/1000Mbps PoE+ RJ45 Ports, 2× 10/100/1000Mbps RJ45 Ports, 2× Gigabit SFP Slots
PoE Standard: IEEE 802.3af/at
PoE Ports: Ports 1-24, Up to 30W per Port
PoE Power Budget: 295W
Switch Capacity: 56Gbps
Forwarding Mode: Store-and-Forward
MAC Address Table: 8K, Auto-Learning, Auto-Ageing
Transmission Medium: 10BASE-T, 100BASE-TX, 1000BASE-T and 1000BASE-X
Auto-Negotiation: Supported
Auto MDI/MDIX: Supported
PoE Auto Recovery: Supported
Extend Mode: Supported
Isolation Mode: Supported
Flow Control: Supported
Fan Quantity: 2
LEDs: Power, Link/Act, PoE Status, PoE Max.
Standby Power Consumption: 3.74W at 110V 60Hz, 4.01W at 220V 50Hz
Max. Power Consumption: 350.14W at 110V 60Hz, 336.58W at 220V 50Hz
Max. Heat Dissipation: 1193.98BTU/hr at 110V 60Hz, 1147.74BTU/hr at 220V 50Hz
Noise Level: 46.5dBA Max., 29.5dBA Min. at 50cm
Power Supply: 100~240V AC, 50/60Hz
Dimensions: 440 × 180 × 44mm
Operating Temperature: -10~45°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH, Non-Condensing
Storage Humidity: 5~90% RH, Non-Condensing
Certification: CE, RoHS
NOTES
Extend Mode supports up to 250m data and power transmission, but port speed is reduced to 10Mbps
SFP modules are sold separately
Ports 1-4 have higher transmission priority when network congestion occurs
The switch is unmanaged and does not require configuration or central management
