Mercusys MW302R. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: WPA-PSK,WPA2-PSK

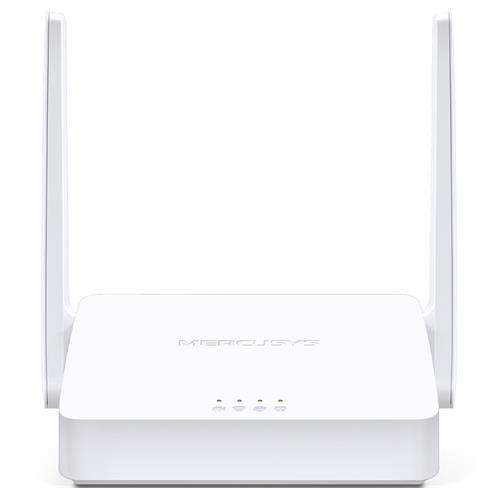

Upgrade your home network with the Mercusys WiFi 4 Router MW302R, offering fast and stable connections at speeds up to 300 Mbps. With high-gain external antennas ensuring broader coverage, this router delivers strong Wi-Fi signals to every corner of your home. Featuring four modes in one device and intuitive setup, it's easy to customize and manage your network for optimal performance.
Features
Fast Daily Wi-Fi
The MW302R provides fast, stable Wi-Fi for all your connected devices. Wireless speeds of up to 300 Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.
Broader Coverage
Two external 5 dBi antennas powered with advanced antenna technology provide broader wireless coverage and signal intensity throughout large homes or offices, making weak connections a thing of the past.
Easy Setup with MERCUSYS App
The MERCUSYS app provides the easiest way for you to set up in minutes and manage your WiFi through your iOS or Android devices.
Specifications
Product code: MW302R
Description: Mercusys WiFi 4 Router, Retail Box
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.4-2.4835GHz
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
270M: -73dBm@10% PER
130M: -75dBm@10% PER
54M: -77dBm@10% PER
11M: -90dBm@10% PER
6 M: -94dBm@10% PER
1 M: -96dBm@10% PER
Transmission Power: <20dBm (EIRP)
Wireless Security: WPA-PSK / WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridging
HardwareDimensions114 mm × 94 mm × 26 mm
Button: Reset Button
External Power Supply: 5V/0.6A
Antenna Type: 2 * 5dBi
2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port
SoftwareWAN Type:Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management: Access Control, Local Management, Remote Management
DHCP: Server
Port Forwarding: Virtual Server, UPnP, DMZ
Firewall Security: IP and MAC Address Binding
Protocols: IPv4, IPv6
Guest Network: 2.4GHz Guest Network
300Mbps Wireless N Router
Power Adapter
Quick Installation Guide
Ethernet Cable
