Mercusys - N300 WiFi 4G Lte Router - Mercusys - N300 WiFi 4G Lte Router

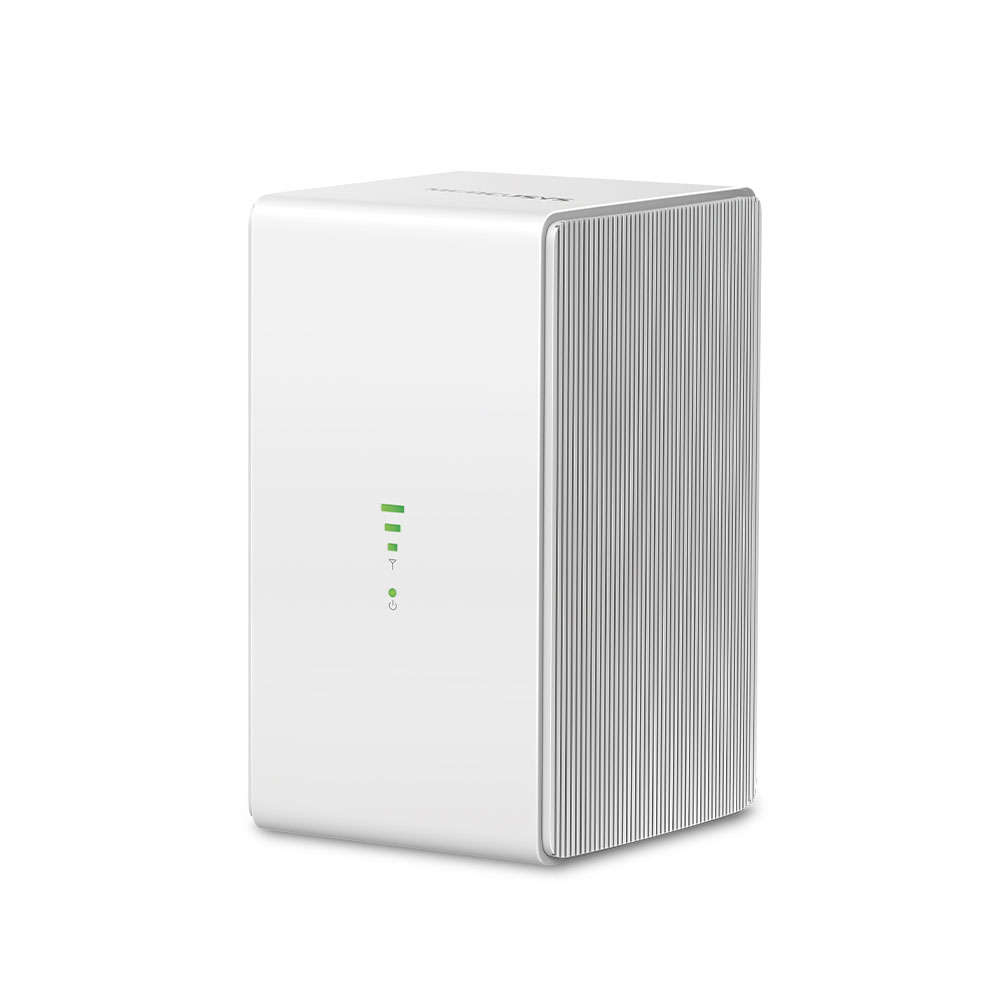

Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router

Reliable 4G Connectivity for Home and Small Office Networks.

The Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router provides fast and stable internet access using a 4G LTE connection. Simply insert a SIM card to instantly create a wireless network, making it ideal for homes, remote offices or locations without fixed broadband.

Delivering wireless speeds up to 300Mbps on 2.4GHz, the MB110-4G ensures smooth browsing, streaming and everyday connectivity. External 4G antennas enhance signal reception for improved network stability, while built-in Ethernet ports allow wired devices such as PCs, TVs and gaming consoles to connect easily.

FEATURES

4G Network - Share internet access with up to 32× Wi-Fi devices and enjoy download speeds of up to 150Mbps
Plug In a SIM Card and Play - No configurations needed, compatibility of SIM cards are assured by years of field tests
300Mbps Wi-Fi - Fast Wi-Fi speeds up to 300Mbps to share your network
Wi-Fi Router Mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

SPECIFICATIONS

WIRELESS
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.4GHz
Signal Rate: 300Mbps

RECEPTION SENSITIVITY
11g 54M: -74dBm
11n HT20: -71dBm
11n HT40: -68dBm

TRANSMISSION POWER
< 20dBm (2.4GHz)

WIRELESS SECURITY
WPA-PSK
WPA2-PSK

WIRELESS FUNCTIONS
Enable/Disable Wireless Radio
Wireless Schedule
WMM
Wireless Statistics

HARDWARE
Dimensions (W × D × H): 90 × 92 × 150.5mm

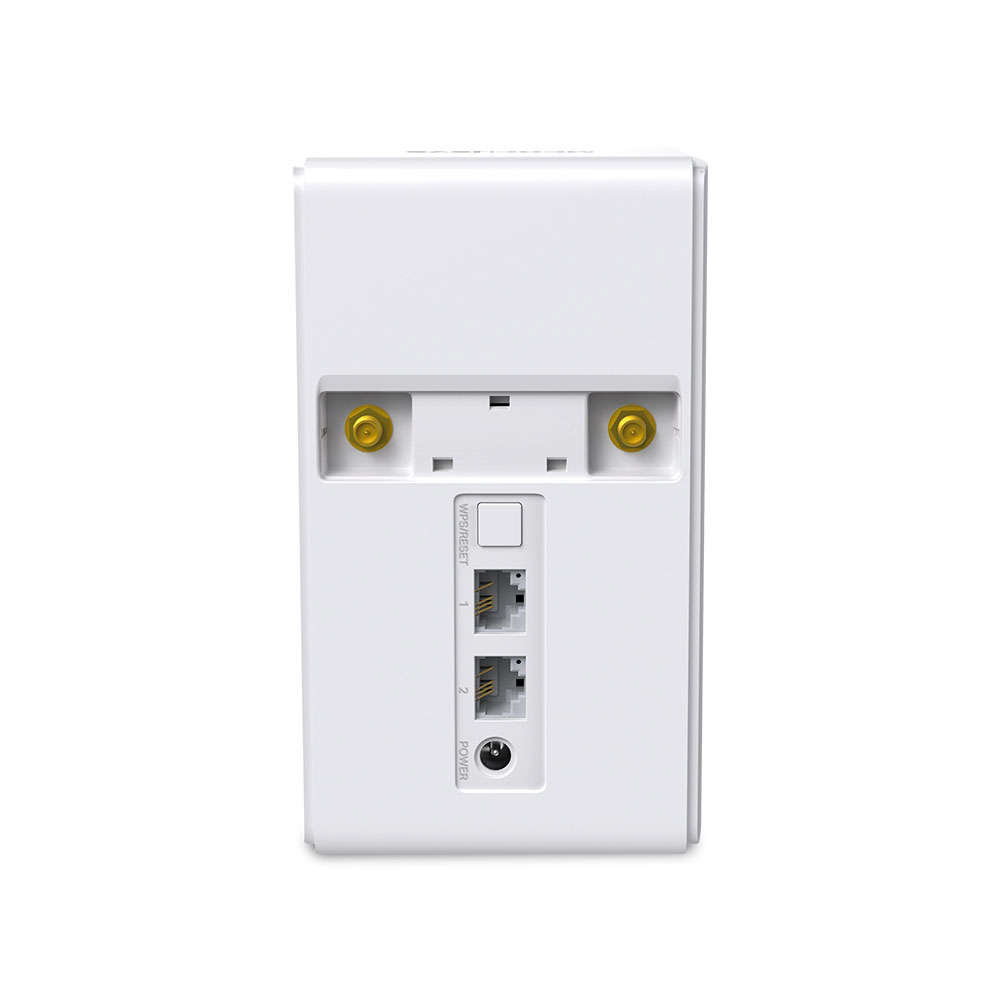

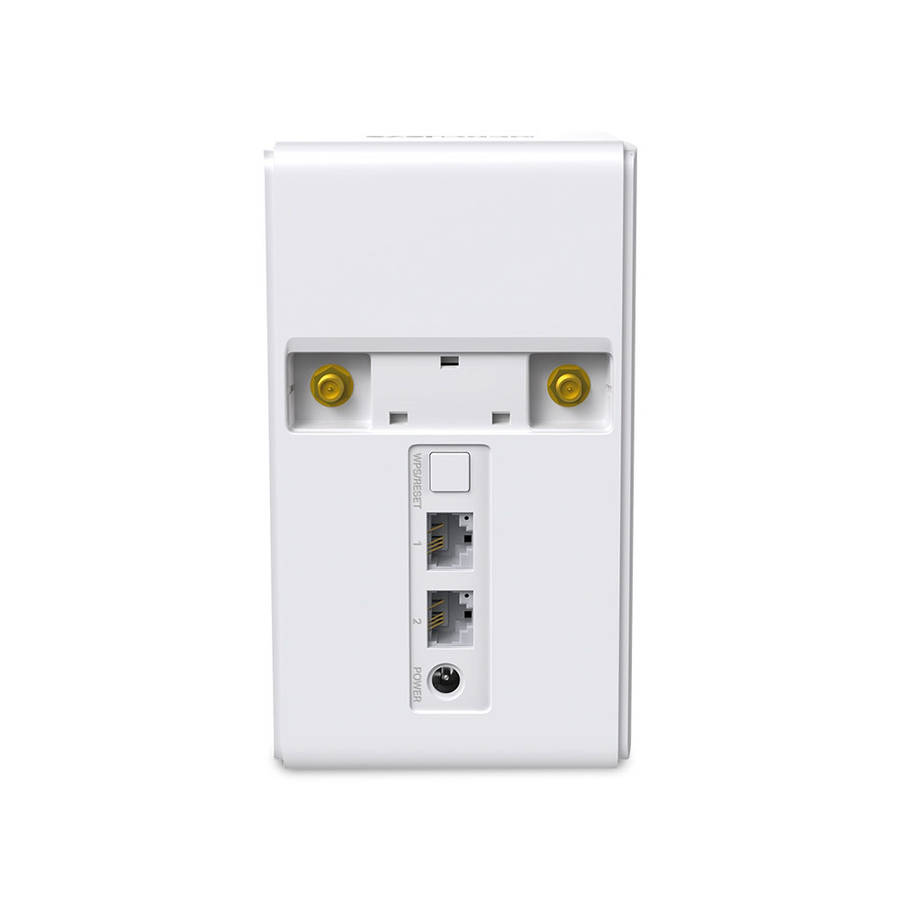

INTERFACES
1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN Port
2× 4G/3G External Antenna Ports
1× Nano SIM Card Slot

BUTTON
WPS/Reset Button

ETHERNET PORTS
1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN

NETWORK TYPE
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
TDD-LTE: B38/B40 (2600/2300MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900MHz)

SOFTWARE
DHCP: Server

ENVIRONMENT
Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH (Non-Condensing)
Storage Humidity: 5~90% RH (Non-Condensing)
