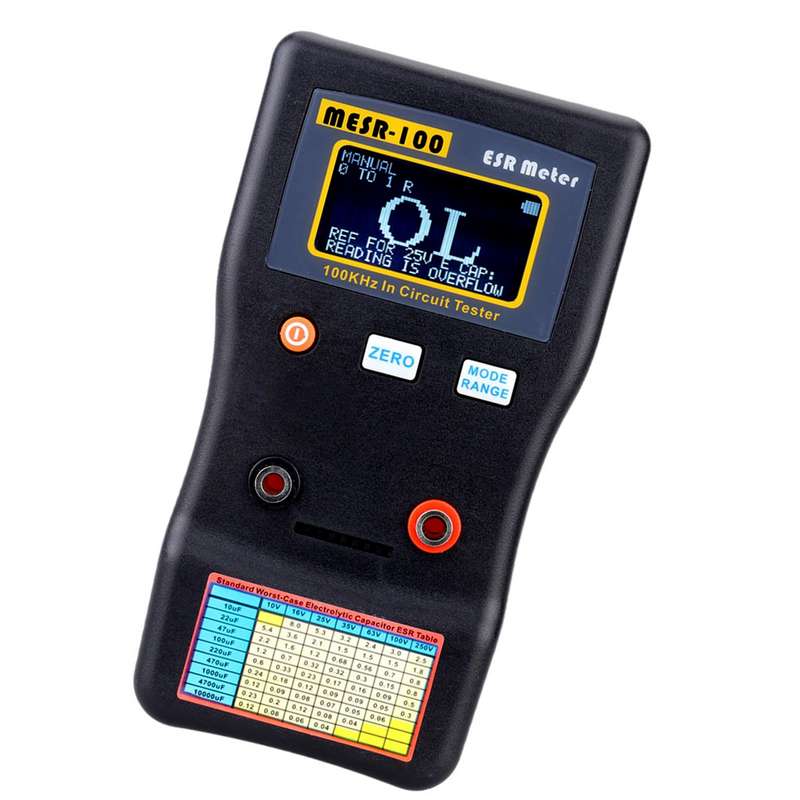

MESR-100 ESR Capacitance Ohm Meter Professional Measuring Internal Resistance of Capacitor Ca

This MESR-100 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.

Features:
It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
The impedance become small, and we can then measure the true series resistor value.
Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.ￂﾠ
During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
Dual terminal, for fast and easy inspect internal resistance of the capacitor, a printed ESR table for fast check.ￂﾠ

Note:
The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.

Specifications:
Color: Blackￂﾠ ￂﾠ ￂﾠ ￂﾠ ￂﾠ

Range	Accuracy (After zero, tested with 1,10,100R resistor)ￂﾠ	Refresh Time(Manual Mode)ￂﾠ Auto mode take 0 to 2s, more timeￂﾠdepends on capacitance value.
0.000 to 1.000R	1%+2Digit	￯ﾽﾞ0.4s
1.000 to 10.00R	1%+1Digit	￯ﾽﾞ0.4s
10.00 to 100.0R	2%+1Digit	￯ﾽﾞ0.4s

Accuracy: Up to 1% (detail on above table)ￂﾠ
Wide Measurement Range: >1uF
High Resolution: 4 digit, or 0.001Ohm @ 1 ￎﾩ range
Measuring voltage: <￯ﾽﾞ40mV RMS (TESTING VOLTAGE)
External Power: 5V micro USB
Operating Current: 0.02A
Battery: 2 * AA 1.5V Battery (not included)
Battery Life time: >80 Hours
Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in
Item Weight: Approx 139.6g / 4.9oz
Package Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.0in
Package Weight: Approx 218g / 7.7oz

Package List:
1 * Capacitance Meter
2 * Test Clips
1 * User Manual
