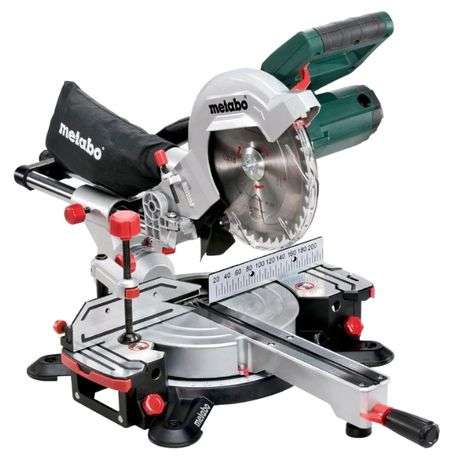

Mitre Saw KGS 216 M (619260000):
- Sliding function for wide workpieces.
- Compact lightweight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands

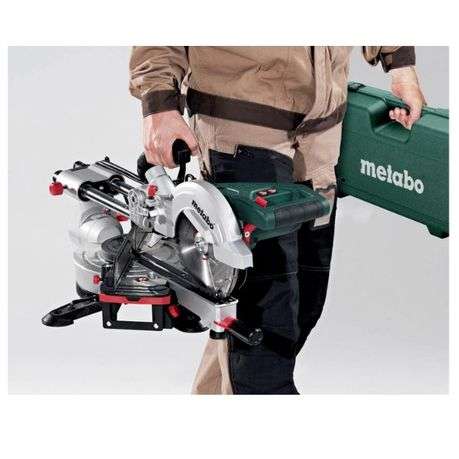

- Easy transport thanks to ergonomically-designed handles and saw headlock
- Effective dust extraction via integrated dust scoop
- Fast and precise setting of common angles using stop points
- Laser for exact display of the cutting line (mains powered, no batteries required)
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing
- Material clamp for secure fixing of the workpiece from the top or front
- Depth guide for easy creation of grooves
- Saw head can be inclined to the left, with an additional angle range for undercuts
- All scales and operating elements are visible from the working position and can be operated intuitively
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
Includes:
- Carbide saw blade (40 teeth)
- 2 Table length extensions
- Length Guide
- Material clamp
- Tool for saw blade change
- Cable winder
- Chip Collection Bag
Characteristics:
- Dimensions: 760 x 475 x 340 mm
- Support surface: 345 x 730 mm
- Maximum cutting width 90°/45°: 305 / 205 mm
- Maximum cutting depth at 90°/45°: 65 / 36 mm
- Cutting capacity 90°/90°: 305 x 65 mm
- Cutting capacity 45°/45°: 205 x 36 mm
- Turntable setting left/right: 47 / 47 °
- Saw blade tilt left/right: 47 / 2 °
- Saw blade: 216 x 30 mm
- Rated input power S1 100%: 1200 W
- Rated input power S6 20%: 1500 W
- No-load speed: 5000 rpm
- Revolutions at rated load: 3750 rpm
- Cutting speed: 57 m/s
- Weight: 13.5 kg
- Cable length: 2 m
Noise emission:
- Sound pressure level: 97 dB(A)
- Sound power level (LwA): 104 dB(A)
- Uncertainty of measurement K: 3 dB(A)

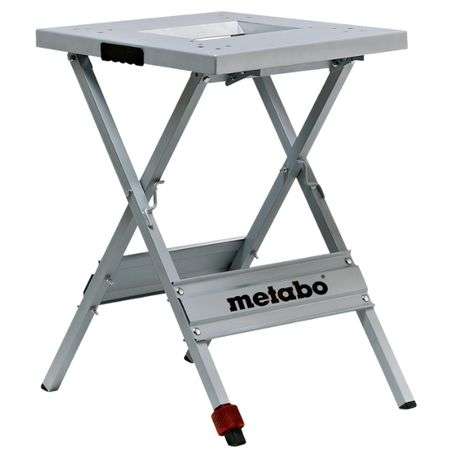

Machine Stand UMS (631317000):
- For ideal working height and stability
- Can be folded up compactly
- Compensation in height with adjustable stand
- Ready mounted
- Height of workbench: 83 cm
- Weight: 12 kg
- Maximum weight load: 250 kg
- Support surface 57 x 60 cm

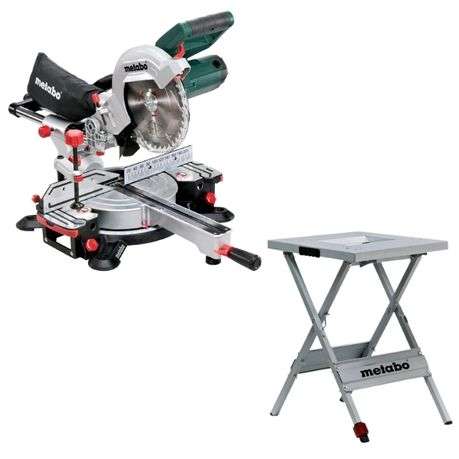

What's in the box
1 x Mitre Saw KGS 216 M (619260000)
1 x Machine Stand UMS (631317000)
