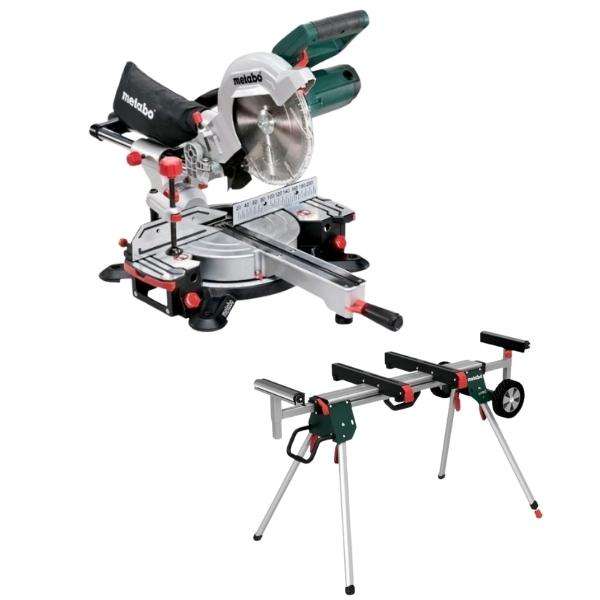

Metabo - Mitre Saw KGS 254 M (602540000)
- Sliding function for wide workpieces.
- Compact lightweight, suitable also for one-handed transport.
- Robust die-cast aluminium design for the highest demands.
- Easy transport thanks to ergonomically-designed handles and saw headlock.
- Effective dust extraction via integrated dust scoop.
- Fast and precise setting of common angles using stop points.
- Laser for exact display of the cutting line (mains powered, no batteries required).
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath.
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required).
- Sliding high rear fence profiles for safe sawing.
- Material clamp for secure fixing of the workpiece from the top or front.
- Depth guide for easy creation of grooves.
- Saw head can be inclined to the left, with an additional angle range for undercuts.
- All scales and operating elements are visible from the working position and can be operated intuitively.
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required.
Characteristics:
- Dimensions: 790 x 515 x 515 mm / 2.6 x 1.7 x 1.7 ft mm
- Support surface: 340 x 775 mm
- Maximum cutting width 90 degree/45 degree: 305 / 205 mm // 12 / 8 1/16"
- Maximum cutting depth at 90°/45°: 92 / 47 mm // 3 5/8 / 1 13/16 "
- Cutting capacity 90 degree/90 degree: 305 x 92 mm / 12 x 3 5/8"
- Cutting capacity 45°/45°: 205 x 47 mm / 8 1/16 x 1 27/32"
- Turntable setting left/right: 47 / 47 degree
- Saw blade tilt left/right: 47 / 2 degree
- Saw blade: 254 x 30 mm / 10 x 1.181"
- Rated input power S1 100%: n 1450 W
- Rated input power S6 20%: 1800 W
- No-load speed: 4500 rpm
- Revolutions at rated load: 3150 rpm
- Cutting speed: 60 m/s / 197 ft/s m/s
- Weight: 16.3 kg / 36 lbs kg
- Cable length: 2 m / 7 ft m.
Noise emission:
- Sound pressure level: 97 dB(A)
- Sound power level (LwA): 106 dB(A)
- Uncertainty of measurement K: 3 dB(A)
Includes:
- Carbide saw blade (48 teeth)
- Material clamp
- Tool for saw blade change

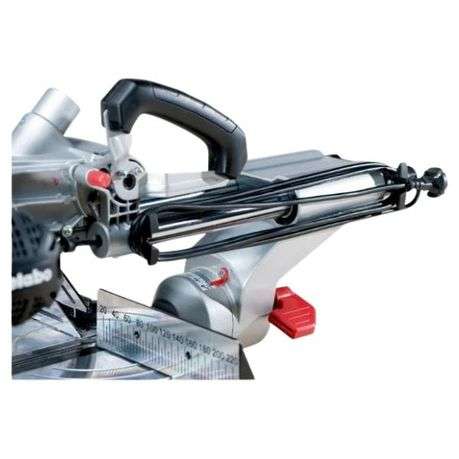

- Cable winder
- Chip Collection Bag
- 2 Table length extensions
- Length Guide

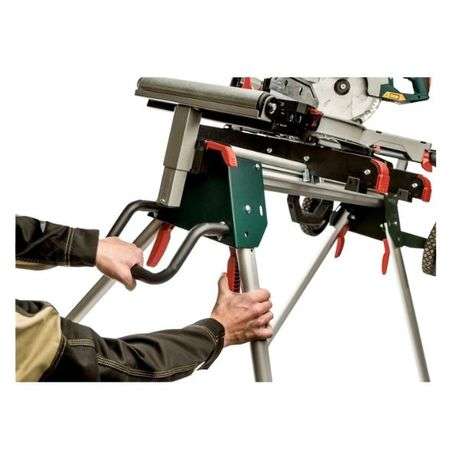

Metabo - Mitre Saw Stand - KSU 251 (629005000):

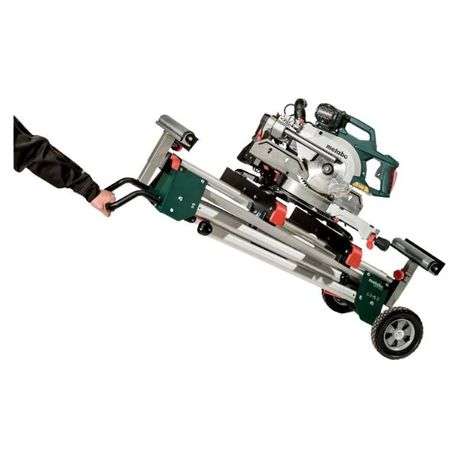

- Light and robust stand for mitre saws with trolley function for mobile use also with a mounted saw.
- Quickly ready to use thanks to lockable folding legs and adjustment option for safe positioning.
- Extendable workpiece supports with rollers and folding guide for precise cutting in series.
- Including machine carriers (installation without tools) makes it suitable for all the conventional mitre saws of well-known manufacturers.
- Overall length: 127 cm 250 cm
- Height of workpiece supports: 92 cm - 99 cm
- Maximum weight load in the central part: 250 kg
- Weight: 23 kg
What's in the box
1 x Metabo - Mitre Saw KGS 254 M (602540000)
1 x Carbide saw blade (48 teeth)
1 x Material clamp
1 x Tool for saw blade change
1 x Cable Winder
1 x Chip Collection Bag
2 x Table length extensions
1 x Length Guide
1 x Metabo Mitre Saw Stand - KSU 251 (629005000)
