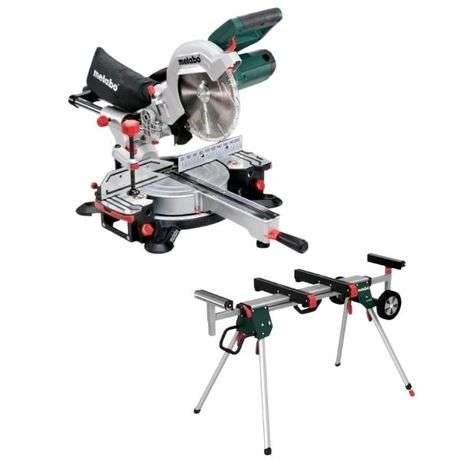

Metabo - Mitre Saw - KGSV 216 M (619261000):
- Speed control for an extended range of applications, e.g. for cutting of aluminium profiles and plastics
- With saw blade "multi-cut" (flat/trapezoidal tooth) for high cutting quality and long service life e.g. in laminate and aluminium profiles
- Sliding function for wide workpieces.
- Compact lightweight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands
- Easy transport thanks to ergonomically-designed handles and saw headlock
- Effective dust extraction via integrated dust scoop
- Vario-Constamatic (VC)-Full-wave Electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
- Fast and precise setting of common angles using stop points
- Laser for exact display of the cutting line (mains powered, no batteries required)
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing
- Material clamp for secure fixing of the workpiece from the top or front
- Depth guide for easy creation of grooves
- Saw head can be inclined to the left, with an additional angle range for undercuts
- All scales and operating elements are visible from the working position and can be operated intuitively
- Easy saw blade change using spindle lock: No dismantling of the pendulum guard is required
Characteristics:
- Dimensions: 760 x 475 x 340 mm
- Support surface: 345 x 730 mm
- Maximum cutting width 90°/45°: 305 / 205 mm
- Maximum cutting depth at 90°/45°: 65 / 36 mm
- Cutting capacity 90°/90°: 305 x 65 mm
- Cutting capacity 45°/45°: 205 x 36 mm
- Turntable setting left/right: 47 / 47 °
- Saw blade tilt left/right: 47 / 2 °
- Saw blade: 216 x 30 mm
- Rated input power S1 100%: 1350 W
- Rated input power S6 20%: 1700 W
- No-load speed: 2500 - 5500 rpm
- Revolutions at rated load: 5500 rpm
- Cutting speed: 28 - 62 m/s
- Weight: 13.5 kg
- Cable length: 2 m
Noise emission
- Sound pressure level: 97 dB(A)
- Sound power level (LwA): 104 dB(A)
- Uncertainty of measurement K: 3 dB(A)
Includes:
- Metabo - KGSV 216 M Mitre Saw - (619261000)
- Carbide saw blade (60 teeth)
- Material clamp
- Tool for saw blade change

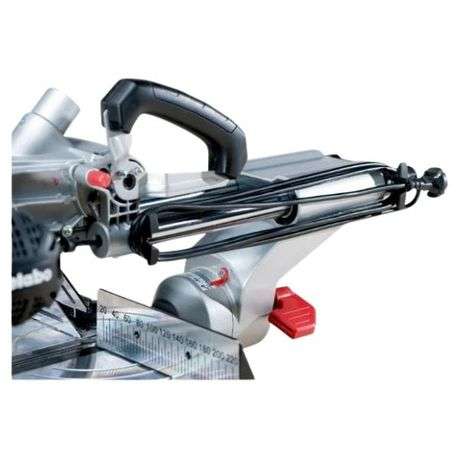

- Cable winder
- Chip Collection Bag
- 2 x Table length extensions
- Length Guide
Metabo - Mitre Saw Stand - KSU 251 (629005000):

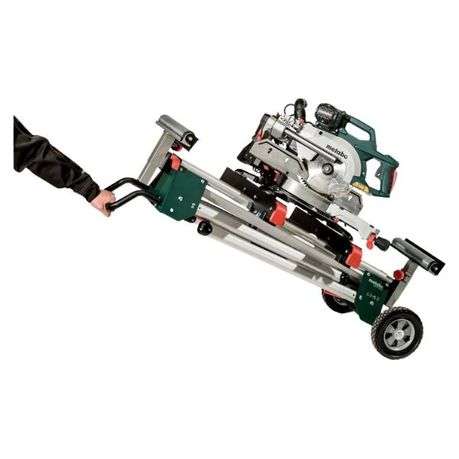

- Light and robust stand for mitre saws with trolley function for mobile use also with a mounted saw.

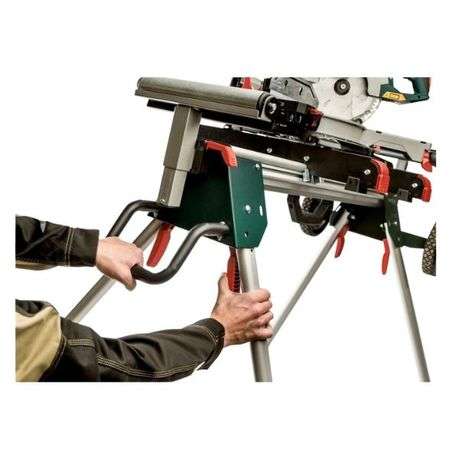

- Quickly ready to use thanks to lockable folding legs and adjustment option for safe positioning.
- Extendable workpiece supports with rollers and folding guide for precise cutting in series.
- Including machine carriers (installation without tools) makes it suitable for all the conventional mitre saws of well-known manufacturers.
- Overall length: 127 cm 250 cm
- Height of workpiece supports: 92 cm - 99 cm
- Maximum weight load in the central part: 250 kg
- Weight: 23 kg
What's in the box
1 x Metabo - KGSV 216 M Mitre Saw - (619261000)
1 x Carbide saw blade (60 teeth)
1 x Material clamp
1 x Tool for saw blade change
1 x Cable Winder
1 x Chip Collection Bag
2 x Table length extensions
1 x Length Guide
1 x Metabo Mitre Saw Stand - KSU 251 (629005000)
