Features:

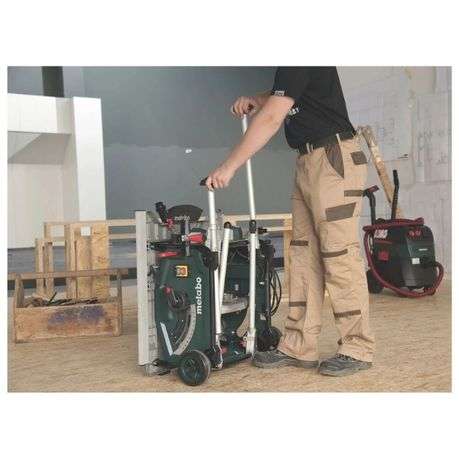

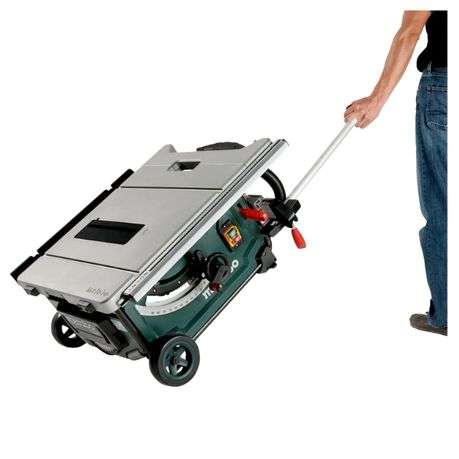

- Extremely light table saw with trolley function for more mobility on the construction site

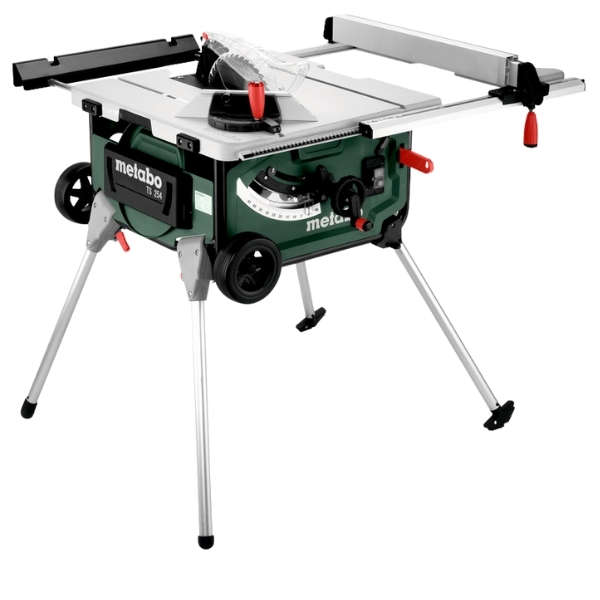

- Integrated stand made from stable die-cast Aluminium (patented): unfolded in a matter of seconds with secure stand
- Very compact with folded stand for comfortable transport and space-saving storage
- Second working height for working near ground level
- Anti-twist tubular frame construction for highest demands on the building site and during installations
- Cables and all add-on components for transport can be stored on the casing
- Powerful motor with electronic overload protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents unintentional start-up after power supply interruption
- Soft start for long service life of motor and drive
- Precise rip fence with double clamping and quick fastening
- Precise saw blade inclination via gear guide
- Automatic resetting to 0 45 degrees after undercuts
- Easy saw blade change with spindle lock
- Splitting wedge can be lowered without tools for hidden cuts and transport
- Precise, extendable table width extension for extra large working surfaces
Characteristics:
- Dimensions: 740 x 750 x 355 mm
- Max. support surface: 970 x 995 mm
- Working height: 850 / 355 mm
- Cutting height: 0 - 87 mm
- Maximum cutting height 90/45 degrees: 87 / 54 mm
- Maximum cutting width at rip fence: 630 mm
- Maximum material width at mitre fence: 200 mm
- No-load speed: 4200 rpm
- Cutting speed: 56 m/s
- Saw blade: 254 x 30 mm
- Saw blade swivel range: -1.5 - 46.5 degrees
- Mains voltage: 220 - 240 V
- Rated input power S1 100percent: 1700 W
- Rated input power S6 20 percent: 2000 W
- Weight: 33.4 kg
- Cable length: 3.1 m
Noise emission
- Sound pressure level: 99 dB(A)
- Sound power level (LwA): 112 dB(A)
- Uncertainty of measurement K: 3 dB(A)
What's in the box
1 x Carbide saw blade with alternately bevel-ground tips (40 teeth)
1 x Stand
2 x Hard rubber tyres
1 x Rip Fence
1 x Mitre Fence
1 x Table Length Extension
1 x Table width extension (right)
1 x Saw blade case
1 x Push stick
