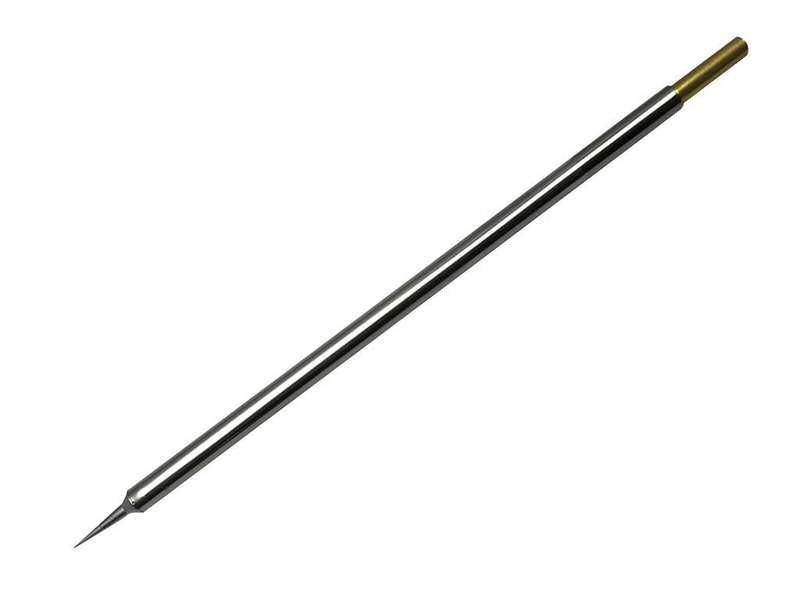

Metcal (STTC-190) Soldering Iron Tip, Conical, 0.25 mm

Product Information:Tip / Nozzle Width: 0.25mmTip / Nozzle Style: ConicalFor Use With: Metcal MX-5200, MX-5000, MX-500 Soldering Station, MX-H1-AV,MX-RM3E Solder Pen, MX-UK1 Upgrade-KitProduct Range: MX System SeriesProduct Overview:The STTC-190 is a 0.25 x 13.2mm conical Soldering Cartridge Tip for moststandard applications. The STTC cartridge provides a wide range of options forthrough-hole and SMD rework. The 700 series tip for use with the MX-500 andMX-5000 and MX-5200 systems and with the MX-RM3E and MX-H1-AV handpieces. Fixedtemperature cartridges and tips offer users a fully safe and thermally effectivesolution to their lead free soldering needs as well as complete process control.SmartHeat® Technology is unique in that it senses the specific thermal demanddirectly at the solder pad and delivers the precise quantity and flow of thermalenergy during both flux activation and intermetallic bonding phases without anyadjustment and calibration.0,25 mm TipNozzle Diameter13,2 mm TipNozzle LengthStyle - Conical, Narrow, Long Reach390 °C Soldering Idle Temperature700 = FR4Fiber Glass, for most standard applications
