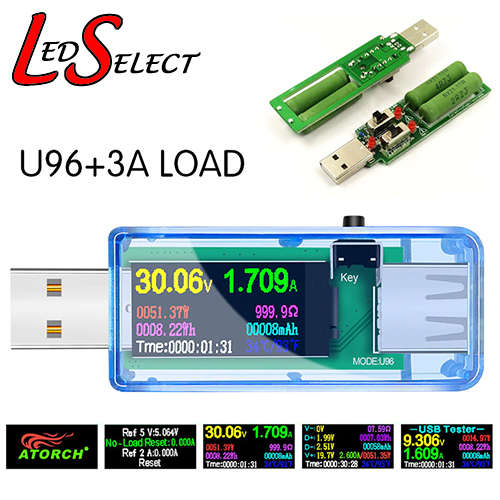

Meter 11in1 5V USB Multicolour Led + Load Tester **LOCAL STOCK**

Meter 11in1 5V USB Multicolour Led + 3A Load Tester:

Category: 2600312645 / 2604312645 - Volt + Current Meter

Specifications:

Voltage Measuring Range: 3.60V - 32.5V
Current Measuring Range: 0 - 5A
Power Cumulative Range: 0 - 999999WH
Capacity Range: 0 - 999999mAH
Temperature Range: 0 - 80 deg
D+ Voltage: 0.000V - 2.999V
D- Voltage: 0.000V - 2.999V
Load Impedance: 0 - 999ohm
Power Range: 0 - 299.999W
Maximum Time: 999H 59M 59S
Refresh Time: > 500 ms/time
Measurement Rate: 0.5 times/s
Working Temperature:  -10 - 60 deg
Working Humidity: 10 - 80
Pressure: 80 - 106kpa
Product Size: 65 x 24 x 14mm

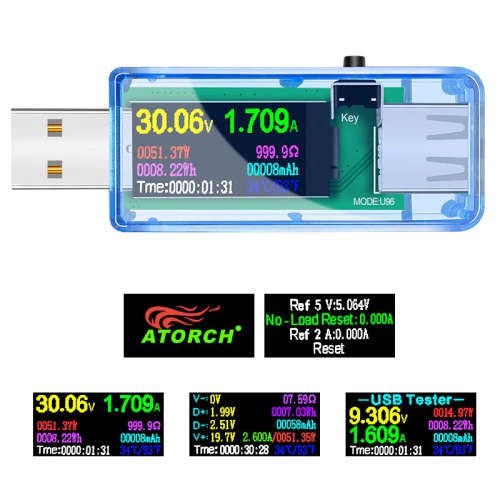

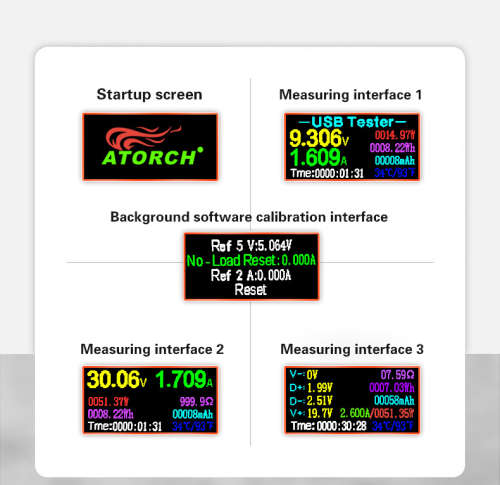

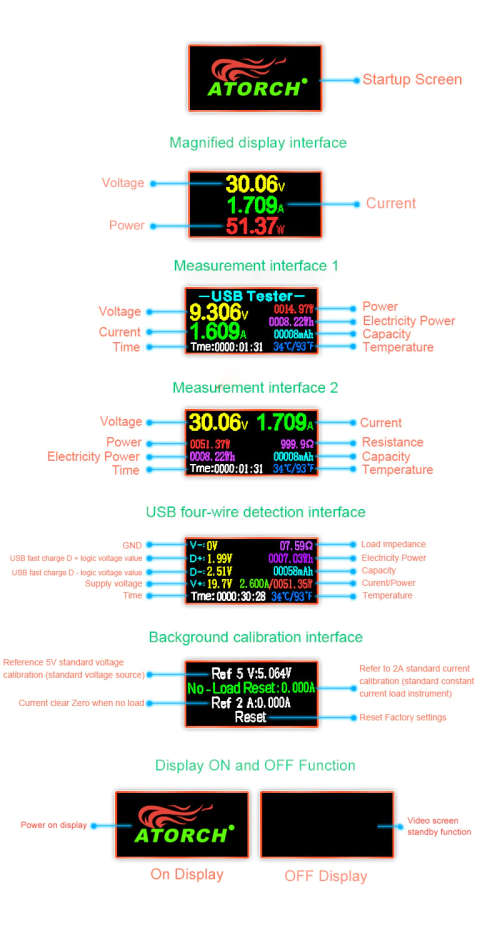

11 in 1 measurement:
Voltage, current, power, battery capacity, impedance, parameters such as temperature, energy and time, etc.

U96 key button operation instructions:
1. Short Press key button to switch screen on
2. Long press key button the screen to flip
3. Quickly double-click key button the power Wh to clear zero
4. Fast three-click capacity mAH to clear zero
5. Fast four-click time to clear zero

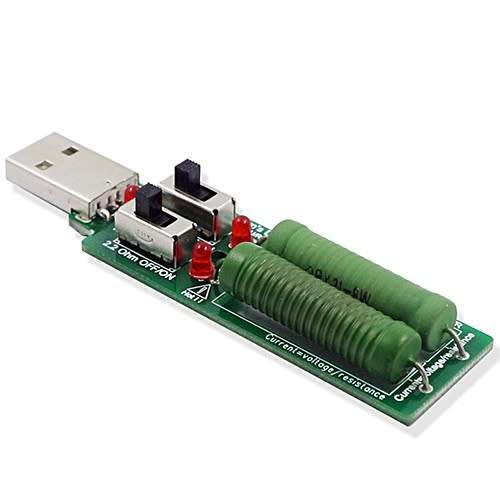

Load Tester: Designed in accordance with Ohm's Law and connected in parallel by a different switch, a new type of resistor can be created to discharge the USB electronic load resistor. When all switches are open, they are 2.2 ohms / 10 W, 4.7 ohms / 10 W, and they are connected in parallel. Two types of resistors can generate almost 3A discharge current at 5V.
