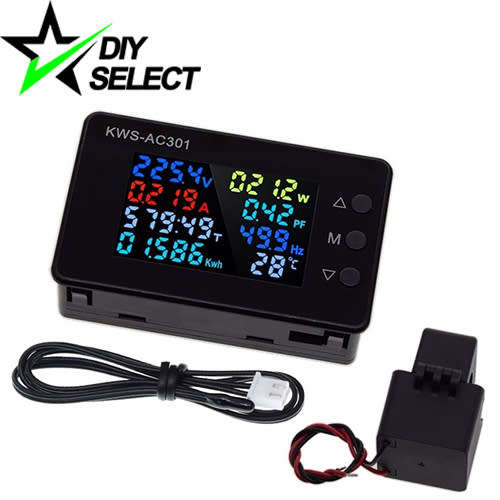

Meter Energy Watt 8-IN-1 220V AC 100A + Open Close Ring **LOCAL STOCK**

Meter AC 50-300V 100A:

Specifications:

Current: 0-100A
Voltage: 50-300V AC
Electricity: 0.01-19999Kwh
Power: 0-22KW
Timing: 0.1-999
Frequency: 50-60Hz
Temperature: 10-99 Deg C (Includes 400mm Long Probe)
Size: 74 x 45 x 20mm

Instructions:

1. Press and hold the M key for three seconds to enter the settings, double-click the M key to wrap, and click the M key to shift.
2. Alarm prompt setting, when the value is set, press the M key for 3 seconds to save.
The alarm prompt will appear only when the actual test value is greater than or equal to the set value or greater than or equal to the set value. When the instrument has an alarm, it will make a sound. At the same time, the numerical unit will flash on the screen. For example, if the current is set to 1.000A, an alarm will appear, and a prompt will appear when the actual current used is greater than 1.000A.
Turn off the alarm prompt method: set the alarm value larger than the actual value or set all alarm values to 0.
Electric energy and timing reset method: press the up button for 3 seconds and the timing flashes, click the M button to clear the timing, double-click the M button to wrap to the electric energy, and click the M button to clear.
Restoring factory settings: Press and hold the down key, and then turn on the power and hear the sound of the meter, indicating that the restoration is successful.
The factory default voltage alarm value is 275V, others are 0

Features:

8 major functions: current, timing, electrical energy, voltage, power, temperature, power factor, frequency
PVC flame retardant material, all-round buckle design, stable installation, flame retardant and safer
Full-view color screen for clearer observation
Dedicated metering chip. The calculation data is simple, convenient and fast
