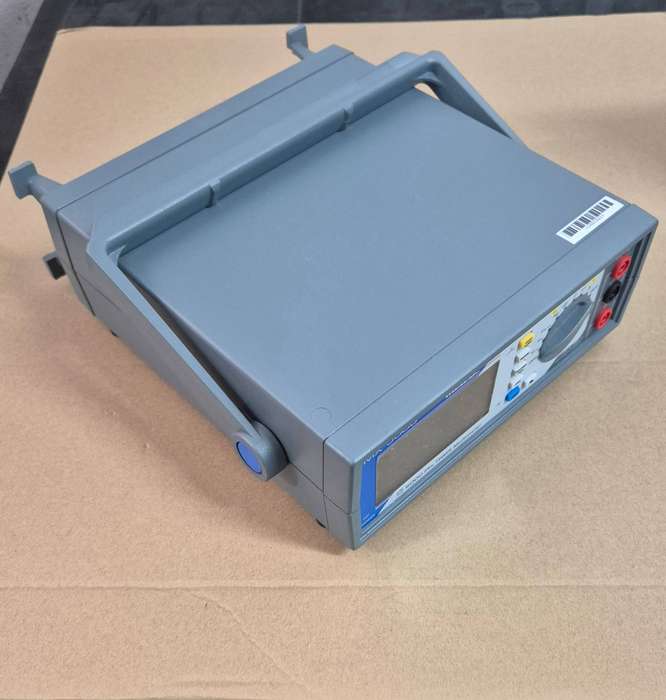

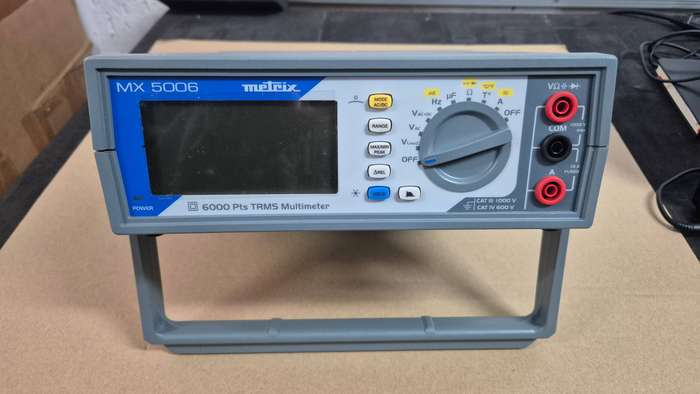

Metrix MX 5006 Bench Digital Multimeter, True RMS, 20A ac Max, 20A dc Max, 1000V ac Max

For your laboratory applications - simple and efficient
Highlights & Details

    Easy current measurements with a single A input socket up to 10 A.
    AC+DC-TRMS measurements with a bandwidth of 100 kHz and a display up to 6,000 digits
    Stable measured values through VLowZ-measuring range, which suppresses phantom voltages
    Stable measurements on speed controllers with a PWM filter 300 Hz
    Monitoring and recording OF THE MIN, MAX, peak values with date/time
    Double insulation according to IEC 61010, 1000 V CAT III, optimized safety

Specifications :

Voltage reading range DC (min.) : 60 mV

Voltage DC reading range (max.) : 1000 V

V AC reading range (min.) : 60 mV

V AC reading range (max.) : 1000 V

Amperage reading range DC (min.) : 6000 µA

A DC reading range (max.) : 20 A

A AC reading range (min.) : 6000 µA

Amperage reading range AC (max.) : 20 A

Reading range - resistance : 600 to 60 M

Reading range - capacity : 6 nF to 60 mF

Frequency reading range :  60 Hz to 60 kHz

Temperature : -200 °C to +1200 °C

                                 AC/DC

                                 DC

                                 DC/TRMS

Current reading :

                                 AC

                                 AC/DC

                                 DC

                                 DC/TRMS

Display :  Digital Analogue

Display (counts) : 6000
