MFRC-522 RC522 RFID RF IC Card Sensor Module with S50 Fudan Card

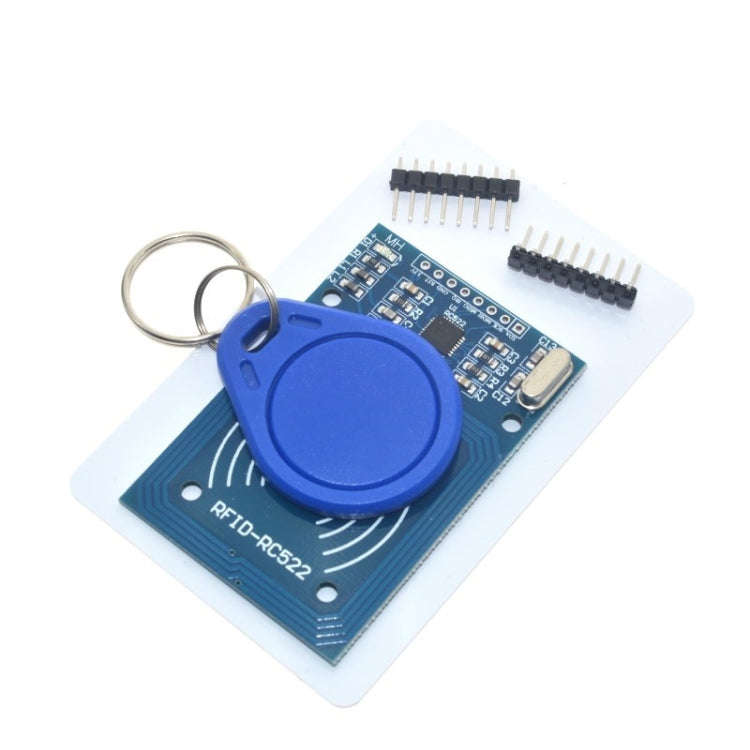

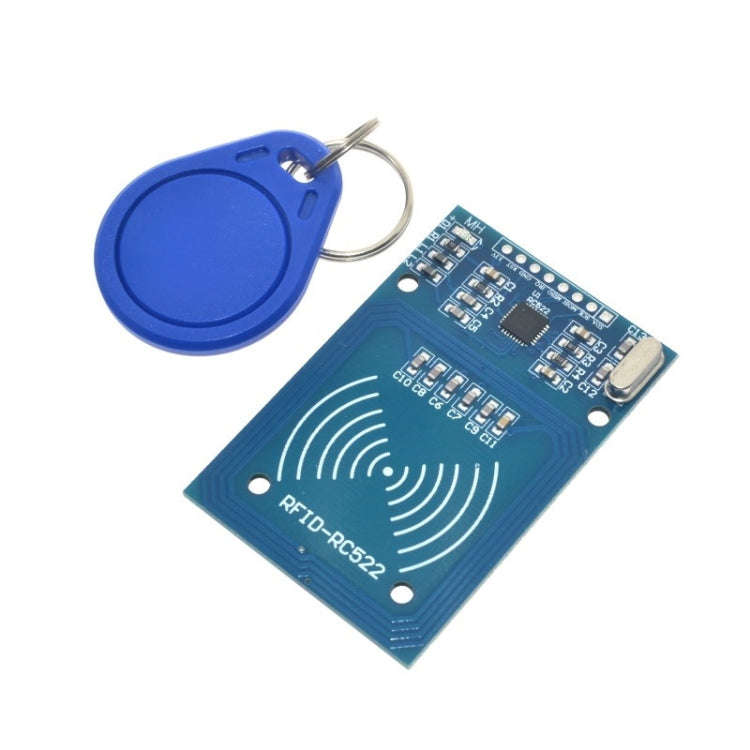

1. Package includes: RFID-RC522 module X1, standard S50 blank card X1, S50 special-shaped card (as shown in the shape of the key ring); a straight row and a bent row of pins;
2. Working current: 13-26mA / DC 3.3V
3. Idle current: 10-13mA / DC 3.3V
4. Sleep current: <80uA
5. Peak current: <30mA
6. Working frequency: 13.56MHz
7. Supported card types: Mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
8. Product physical characteristics: Size: 40mm × 60mm
9. Ambient working temperature: -20-80 degrees Celsius
10. Environmental storage temperature: -40-85 degrees Celsius
11. Environmental relative humidity: Relative humidity 5% -95%

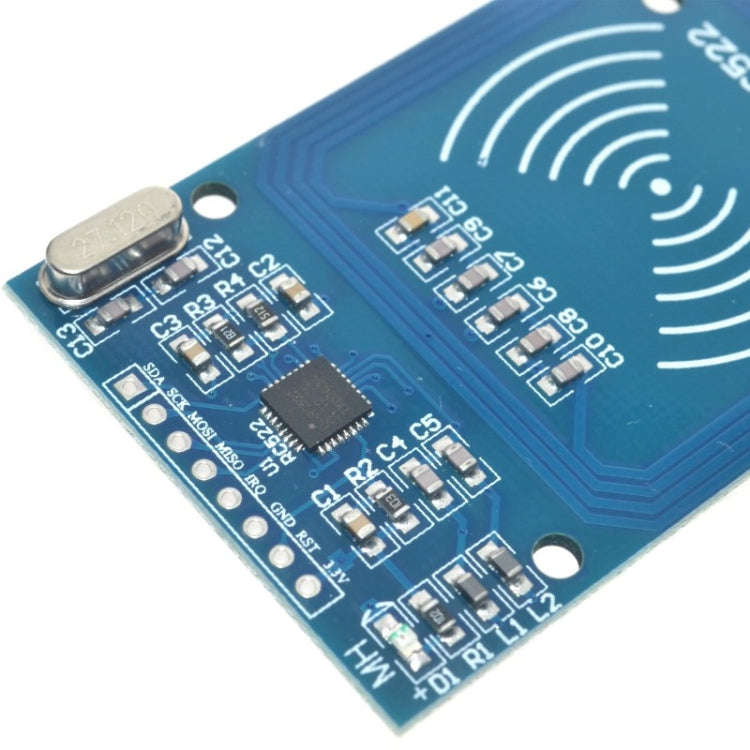

12. Module interface SPI parameters: Data transmission rate: maximum 10Mbit / s
13. This module can be directly loaded into various card reader molds. The module uses a voltage of 3.3V. It can be directly connected to any CPU motherboard of the user through a few lines of SPI interface, which can ensure the stable and reliable operation of the module and the distance of card reading.
