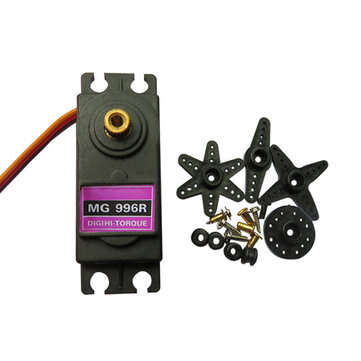

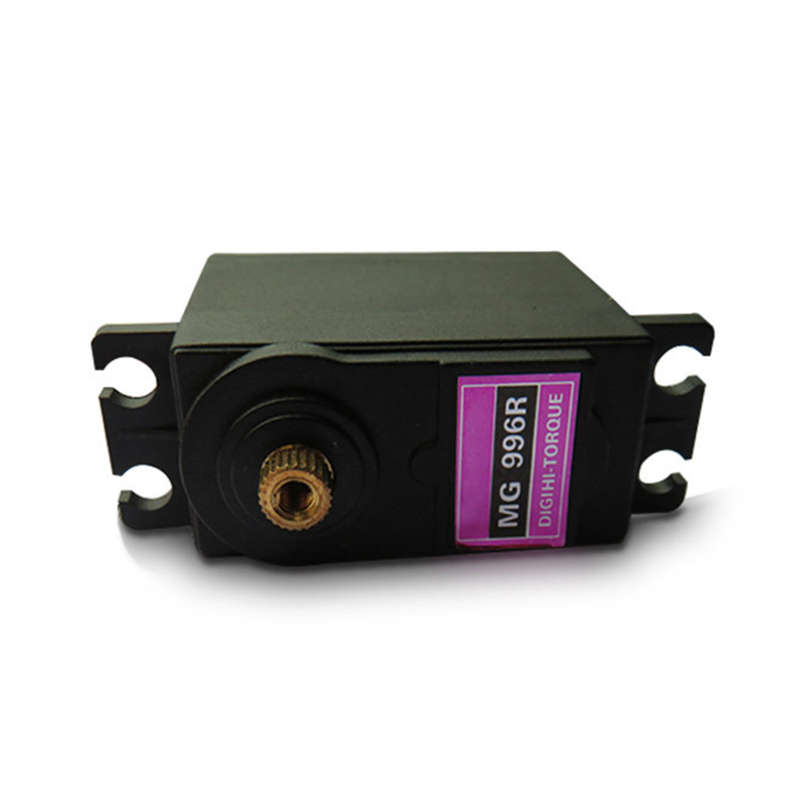

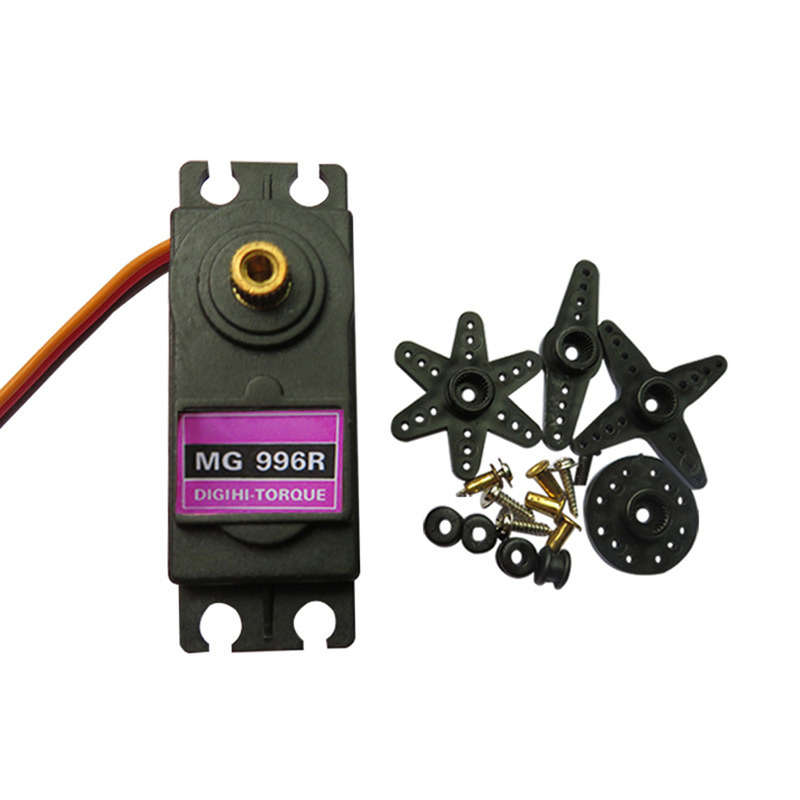

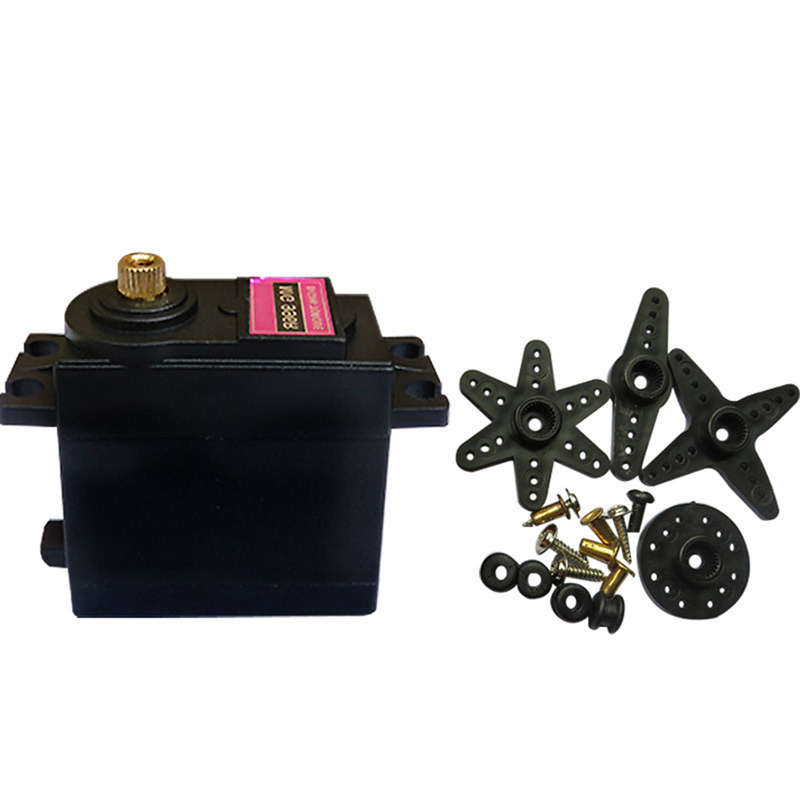

MG996R 55g 4.8V-6V 13kg/cm High Torque Metal Gear Analog Servo for RC Airplane Fixe... (MODEL: 6PCS)
Closed

MG996R 55g 4.8V-6V 13kg/cm High Torque Metal Gear Analog Servo for RC Airplane Fixe... (MODEL: 6PCS)

New 12 were available
R836.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
609840147

SELECTED OPTION:
MODEL: 6PCS





Description: Model: MG996R Dimensions: 40.5x20x41mm Weight: 55g
Apply Enciromental Condition: Storage Temperature range: -20?ᆪC-60?ᆪC Operating Temperature range: -10?ᆪC-50?ᆪC Operating Voltage range: 4.8V-6V
Electrical Specification: Operating Speed(at no load): 0.12±0.01sec/60 (4.8v), 0.11±0.01sec/60 (6v)

Running Curret(at no load): 220±20mA (4.8v), 250±20mA (6v)

Stall Torque(at locked): 11±0.1kg.cm (4.8v), 13±0.1kg.cm (6v)

Stall Current (at locked): 2000mA±30mA (4.8v), 2200mA±30mA (6v)

Idle Current (at stopped): 4±1mA (4.8v), 4±1mA (6v)


Control Specification: Control System: Change the pulse width Amplifier Type: Analog controller Operating Travel: 90?ᆪ±3?ᆪ(1000-2000u sec) Left and Right Travelling Angle Deviation: a???3?ᆪ Centering Deviation: a???1?ᆪ Neutral Position: 1500 ?? sec Dead Band Width: a???5??sec Rotating Direction: Counter clockwise(1500-1000?? sec) Pulse Width Range: 800-2200?? sec Maximum Travel: About 145?ᆪ(800-2200??sec)
Package Included: 1x MG996R 55g Metal Gear Analog Servo
