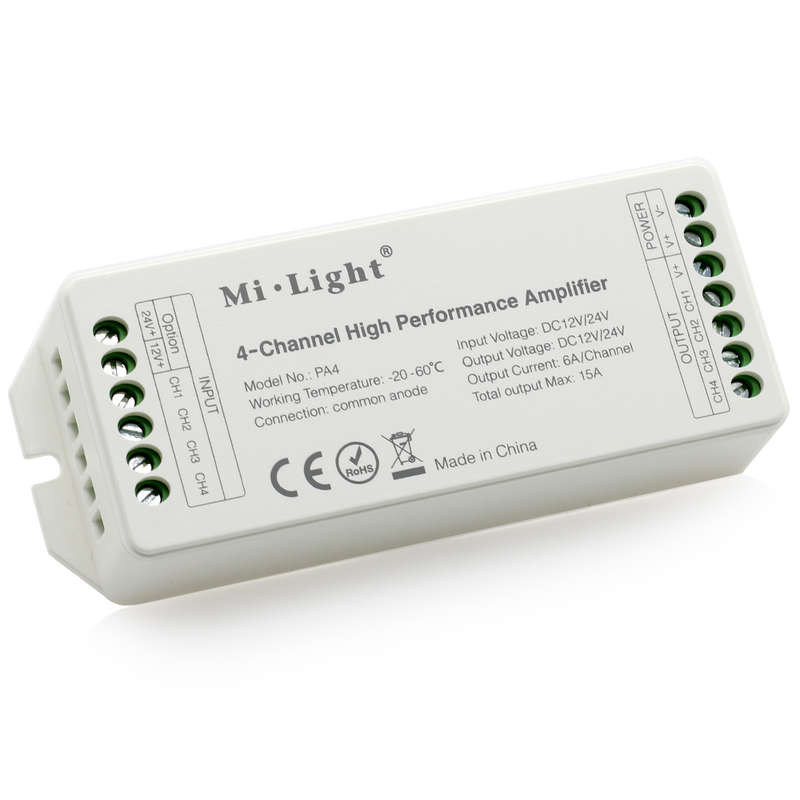

Mi Light DC12V-24V PA4 4-Channels RGB RGBW LED Amplifier Controller for LED Strips

20 available / new

R637.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3459

93.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128985

Specification:
Product Name:4-ChannelHigh Performance Amplifier
Working Voltage: DC12V/24V
Switching Rate: 10Mbps
Output Max:6A/Channel
Total Output Max: 15A
Working Temperature: -20-60a

Feature:

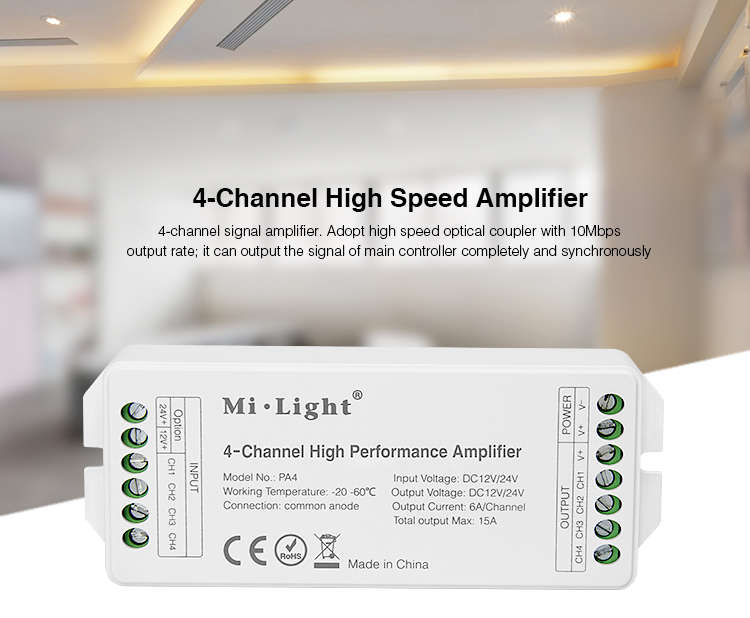

PA4 is a newly updated high performance 4-channel signal amplifier.
Adopt high speed optical coupler with 10Mbps output rate, it can output the signal of mai controller completely and synchronously.

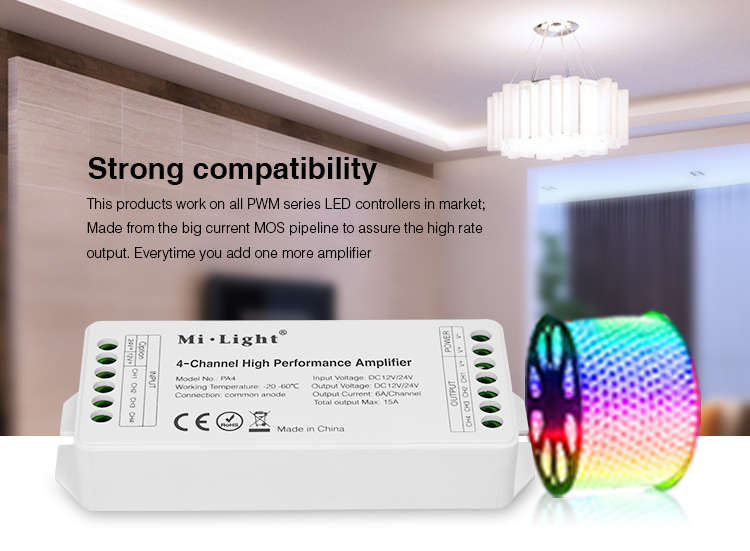

This products work on all PWM series Led controllers in market.
Made from the big current MOSFET to assure the high rate output.
Every time you add one more amplifier, you can connect twice as many as Leds.
Theoretically, it can connect countless amplifier, input and output is with optoelectronic isolation.
Working with main controller can satisfy the application requiring large power, wide range and synchronization area.

Attention:
Led strip must beDC12V or 24Vand theoutputandinputmust be the same.
Please check whether the input voltage of the constant voltage power supply is accordance with the controller and please check the connection of both the cathode and anode,otherwise the controller will be broken.
Pleasedon'tconnect wireswhen power on.
Please turn on again only when it is on right connection and no short circuit.
Please do not use the controller in the placewith widely range meal areaorstrong electromagnetic wave nearby,otherwise the remote distance will be seriously affected.

Package Included:
1*Mi light LED amplifier controller
