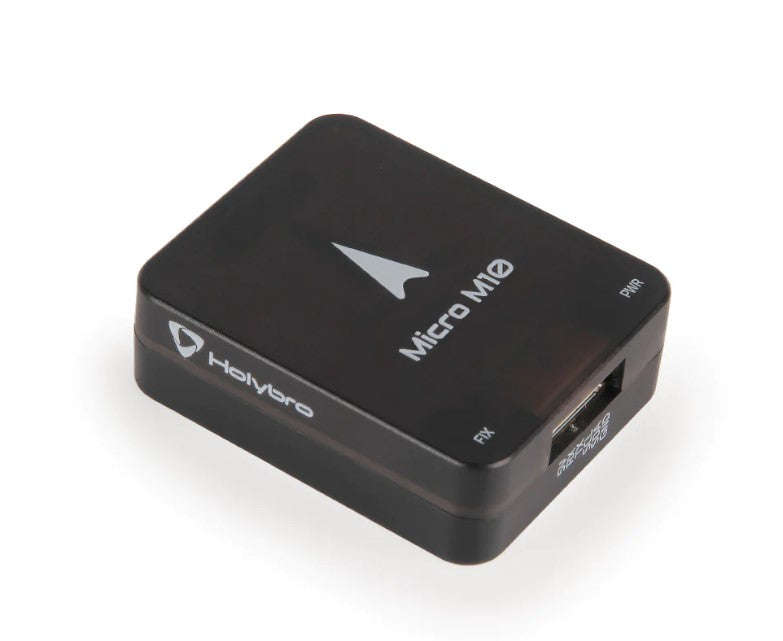

Name: Micro M10 GPS
SKU: PIX092
Price: 998.75 ZAR
Availability: InStock

Micro M10 GPS

New

7 available

R998.75

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

FlyingRobot440

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

PIX092

Bob Shop ID

643877601

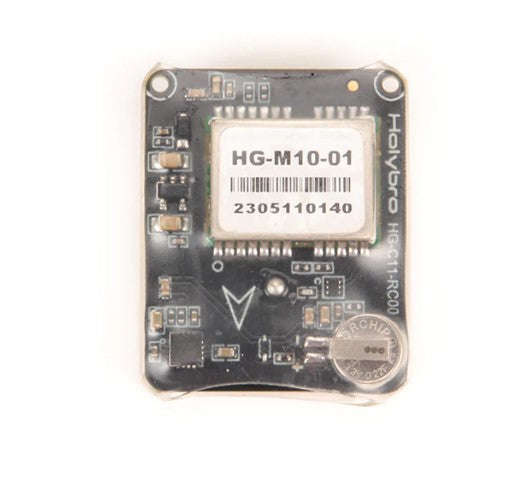

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

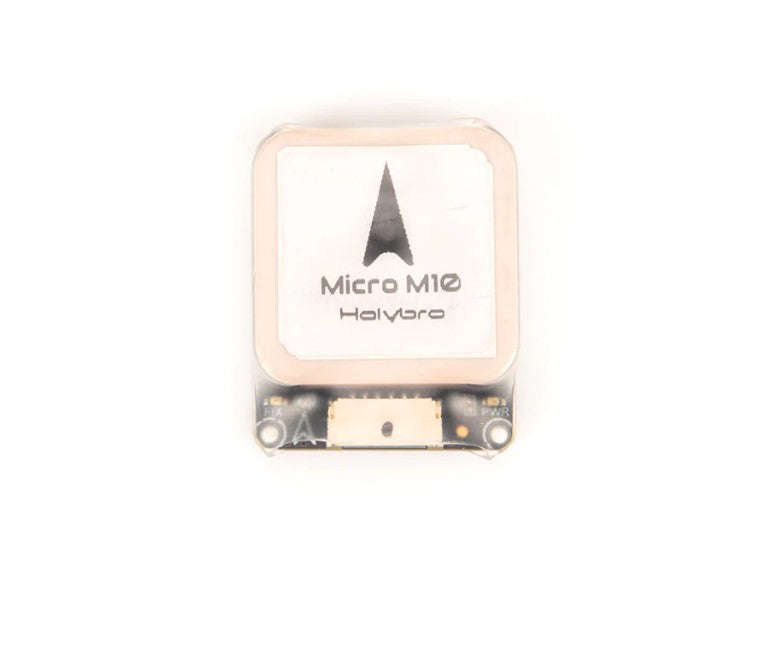

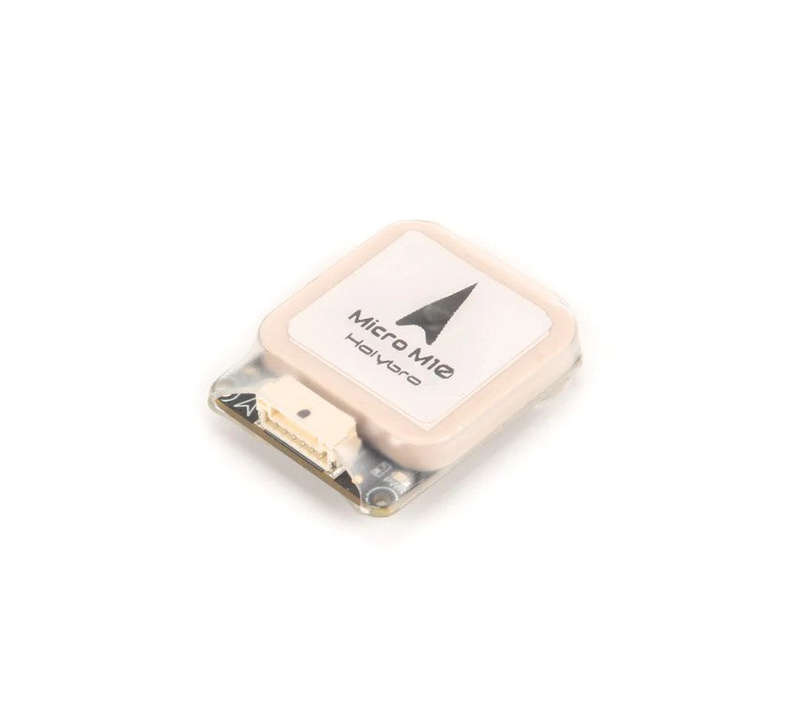

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor

Specifications:

	Holybro Micro M10 GPS	Holybro Micro M9N GPS
GNSS Receiver	Ublox M10	Ublox M9N
Number of Concurrent GNSS	Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS	Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS
Frequency Band	- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1	- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1
Compass	IST8310	IST8310
Output Protocol	- UBX (U-blox) - NMEA	- UBX (U-blox) - NMEA
Accuracy	2.0m CEP	1.5m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)	Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S
Default Baud Rate	115200	115200
Input Voltage	4.7-5.2V	4.7-5.2V

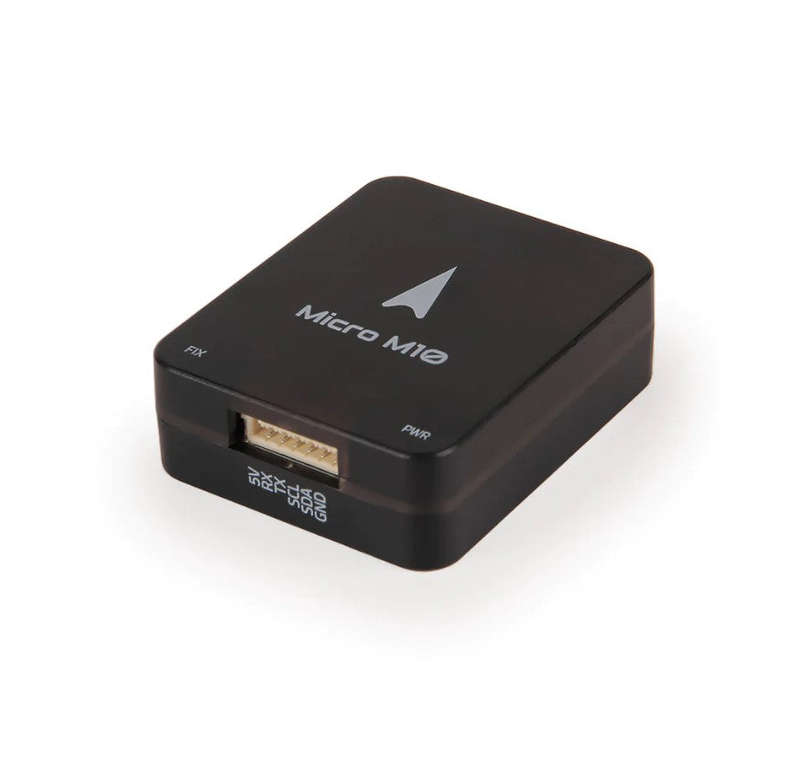

Port Type	JST-GH-6P	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
Operating Temperature	-40~80C	-40~80C
Dimension	- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case)	- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case)
Weight	- 14g (w/o Case) - 16g (With Case)	- 14g (w/o Case) - 16g (With Case)
Other	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator

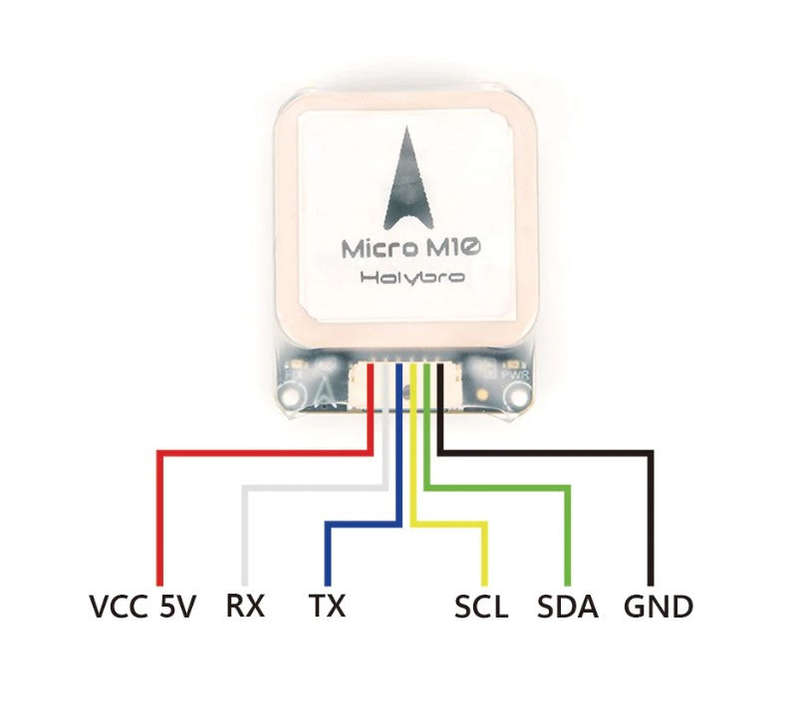

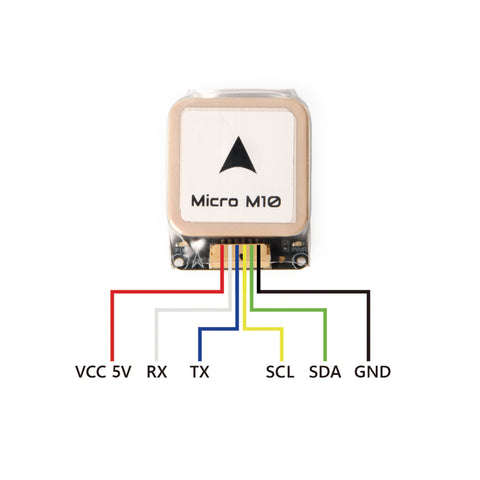

PIN MAP

Reference Link

Holybro Documentation
Dimension
3D CAD Download

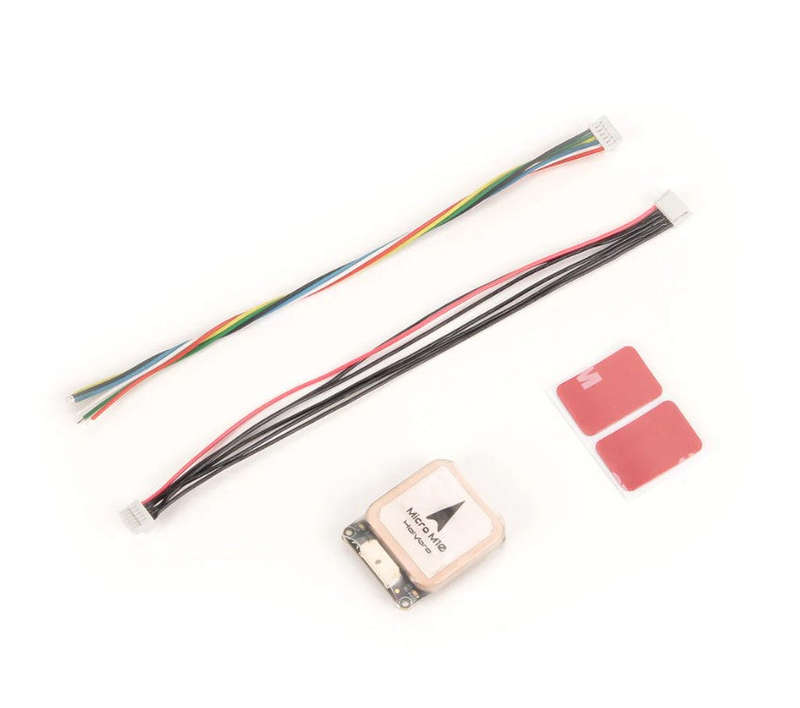

Package Includes:

1x Micro GPS module *1
1x JST GH 6 Position Connector 15 cm
1x JST-GH 6pin Colored Silicon Cable 15 cm
